iMac G5 20" Model A1076 PRAM Battery Replacement

Scritto Da: Andrew Bookholt
  • Commenti: 2
iMac G5 20" Model A1076 PRAM Battery Replacement

Difficoltà

Moderate

Passi

7

Tempo Necessario

Nessuna stima

Introduzione

Use this guide to replace your CR2032 PRAM battery.

  1. vWrrXC1PF4f4EOGg

    • Lay the iMac display-side down on a flat surface.

    • Loosen the three Phillips screws securing the rear panel to the iMac.

    • These screws are captive in the iMac. The center screw will stop turning after about 3.5 turns and the outer screws will stop turning after about 5.5 turns. Do not try to remove these screws from your iMac.

    Some models (with light sensor) have only the two outboard screws.

    Robert Huber -

  2. ZqkNk6XIHbtLZU1K
    ZqkNk6XIHbtLZU1K
    tQCIapnSNJOrtXIP

    • Lift the rear panel slightly near the bottom of the iMac.

    • Pull the rear panel toward yourself and remove it from the iMac.

  3. UkeiFbqXd3lVFRbc

    • Lift the AirPort card slightly by its plastic tab and pull it straight away from its socket.

    • During reinstallation, insert the AirPort card such that the antenna side is nearest the center of the logic board.

  4. Wm21i4wsiQA3KWQO

    • Insert the flat end of a spudger between the body of the AirPort card and its antenna connector.

    • Push the spudger away from the AirPort card to disconnect the AirPort antenna.

    • When reassembling your iMac, be sure to insert the AirPort card the way it was before disassembly.

    Antenna wire and connector no visable

    Joe Cardoza -

  5. KSjyGANgIBdxhpGR

    • Remove the two 5.5 mm T6 Torx screws securing the AirPort bracket to the logic board.

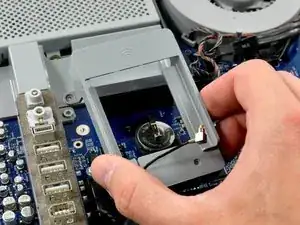

  6. aQUbVN2vcXEGtcZu
    aQUbVN2vcXEGtcZu

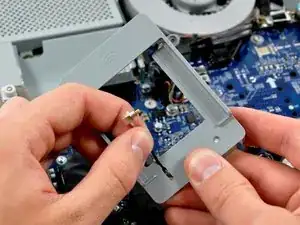

    WMSA6aNGW3rrPFQY

    • Slightly lift the AirPort bracket off the logic board.

    • De-route the AirPort antenna through the slot in the AirPort bracket.

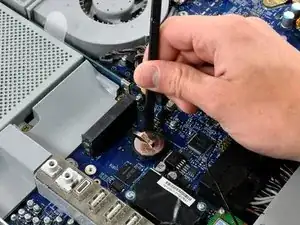

  7. spALSlmRWXxUEWqf

    • Use a spudger to slide the PRAM battery out from under its socket's metal clip.

    • Do not bend the metal clip up, as it is brittle and will break.

Conclusione

To reassemble your device, follow these instructions in reverse order.
