iMac Intel 21.5" EMC 2428 Audio Ports Replacement

Difficoltà

Moderate

Passi

2

Tempo Necessario

Nessuna stima

Introduzione

Prereq only.

  1. r2OqyCTSZnFLIDBb

    • Remove the two 5 mm T10 Torx screws securing the audio ports to the outer case.

  2. VeAs1ItLpjnbjAuk
    VeAs1ItLpjnbjAuk
    rGxarIDSdubQlidF

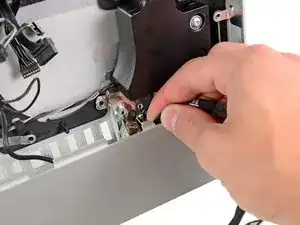

    • Press both audio ports down slightly, then lift the audio port assembly out of the outer case.

    • A pair of tweezers is helpful to put the ports back in place. First insert the lower tab into the bracket on the outer case, then fasten the screw to secure the jack to the outer case.

    • During reinstallation, it may be helpful to plug in a pair of headphones to each jack before tightening them down completely.

Conclusione

To reassemble your device, follow these instructions in reverse order.
