iPad 2 GSM Front Facing Camera Replacement

Scritto Da: Andrew Optimus Goldheart
  • Commenti: 0
iPad 2 GSM Front Facing Camera Replacement

Difficoltà

Moderate

Passi

4

Tempo Necessario

Nessuna stima

Introduzione

Internal guide for removing front facing camera after removing headphone jack assembly.

  1. 6DtZcWDV2JH2GvrQ

    • Remove the piece of tape highlighted in red.

    • Be careful not to damage the camera, microphone, or headphone jack ribbon cables as you remove the tape.

  2. quUMC6QCkBkGiIK6

    • Peel the front camera off the foam adhesive securing it to the rear panel.

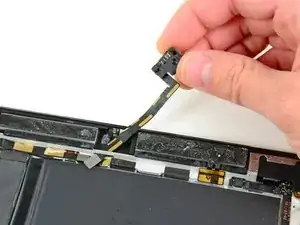

  3. rbC4NuZwZsspX3Xl

    • Pull the front facing camera cable out from the channel cut into the rear panel.

    • Remove the front facing camera from your iPad.

  4. lNIZpEsKmfEWuMKY
    lNIZpEsKmfEWuMKY
    ZufFlkPuyRfAichD

    • Use a plastic opening tool to disconnect the microphone cable connector.

    • Remove the headphone jack/SIM slot from the device.

Conclusione

To reassemble your device, follow these instructions in reverse order.
