iPhone 6s Battery Connection

Scritto Da: Sam Goldheart
  • Commenti: 4
iPhone 6s Battery Connection

Difficoltà

Moderate

Passi

11

Tempo Necessario

Nessuna stima

Introduzione

Prereq only; disconnect the battery before anything else.

  1. oIMUIA1wkCJPAS4U

    • Power off your iPhone before beginning disassembly.

    • Remove the two 3.4 mm Pentalobe screws surrounding the Lightning connector.

  2. 1SuOCEbsmlQIbcVJ

    • If you don't have an iSclack, use a single suction cup to lift the front panel:

    • Press a suction cup onto the screen, just above the home button.

    • Be sure the cup is pressed securely onto the screen to get a tight seal.

  3. jMXu22j5enCrDfjl
    jMXu22j5enCrDfjl
    G2dR2QMrrVPDWpBL
    rZVaSyu6xHXbXF6o

    • There is a notch on the underside of the display just above the headphone jack that is the safest place to begin prying the phone open.

    • Pull up on the suction cup to slightly separate the front panel assembly from the rear case.

    • Take your time and apply firm, constant force. The display assembly is a much tighter fit than most devices and is held down with adhesive.

    • Once a small gap has been opened, insert the flat end of a spudger above the headphone jack.

  4. ZxbJRYxPWiheUCEY
    ZxbJRYxPWiheUCEY
    aERMHJC4ETWHXByG

    • Twist the spudger to open the gap more and break it free from the adhesive.

    • Keep pulling up on the suction cup while twisting the spudger.

  5. Ettv2ODOhEQcZQDv
    Ettv2ODOhEQcZQDv
    b2asCy1huUCtvcBZ

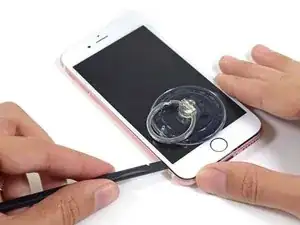

    • Use the edge of a spudger to slice through the adhesive on either side of the phone.

  6. heLIUnMCVXXLDNQX
    heLIUnMCVXXLDNQX
    iQPUU1XVuv2DlpLI

    • Use the edge of a spudger to slice through the adhesive on either side of the phone.

  7. qeRvWRSJIsnxAsvg
    qeRvWRSJIsnxAsvg
    IdApj1fNdHfXToco
    eopGjXMpn1avDMpT

    • Use the suction cup to open the display, breaking the last of the adhesive.

    • Don't open the display more than 90 degrees, as it is still connected at the top by three cables that may break if stretched.

  8. fp5qniCinQEjCQw4

    • Lean the display against something to keep it propped up while you're working on the phone.

    THESE INSTRUCTION / GUIDE IS NOT COMPLETE. I broke my phone and ended up with $250 in repairs at the local cell phone store at this step. You need to detach the display completely instead of prop it up against a box. It is very likely your cables will tear at this step if you don’t completely detach the display

    Christopher Kuhar -

  9. kAAqH5GPgNxhCCRH

    • Remove the following screws from the battery connector bracket:

    • One 3.0 mm Phillips #00 screw

    • One 2.3 mm Phillips #00 screw

  10. hC4eeXWQ25RveqhQ

    • Remove the metal battery connector bracket from the iPhone.

  11. jTNa5th2Lj2GSKUm
    jTNa5th2Lj2GSKUm
    jFU1hNH2GoMcAuvK
    1hrtORKgCLqTuUIq

    • Use the flat end of a spudger to disconnect the battery connector from the logic board.

    • Push the connector to the side to ensure it doesn't accidentally make contact and power on the phone while you're working on it.

Conclusione

To reassemble your device, follow these instructions in reverse order.
