Introduzione

The iRobot Braava 375t is a floor mopping and sweeping cleaning robot. The motherboard allows for everything in the device to be connected together. This article shows you how to replace the motherboard, which may be needed if the device doesn't turn on, even after replacing the battery.

  1. LmuIr1AxPRcBJXDc
    LmuIr1AxPRcBJXDc
    AJqnUghQhtlg2ypZ

    • Flip device over.

    • Remove the cleaning cloth compartment on the bottom to access screws.

  2. RRVDmtqWPerPFDTX

    • Use a Phillips #1 screwdriver to remove the four bottom cover screws.

    what's the size of the Philips screwdriver.

    Chris Yepez -

    #1 is the size

    Angel Ledezma -

    I mean like is it 1.6mm, the size of it

    Chris Yepez -

  3. ToHXAE2aBe1QDLRY

    • Flip the device back over and remove the shell by unplugging the wire that is holding the shell to the motherboard.

  4. gQKwdZyomMigLX2E

    • Disconnect the rest of the wires and remove all screws that are attached to the motherboard.

    • To remove the wires, disconnect the plastic pins in a similar fashion to the ones in the Battery Replacement guide.

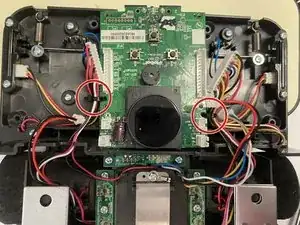

  5. GXChXrRfPdMOCp1T

    • Remove the zip ties holding the wires together using a sharp object or thin scissors.

    • If you do not have pliers or a wire cutter available, then you can use the heads of thin screwdrivers to wedge the zip ties enough to remove them.

    The circles make it much easier to know what needs to be done

    Chris Yepez -

Conclusione

To reassemble your device, follow these instructions in reverse order.
