Introduzione
This guide will teach you how to access, remove, and replace your iRobot Roomba 692 motherboard. If you are replacing the motherboard, ensure that you have the right motherboard for the Roomba 692 prior to removal.
Remember to review the iRobot Roomba 692 Troubleshooting Page before attempting any maintenance or repairs on your vacuum.
Strumenti
Ricambi
-
-
To access the iRobot Roomba 692 battery compartment, flip your iRobot Roomba 692 upside down.
-
Using the Phillips #0 screwdriver, remove the 4.0mm screw in the center of the yellow side brush and lift the part out.
-
-
-

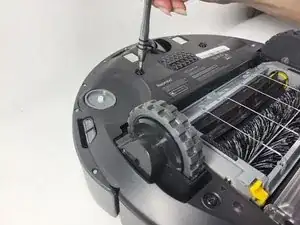

Use a Phillips #0 screwdriver to remove the four black 3.5 mm screws on the bottom panel.
-
Remove the bottom panel.
-
-
-
Using the black tabs on both short ends of the battery pack, gently pull the battery up and out of its slot.
-
-
-
Remove the ten 13.3 mm screws with a Phillips #00 screwdriver.
-
Pull off the outer and inner holders.
-
-
-
Use a Phillips #00 screwdriver to remove the two 7.4 mm screws that secure the sensor.
-
Once screws are removed slide out the sensor to free it from the slide bumper.
-
-
-
Wedge open the top with an opening tool.
-
Wedge the side tabs and middle tabs upward to remove the top lid.
-
-
-
Use a Phillips #00 screwdriver to unscrew and remove the following screws:
-
Ten 9.6 mm screws.
-
Four 9.4 mm screws.
-
One 9.5 mm screw.
-
-
-
Lift up the top cover to access the motherboard.
-
Use the Phillips #00 screwdriver to remove all five 7.6 mm screws that are holding it down.
-
-
-
Unplug the wiring by pulling it outward.
-
Once all plugs are off the motherboard it can be removed, repaired, or replaced.
-
To reassemble your device, follow these instructions in reverse order.
