The iRobot Roomba 890, Model #R890020, is an autonomous robotic vacuum cleaner designed to make cleaning more accessible and convenient. It is a cutting edge device with state of the art features that allow it to clean your home effectively and efficiently. In this guide, I will explain step by step how to remove the two motorized wheel modules from the Roomba and replace them. It will include step by step directions and pictures to show you how to restore the full functionality of your Roomba. There are no specific requirements or prerequisites needed to understand and implement the steps mentioned in this guide.
-
-

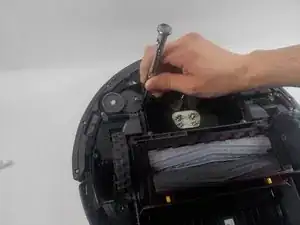

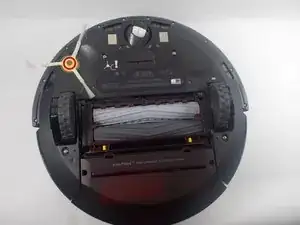

Use a Phillips #2 screwdriver to remove the 7.7 mm screw securing the side brush-head.
-

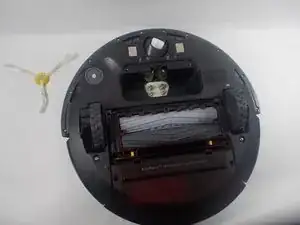

Remove the yellow brush head.
-
-
-

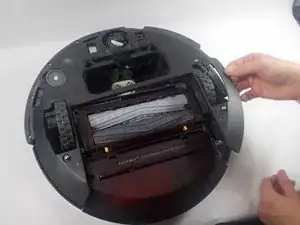

Place the Roomba with its bottom facing toward you.
-

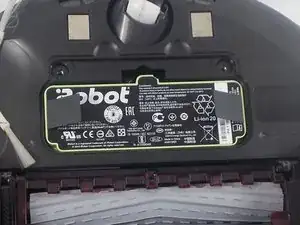

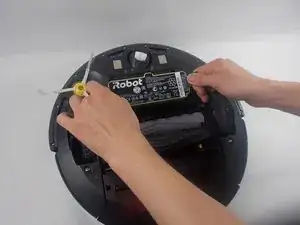

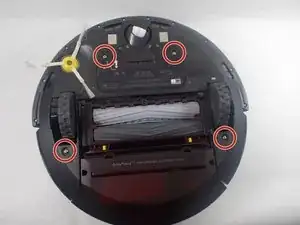

Use a Phillips #2 screwdriver to remove the four 11 mm screws.
-
-
-

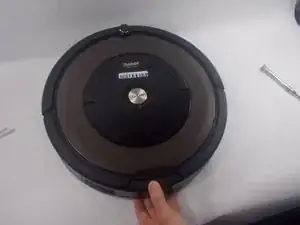

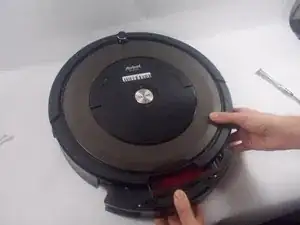

Remove the collection bin by pressing the release button on the top side of the Roomba and pulling straight out.
-
-
-

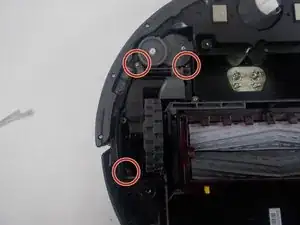

On the underside of the Roomba, use a Phillips #1 screwdriver to remove the three 15.5 mm screws.
-
To reassemble your device, follow these instructions in reverse order.
