iRobot Roomba e5 Wheels Replacement

Difficoltà

Easy

Passi

7

Tempo Necessario

5 - 10 minuti

Introduzione

The iRobot Roomba e5 is a vacuum used by many families to keep their floors clean and free from debris. It is a great tool if you have animals and constantly experience hair or dirt throughout your house. However, sometimes the wheels on the vacuum might need replacement due to typical wear and tear or damage done by a curious family pet.

  1. lg4XdI1nMHvSkDsA
    lg4XdI1nMHvSkDsA
    c1gAMVCtlSFREgZa
    23tL6WgGDFBYn2gH

    • Flip the iRobot upside down

    • locate the edge sweeping brush which has a screw in the center.

    • Loosen the screw using a Phillips #1 screwdriver.

  2. CpCmSI4PplNwHbCL

    • Lift the side brush up from the vacuum and keep it aside.

  3. VBQFmQTbjCBJpVNB
    VBQFmQTbjCBJpVNB
    kRGrOIoqB6VegRT1
    6Qkpqc4oUM4QqRZd

    • Loosen the five captive screws on the bottom of the Roomba using a Phillips #1 screwdriver.

  4. 4RowOFZMjry51ChW

    • Remove the bottom panel of the Roomba.

  5. HAXPZ2WDQt42Z4EK
    HAXPZ2WDQt42Z4EK
    d6xyTGSdCIE3PRJI
    ntf2ZXLjFEeaxVVe

    • Loosen the two captive screws closest to the wheel module using a Phillips #0 screwdriver.

  6. HjkZ6AExdgLPaAf6
    HjkZ6AExdgLPaAf6
    HuAW3IEbkXUW4tW1
    sQugoxV4uUJJQOsD

    • Pull the wheel module out of the Roomba, leaving an empty pocket.

    • Repeat Steps 5 and 6 for the opposite wheel.

  7. OhFmbwdLZwBmjdOx
    OhFmbwdLZwBmjdOx
    KyyEUXMsprQf61Bn
    hIjMI4DnfYEVAOma

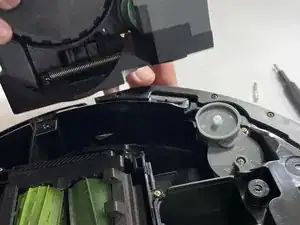

    • insert the new wheel module into the wheel pocket.

Conclusione

To reassemble your device, follow these instructions in reverse order.
