Slide the latch on the right to the unlocked position.
-
Slide the latch on the left to the unlocked position.
-
Remove the battery pack from the slot.
-
-
-
With your #0 Philips screwdriver remove the 2 screws from the bottom panel.
-
Now you can remove the bottom cover.
-
-
-

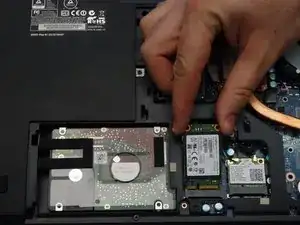

Using a Philips screwdriver #0, remove the screw securing the SSD.
-
Lift the end of the SSD slightly and pull it straight out to remove it.
-
Conclusione
To reassemble your device, follow these instructions in reverse order.
