Apple Cinema HD Display 30" Teardown

Scritto Da: tr121
Pubblicato: 05/11/19
  • Commenti: 12

Apple Cinema HD Display 30" Teardown

Pubblicato: 05/11/19

Smontaggio

Introduzione

Translated and re-uploaded this guide to the current iFixit repair guide catalog. Old untranslated guide can be found here.

  1. qnMAsl3qOw4yvB6d
    qnMAsl3qOw4yvB6d
    pRYgB1CEHMFZTmaD
    6nH4ZbsxcoZOHQ6S

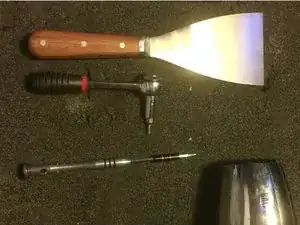

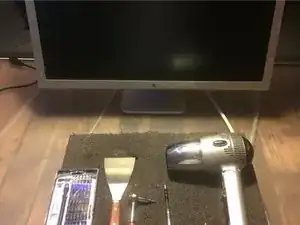

    • Gather your tools (look in the teardown description).

    • You do not specifically need the "64 Bit Driver Kit" I linked, you just need a general screwdriver kit with Torx screwdrivers/bits specifically.

    • The ratchet in the pictures included is not necessary.

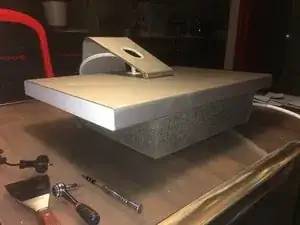

    • Lay the cinema display face down on a soft surface in order to not scratch or harm the LCD panel.

  2. Y1yLUjdX4YThiNpY
    Y1yLUjdX4YThiNpY
    dECepQUN2jaxFgJw
    INhbigIuP3LCDndy

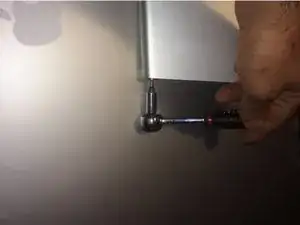

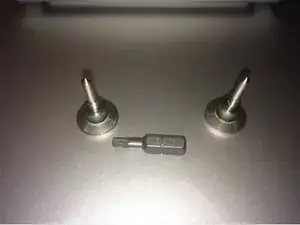

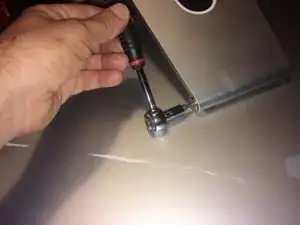

    • Unscrew the two screws on the sides of the stand where the stand connects to the display.

    • A ratchet may be useful here but isn't necessary.

    • Image 3: Screws remain.

  3. TFYiwdhh2yyxvUlB
    TFYiwdhh2yyxvUlB
    HyTGFrRLqJwHJqLY

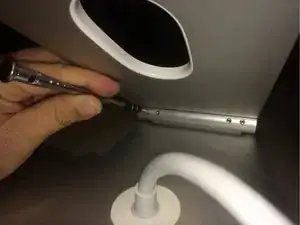

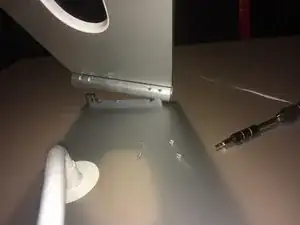

    • Remove the four Torx screws where the stand attaches to the cinema display.

    • Remove the stand.

    If you just remove the stand, you don’t have to remove four Torx screws.

    Just remove two Hex screws.

    Pan -

    Do you know the size to these four torx screws ?

    thank you :-)

    reesemuzik -

  4. bMGHcAvvHr5gtGyL
    bMGHcAvvHr5gtGyL
    4RxuXtePPuKLopXT
    KEceTGXZlsC5IgpF

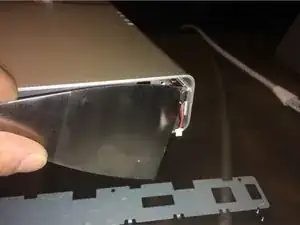

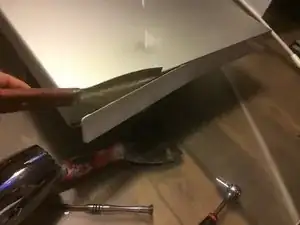

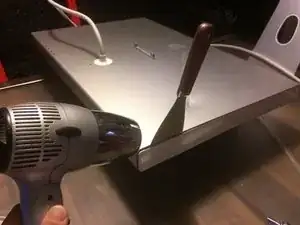

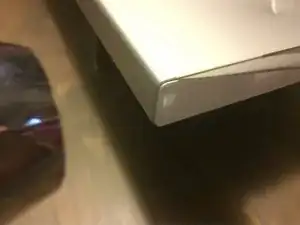

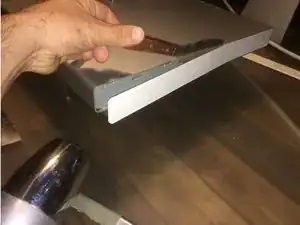

    • Wedge a putty knife into the plastic side piece, without trying to pry the plastic off yet!

    • Either use the heat gun to heat the plastic piece for about 30 seconds, or use the hair dryer for up to a minute.

    • Carefully use the putty knife to work the plastic side piece off the cinema display. Re-heat the plastic piece again if it doesn't come off with ease.

  5. jxTUGI1W1YPEOMsJ
    jxTUGI1W1YPEOMsJ
    1nVkQOVTMeFPc4Wo
    ViVvJOhUnURiCDmG

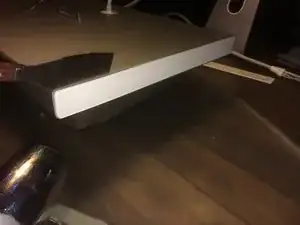

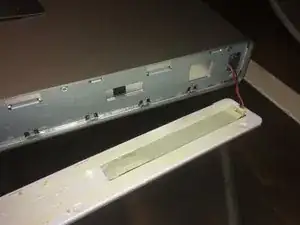

    • Repeat the steps in Step 4.

    • Work carefully when prying this specific side panel off. Be sure to NOT insert the putty knife near the buttons when removing the side panel with buttons (you risk severing the button board cable underneath the plastic piece).

    Hello, buttons are the same with the 20”?

    Thierry Grosjean -

    Yeah, should be the same deal. I haven’t personally torn apart a 20” display so take my words with a grain of salt though ;-)

    tr121 -

  6. QLyUOPx1PtVBVG6b
    QLyUOPx1PtVBVG6b
    axMUppudGJd2mcgw
    UfXbxNrflJ3qyjab

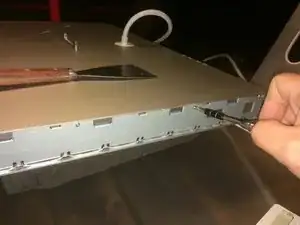

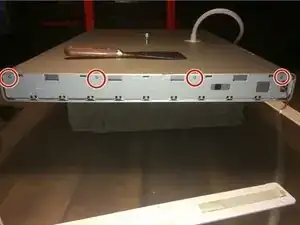

    • Remove the four Torx screws.

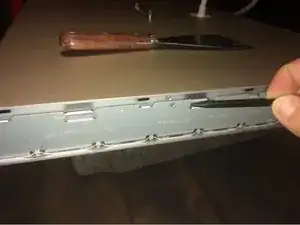

    • Use a pry tool to remove the secondary side panel.

  7. ZbgJAEDsRF2cpFrf
    ZbgJAEDsRF2cpFrf
    CTGR1YRn1nNPq3vK

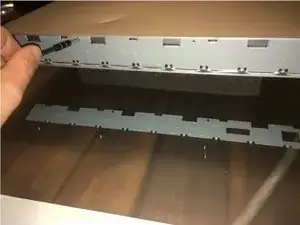

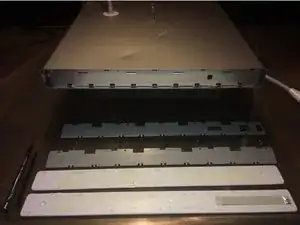

    • Repeat Step 6 for the left secondary side panel.

    • The screws should be the same length and in the same place as the right side panel.

  8. XqyhbFU3bKewMwi2
    XqyhbFU3bKewMwi2
    MronGAsWF4DqofCo
    bXfWKkZ3OKxdbXQE

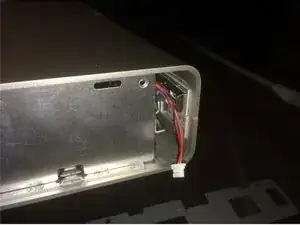

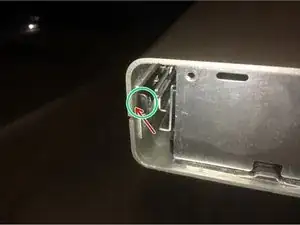

    • Wedge the putty knife in between the metal pieces (arrow in image).

    • Move the metal piece circled green towards the display panel to disengage the clip.

    • Repeat for the identical clip on the opposite side of the display.

  9. qbHvHVe5tvuPdaGX
    qbHvHVe5tvuPdaGX
    YqUjxwFjtUVdxEVD
    JnvDDD2BG2lprmcc

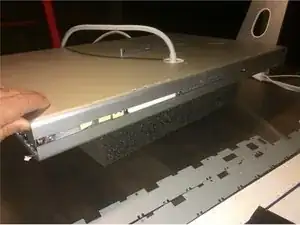

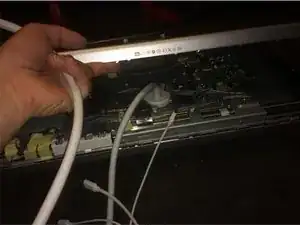

    • First image: Separate the metal enclosure at the bottom. Use prying tools to undo the retaining clips if needed.

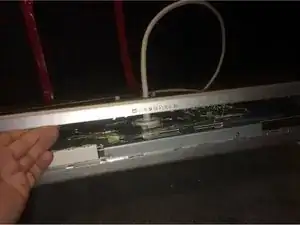

    • Second image: Thread the all-in-one cable out of the hole in the metal enclosure.

  10. QOiSLJVd2KdH1VY4
    QOiSLJVd2KdH1VY4
    4uKqCUFHqnVvnPVu
    BovnIL16fxdK5f3t

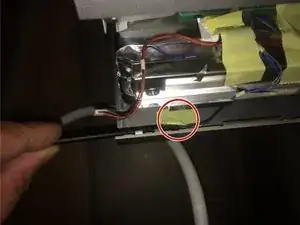

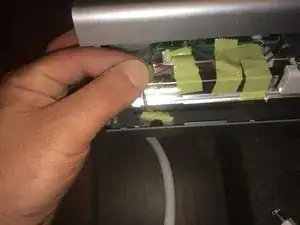

    • Peel up the tape (shown in the red circle). Then peel up the remaining component off the enclosure.

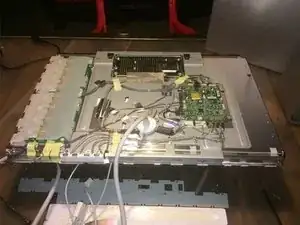

    • Not shown: Bend the enclosure apart just enough to slip the display panel assembly out of the enclosure.

    • Tip: Use a friend and have them hold the two parts of the enclosure apart while you lift the display panel assembly out of the enclosure.

  11. T2HLrQXWWhQJhgDm
    T2HLrQXWWhQJhgDm
    igSOItNdqvBWNMSk
    LqIwBZROHKCDJpYi

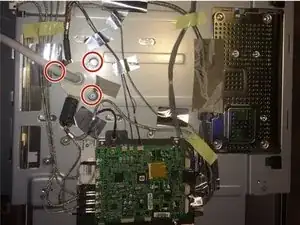

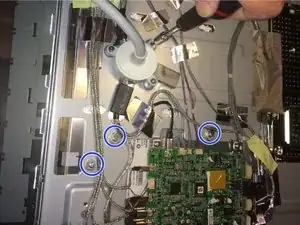

    • Remove 3 screws holding the all-in-one cable in place (shown in red circles).

    • Remove three more screws (shown in blue circles).

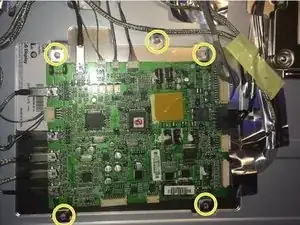

    • Remove 5 more screws holding the logic board intact (shown in yellow circles).
