First loosen the drag knob (No. 1), then remove spool assembly (No. 7). Continue with removing rotor nut (No. 11) in order to disengage the rotor (No. 12) itself from the body (No. 36).

Remove handle lock screw (No. 68) from body (No. 36), then remove handle assembly (No. 66) from body (No. 36).

Remove side cover screws A (No. 63), B (No. 64), C (No. 65) from side cover (No. 62). Remove the loosen drive gear (No. 60 from the body (No. 36).

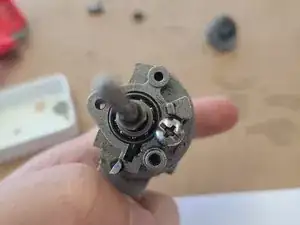

Remove the bearing retainer screw (No. 37) from the body (No. 36). Remove pinion gear (No 34) from the main shaft (No. 10)

Remove the oscillating slide cover screw (No. 49) from oscillating slider (No. 44). Remove the oscillating slide cover (No 48) alongside oscillating pawl.

Remove main shaft (No. 10) from body (No. 36). Remove anti-reverse pawl screw (No. 58) from body (No. 36). Remove anti- reverse pawl (No. 55) from body (No. 36)
