Honda Miimo HRM300 2013 Teardown

Pubblicato: 14/08/23

Smontaggio

Introduzione

Teardown of the Honda robot mower Miimo

Type number: HRM300 - EAE MAWF 1003989 2013

Reason: check if suitable for RTK GPS kind of projects like OpenMower

see also:

Honda Miimo HRM 300, 310, 500, 520 Service Tipps#2 Abdeckung Cover ab aufmontieren - YouTube

https://www.youtube.com/watch?v=zvxXIWPF...

HRM310 HRM520 (Miimo 310, 520) Setup Tutorial 1 - Overview - YouTube

https://www.youtube.com/watch?v=YS1D5IMA...

HRM310 HRM520 (Miimo 310, 520) Blades Replacement - YouTube

https://www.youtube.com/watch?v=9HY75Jsg...

Honda Miimo HRM 300, 310, 500, 520 Service Tipps#1 Lager Messerteller Räder - YouTube

https://www.youtube.com/watch?v=uuiH-xlk...

  1. TJxkuEFmxfYF3xyT
    TJxkuEFmxfYF3xyT
    hTNUoMfnHBj5MUOv
    qhVSjYcc4YSvprCs

    • turn upside down

    • loosen cover by bending clicky white stubs

  2. XpE6GDaGhsDAQdRZ
    XpE6GDaGhsDAQdRZ
    ZjnZBxT5ePYOuDYs
    wfKgj1GPge1IeYWw

    • disconnect cable

    • remove screws from suspension

  3. bOVmoXjOrsLZGIX1
    bOVmoXjOrsLZGIX1
    XODkoZfkXoKJfTbP
    ATDio5xfpCvRA2Dc

    • not necessary to remove

    • I cleaned 1 of 3

  4. gIgAisfPRHJLvZJB
    gIgAisfPRHJLvZJB
    BtD2g22ODSgtGgwV
    T6ZwQSKZ1hQiqekK

    • Insert wisdom here.

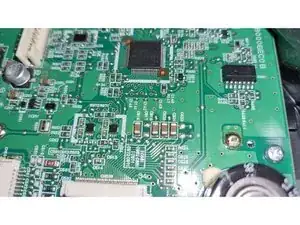

  5. a3TlKQqJKBpkjHMC
    a3TlKQqJKBpkjHMC
    15RQNNjYu5oP31yM
    rYwjROavAaEpEsi2

    • Insert wisdom here.

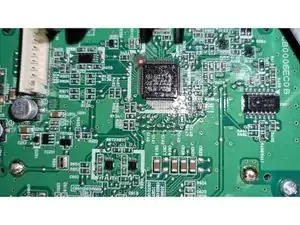

  6. upBWXVIBE41xDwBe
    upBWXVIBE41xDwBe
    Tp2glPLaaf5CNGGH
    TLpSemstpMjDJXXL

    • Insert wisdom here.

  7. uBS5frWEXGykABl1
    uBS5frWEXGykABl1
    DfjQ1N4CcI1r6aFg
    wQVJ1XLwJIqjALCB

    • Insert wisdom here.

  8. Hum6Gvgy2IaYuDFR
    Hum6Gvgy2IaYuDFR
    EJCZQKghI2oC5yNG
    qOa12pNNLCGZUnNm

    • Insert wisdom here.

  9. oRrG1OWF5mMdse5G
    oRrG1OWF5mMdse5G
    UpKyWJvxDDND2OXP
    I4lRnaJD44nG33Kh

    • Insert wisdom here.

  10. TJuuw6g6dJ1L4rXK
    TJuuw6g6dJ1L4rXK
    QNNVoOomIiAyGHZU
    dharFee2lhETKgPH

    • motor info 36000VP7004, LA034-040NNG01, 8 wires, SHINANOKENSI

    • datasheet not found, probably shinanokenshi is now aspina-group. https://www.aspina-group.com/en/contact/... catalog shows LA052-040 inner rotor brushless dc

    • probably brushless DC motor, 3x phase drive, 3x HAL feedback, 1x vcc, 1x gnd

  11. PTwhnIdKOFMV25C2
    PTwhnIdKOFMV25C2
    YOYP1FcP1YWON6BH
    mULyDAeDBPuGIdYS

    • 4 wires: red, black, white, blue(thin)

    • 1800mAh 22.2V 40Wh

    • lithium ion

    • from website: Original Artikel Nr.: 31520-VP7-C10 Ersatz für Artikel Nr.: 31520-VP7-751 passend für: HRM300, HRM310

  12. TUwlZmJmejIlpUK3
    TUwlZmJmejIlpUK3
    obL4eTKt1m1YlVFU
    JCdgIR2MKFiAvVuQ

    • use wrench 25 to hold shaft below the blade holding disk

  13. BTlhB5Ohie2rwaqJ
    BTlhB5Ohie2rwaqJ
    KfMAkhKvISlhfFOZ
    DVmrVInOWNOWhAjp

    • Insert wisdom here.

  14. QXGXjQVqNEJStnH1
    QXGXjQVqNEJStnH1
    WeLCJuyMAsFyITQw
    ChYjQZT1BAXLaGqc

    • Insert wisdom here.

  15. mgZ4W1uXS3M365Xg
    mgZ4W1uXS3M365Xg
    UTZIf6HKMqjhHwsI
    HWehDpoCCLcRw2LD

    • 8 wires, probably DC brushless motor

    • pin 1=U,2=V,3=W 1=HU,2=HV,3=HW,4=VCC, 5=GND

    • https://www.aspina-group.com/en/products... outer rotor brushless dc 24V 2.1A

    • marking DR-6236-249 brand shinanokenshi, probably now aspina-group

  16. 2FhxQF3TefWO3TuP

    • Insert wisdom here.

  17. O6ICMyrKqGBnEPp1
    O6ICMyrKqGBnEPp1
    o4VRXUAeoBUJ2JCa
    jX23uYwypOMSHwMT

    • Insert wisdom here.

  18. B5GhWStawIOhxe4b
    B5GhWStawIOhxe4b
    oftPHlcMkvbG3YYG
    FDFjulgfoAZrJUoQ

    • Insert wisdom here.

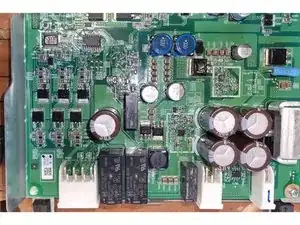

  19. ZTGecmjCXWCThBdM
    ZTGecmjCXWCThBdM
    KJ5JkDUcO1LneIK5
    dVOSRRQ4lVRS1VVx

    • Insert wisdom here.

  20. EN5qrSkXfX1GkibL
    EN5qrSkXfX1GkibL
    oXtvfWcBAkEJQRne
    HuM21oJeTQNWDmBo

    • Insert wisdom here.

  21. FELrPZKcTSLrtsIk
    FELrPZKcTSLrtsIk
    GW12gmjZsl3oWoSE
    AWO3hdSjOYJfjnNC

    • Insert wisdom here.

  22. jyu5KXAgEXdG3Ur1
    jyu5KXAgEXdG3Ur1
    YHSFNESRcYl6om5M

    • looks like dual layer PCB when holding near a light

  23. 5tNNWSJlKSj5MZbV
    5tNNWSJlKSj5MZbV
    cUu1T2OnTwgJguDI
    I3QTpIjGrFGZrP5N

    • silicon heat transfer to metal shield for probably the motor cutter driver

  24. SLXSRptLQALjvFeX
    SLXSRptLQALjvFeX
    c6YOJyOR3EnjTXQx
    gXlGecAb3fMsBuOV

    • Insert wisdom here.

  25. kjdItQjKvbmSI12K
    kjdItQjKvbmSI12K
    6X5YCs1VhGDv3Nbb

    • localized coating against water for longer lifetime

  26. PRdkHQesoZJa5PHF
    PRdkHQesoZJa5PHF
    UoB6iIxqJfEKtjWS
    Tiq2FDiHKemlrrJg

    • Insert wisdom here.

  27. 5uxRjpEYj3lYmCE2
    5uxRjpEYj3lYmCE2
    AS2wnUsfowTXOV13
    Oibl1LSRPulYJgrI

    • probably 4 layer PCB
