We disassembled this computer on October 15, 2008.
Strumenti
-


-

It looks like a MacBook Air from the top, but it's about 25% thicker than the thickest part of the Air, and almost 6 times thicker than the thinnest part.
 -

To be fair, though, it's about 12 percent thinner than its predecessor (0.95 in vs. 1.08 in) and 10 percent lighter (4.5 pounds vs. 5 pounds).

 -

 -


-

In the box:
 -

85-page user's manual
 -

Restore DVDs
 -

60-watt AC adapter
 -

AC adapter extension cable
 -

Cleaning cloth

 -

 -


-

There's a new Mini DisplayPort (fourth from the right), and a complete lack of a FireWire port.
 -

It may be hard to tell from the image, but there are now 8 lights on the battery indicator, and it's conveniently located where you can actually see it.

 -

 -


-

Opening the battery latch.
 -

For those hurt by the financial crisis, a coin is no longer required.

 -

 -


-

The hard drive is on the left, and the battery is on the right.
 -

The new MacBook uses the same hard drives as previous MacBook models.
 -

Shameless plug: If you're not ready for a new machine, you can upgrade the hard drive in any Apple laptop. We have free guides for most models that make hard drive replacements easy.

 -

 -


-

The battery is 45 watt-hours compared to 55 on the previous generation. It's also almost 20 percent lighter (302 g vs. 402 g).
 -

Still, Apple claims that you'll get 5 hours of wireless productivity (with the display brightness set to 50 percent).

 -

 -


-

Disconnecting the hard drive.
 -

To replace the hard drive, you'll need a T6 Torx screwdriver to transfer the hard drive mounting screws to the new drive.

 -

 -


-

The bottom panel is attached by 8 screws:
 -

One 3 mm Phillips in the top left corner.
 -

Four 3.5 mm Phillips along the bottom.
 -

Three 13.8 mm Phillips along the top.

 -

 -


-

Removing the bottom panel provides access to the RAM, optical drive, display hinge, fan, and logic board.
 -

It looks like the only really hard part to replace will be the upper case and keyboard.

 -

 -


-

The optical drive is held in by the following 4 screws:
 -

Three 2.5 mm Phillips.
 -

One 3.7 mm Phillips.

 -

 -


-

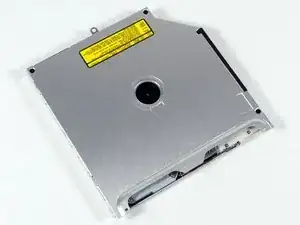

The optical drive, now SATA.
 -

The optical drive shows a manufacture date of October 2008. That drive sure got from the factory to us fast!

 -

 -


-

Removing the logic board.
 -

This may be the most beautiful laptop we've disassembled. Apple has a right to be proud of their engineers and manufacturing team.

 -

 -


-

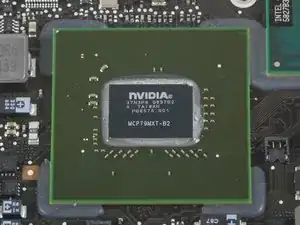

The top of the logic board. (Click on the image for a larger version.)
 -

Part numbers found thus far:
 -

Penryn Intel Core 2 Duo Mobile Processor P8600 5827B394 SLB4N AV80577P8600 2.40/3M/1066
 -

Cypress USB Controller CY7C638 33LFXC 0825 KOR 633013
 -

K0328 8F1 50C8 & K0305 8F5 5022
 -

F2117LP 20H V AF03370 0824JPN
 -

REALTEK RTL8251CA 86085S2 G831 TAIWAN
 -

Compare this to the previous MacBook logic board.

 -

 -


-

The bottom of the logic board.
 -

Part numbers found thus far:
 -

Cypress PSoC Mixed-Signal Array CY8C24794-24L FXI 0831 A 04 KOR CYP 637569
 -

Realtek HD Audio Codec ALC885 87J24A1 G83283
 -

TDK 6T213HF 0838 d
 -

ISL95O4 BHRZ H0832BB49
 -

APP001 928 3T 0829A
 -

SN 802043 TI 87K JR7C G4

 -

 -


-

Removing the right speaker and subwoofer.
 -

The new MacBook received a welcome speaker upgrade. In the second image, the old plastic MacBook's speakers are on the left, and the new MacBook's speakers are on the right.

 -

 -


-

The elegant new glass and Aluminum display assembly.
 -

Amazingly, the new display assembly weighs slightly less than the previous MacBook's plastic display assembly.

 -
