Microdigital TK 85 Teardown

Scritto Da: Vinicius Rodrigues Bellini
Pubblicato: 20/05/23
  • Commenti: 1

Microdigital TK 85 Teardown

Pubblicato: 20/05/23

Smontaggio

Introduzione

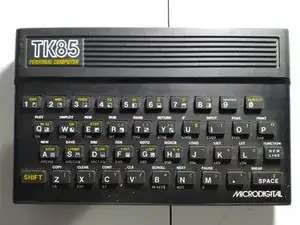

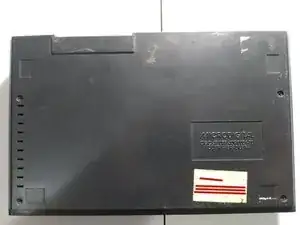

The TK85 was a ZX81 clone made by Microdigital Eletrônica, a computer company located in Brazil.

  1. Zj5sppLRbAEYPWT5
    Zj5sppLRbAEYPWT5
    lDtTXLlv4EBEuEc5
    CR1IERwiATDUaYCL

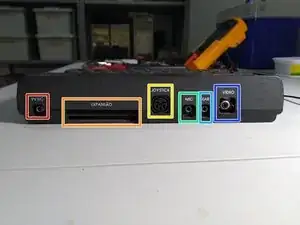

    • 9V DC = Nomo P2 power supply

    • Expansão = Expansion connector 2x23 edge pins.

    • Joystick = Joystick connector DIN-6-07M.

    • Mic = audio output for a datacorder.

    • Ear = Audio input for a datacorder.

    • Video = RF chanel 3 VHF output.

  2. KGsnvyNRTEItWlBN
    KGsnvyNRTEItWlBN
    lRSD5teRpIq5EGNq
    AKFO6jTGU4GE3GaZ

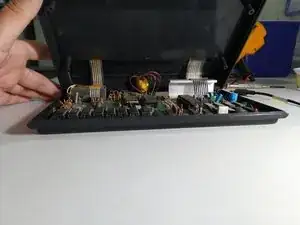

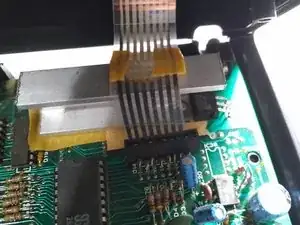

    • Open it carefully because of the 2 keyboard flat cables.

    • Those flat cables are very problematic

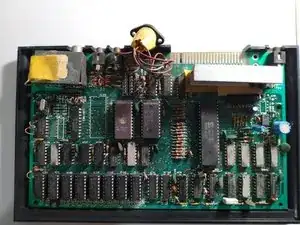

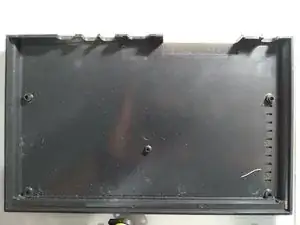

  3. c3eppD4RMUGhVmgY
    c3eppD4RMUGhVmgY
    GBPX1NyxZH4UAvAg

    • The upper part of the case is the keyboard, but the keyboard itself is not removable.

    • The lower part of the case is just a plastic part.

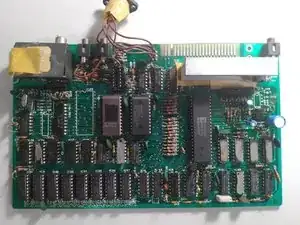

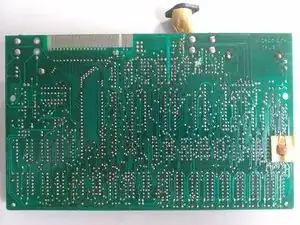

  4. ndjoZSSh2Z1PVWLk
    ndjoZSSh2Z1PVWLk
    3vJPctikXvSw2f2F

    • The circuit board is a very compact circuit board with dual layer traks.

  5. x53ymqFIURiCHaEW
    x53ymqFIURiCHaEW
    jrXQx2mBCMyL3Qn1

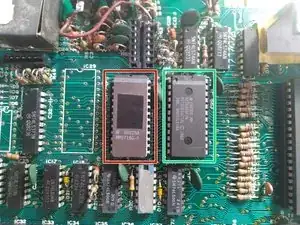

    • MM2716Q-5 => 16Kb Eprom

    • 52164KSF/N => 64kb Rom ? It is a custom Microdigital Rom compatible with the NMC2764.

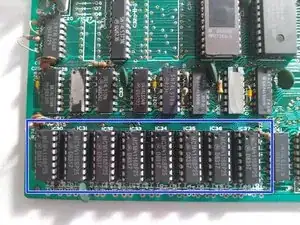

    • MCM4116BC-15 => 8 x 16,348 bits Ram = 16Kb Ram

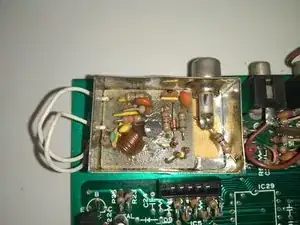

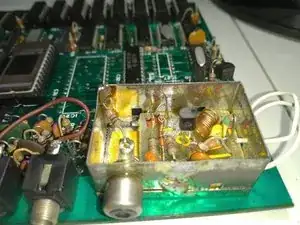

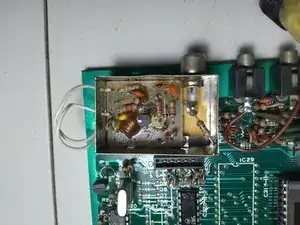

  6. HFypHUIJkrujYjin
    HFypHUIJkrujYjin
    FqZxnwuHWjZEWtPi
    mk4hLgllJ5PHdJOR

    • Just a RF Chanel 3 VHF modulator.

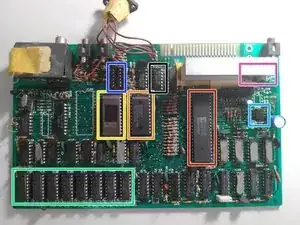

  7. jUBPhKyTEGB2Urbp
    jUBPhKyTEGB2Urbp
    B4U1wngl6fQcVNYU

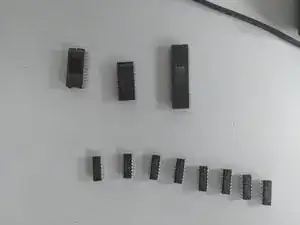

    • Microprocessor

    • Rom

    • Eprom

    • Ram

    • Oscilator 555. Works as an PWM 5 Volt power supply to the micropocessor.

    • Spare space for an audio integrated circuit. It was never implemented in producion in this model.

    • Voltage regulator 7805

    • Frequency divider = 6,5Mhz used for video and 3,25Mhz used for actual clock.
