Remove the battery cover.

Press down firmly with your thumb and slide the cover back.

Remove two Phillips #0 screws from the battery chamber.

Remove two Torx T6 screws from the battery chamber.

Gently pry off the back casing.

Remove the casing to expose the camera's components.

Gently pry open the front casing by working an opening tool along the entire seam.

Remove the front casing by gently lifting it from the phone.

Remove the keypad.

Remove the screws holding the screen in place.

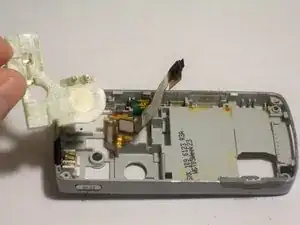

Gently lift the base of the keypad to remove it.

Gently pull up the green film, avoiding the joystick.

Remove the back cover from the phone.

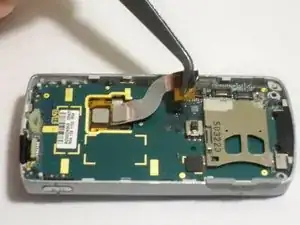

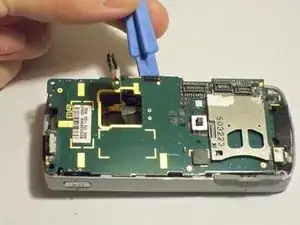

Gently slide the ribbon out of its connection.

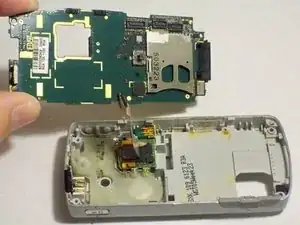

Lift the motherboard out of the phone.

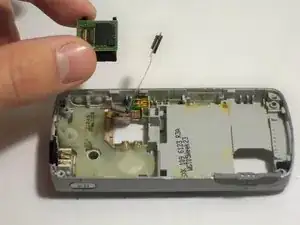

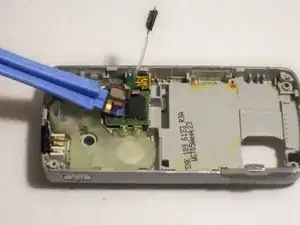

Pry off the microchip that is located below the ribbon.

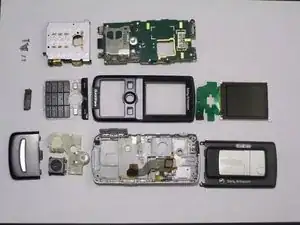

Lift out the plastic support to complete the teardown.
