Sony PlayStation SCPH-9002 Teardown

Pubblicato: 06/05/10

Smontaggio

Introduzione

I have a PlayStation 1, and i have decided to make a new teardown of it.

I'm spanish, so my english is a bit poor, and sorry for the mistakes made in this teardown.

Without further delay, we start.

  1. 1tpOXgolDyTvddXW
    1tpOXgolDyTvddXW
    TstZHk4L4tYfDAJb

    • Here's the PS1.

    • Turn the PS1 over and remove the six screws.

    • Note: part number +BV 3X14

    So far looking good. I'm commenting as you are making this teardown.

    Nicholas Ouimet -

  2. SnIKLLmMEJMGpNd6

    • Remove the top cover. It's very easy.

  3. JkHmufFFfmN1ECMK

    • Disconnect both CD-ROM connectors.

    • CD connector one and the socket it connects to.

    • CD connector two and the socket it connects to.

    • Note: part number DEVICE OPTICAL KSM-440AEM

  4. wxSaJqE3AiP6y3Ft
    wxSaJqE3AiP6y3Ft
    5XOuV4Pdbx4hOjPa

    • Remove the CD-ROM reader. You should be able to pull it out gently, although you may have to wiggle it around a bit to loosen the rubber holders.

  5. dvouP3mUofyHAN4P

    • Detach both cables. They go to the power supply and to the memory cards and controller connectors.

  6. boipHCXJAVwLPUW1

    • Remove the four screws and the metal cover.

  7. KXoeo2CeeJCGEOAL
    KXoeo2CeeJCGEOAL

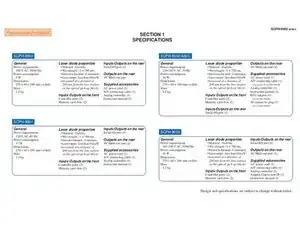

    cCwMkfyhqvnENplA

    • Now you have the motherboard!

    • And the power supply.

    • Remove the four screws from the motherboard and the power supply.

  8. pslrPuofK2dfEWmt

    • Once the screws are removed, remove the power supply.

  9. I5WJ5tULFv6sjmrb

    • Remove the motherboard, and both of the screws from the memory card/ controller connection mechanism.

  10. OI3LSnbORXNUuGS1

    • Now, you have all your PlayStation 1 parts!

    • Main Board

    • Lower Casing

    • EMI Shield

    • Power Supply

    • Disk Reader

    • Memory Card/ Controller Mechanism
