Battery
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Identification
The HP 2000 2d22DX is a very traditional laptop and can easily be confused with many other devices within the HP 2000 series. It has a polycarbonate plastic outer layer with a glossy, "black-licorice" finish. If your model number is not: HP 2000-2D22DX and, instead, it is something like: HP 2000-2DC22DX or HP 2000-2DE22DX, this is the correct device page. The color of the top cover for this laptop can be either black or grey.
Here is a list of some of the many model numbers that you may or may not have, but are identical to the laptop model number described above: (the model numbers can randomly vary)
- HP 2000-2b20NR
- HP 2000-2202TU
- HP 2000-2b19wm
- HP 2000-2D78Sr
- HP 2000-2
- HP 2000T-2
- HP 2000-427CL
- HP 2000Z-2
On Windows: To determine whether or not this is the appropriate device page, first check the original packaging of your device to see if the model number is correct. If the original packaging is not available to you, open the System Information window (Fn + Esc keys) and identify the device using the information in that window.
On Linux (Debian-Based Distributions): Open up the terminal as root and type the following: dmidecode -s system-serial-number and press Enter. The device serial number will appear. Then, go to the HP support site where you can type in your device serial number and copy and paste the serial number from the terminal into the box and press Enter. It will show up with either the same model number as the one described above, or it will show something similar. (Make sure that the package: dmidecode is installed on your Linux distribution before executing this command.)
Specifications
Retail Price - $199.99 - $449.99
Screen - 15.6'' LCD with a resolution of 1366 x 768
CPU and or Microprocessors (Central Processing Units and Microprocessors vary) - 2.5 GHz Dual Core Intel Core i3 (3rd Generation), Microprocessor: 2.4GHz Intel Pentium 2020M Processor, AMD E-Series E-300, Intel Core i3 2328M, Intel Pentium B950
GPU - Intel HD Graphics, AMD Radeon HD 6310, Intel HD Graphics (Ivy Bridge), Intel HD Graphics 2000, Intel HD Graphics 3000, up to Intel HD 4000 Graphics

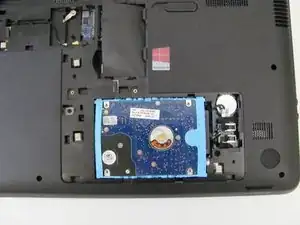

Hard Drive - 500GB - 750 GB HDD 5400 RPM (Disk Drives will vary. Some could be smaller than the ones listed.)
Minimum Memory - 4 GB DDR3 RAM
Maximum Memory - 8 GB DDR3 RAM

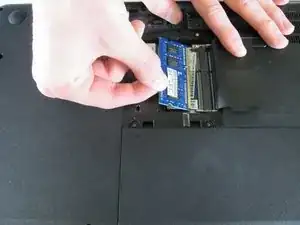

Memory Slots - 2 user accessible
I/O: (I/O ports will vary. Some may not be equip with all of them.)
3 USB 2.0
1 HDMI
1 VGA (15-pin)
1 RJ-45 (LAN)
1 Headphone-out
1 Microphone-in
1 Multi-Format Digital Media Card Reader (SD Card Reader)

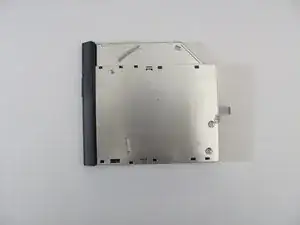

Multimedia Drive: SuperMulti DVD Burner

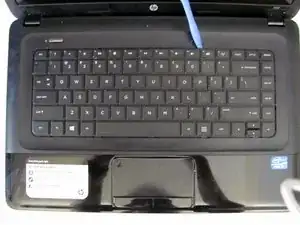

Keyboard - (English Only)
Weight: 5.39 lb
Sound: Altec Lansing Dual Speakers (Speakers will vary.)
Power - 65W AC adapter
Battery: 6-cell 47Whr 2.2 Ah lithium-ion battery
Dimensions - 1.20 in (H) 1.41 in (max H) x 14.80 in (W) x 9.72 in (D)
Software - Windows 8 (64-bit), Windows 8.1 (64-bit), Windows 10 (64-bit), and Linux
BIOS Information:
BIOS Vendor: Insyde
BIOS Version: F.45
BIOS Release Date: 12/19/2013
BIOS Revision: 15.69
The BIOS on this system cannot be re-flashed with a USB flash drive, you must use a USB BIOS programmer for such a task.
Motherboard Information:
Manufacturer: HP
Product Name: HP 1854 Motherboard
Version: 64.2A
Serial Number: PCUZC00WD4G195
Asset-Tag: Type 2 Board Asset-Tag
Troubleshooting
Don't see a guide you are looking for? Need more information on device problems? Visit the HP 2000 2d22DX Troubleshooting page for additional help and fixes.
