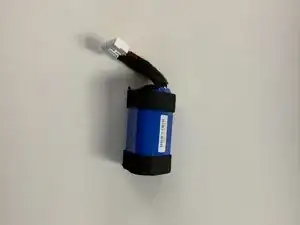

Battery
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Troubleshooting
For more information on common troubleshooting issues click here.
Background
The Philips TAS7505 speaker is a fairly new released product, which came out on September 17, 2021. It is made by the brand Philips which is known for creating wireless headphones, wireless earphones, TV/Home speakers, and especially small speakers.
Identification
The Philips TAS7505 can be identified by its gray color in the front in a curvature shape while the rest is covered in (find out the texture later). It has the name of the brand on the side of the Philips TAS7505 speaker spelled PHILIPS and has 5 white dots on top of the speaker which indicates the percentage the battery has left.
Technical Specification
Power
Battery type: Lithium Battery
Battery Capacity: 3.7V, 7500mAh
Charging time: 4.5 hrs
Input: 5V, 2A
Output: 5V, 2A
Power bank: Yes, integrated
Operating time on battery: Up to 20 hrs
Dimensions
Height: 3.4 inches
Width: 9.1 inches
Depth: 3.3 inches
Weight: 1.905lbs
Loudspeakers
Number of sound channels: 1
Driver configuration: Full range
Number of full-range drivers: 1
Full-range driver diameter: 3.54:inches
Sound
Output power (RMS): 30W
Output power (MAX): 60W
Sound System: Mono
Frequency response: 20 Hz - 20 kHz
Connectivity
Bluetooth version: 5.0
Bluetooth profiles: A2DP and AVRCP
Bluetooth range: Line of sight, 20m or 66ft
USB charging: 5V, 2A
DLNA Standard: No
Multiple speaker connection: Yes
Multiple speaker scenario: Stereo
Multiple speaker technology: TWS
Type of cable: USB charging cable (Type-C)
