HP Zbook 15u G2 WiFi Card Replacement

Written By: Matthew Robitaille
  • Comments: 0
HP Zbook 15u G2 WiFi Card Replacement

Difficulty

Easy

Steps

7

Time Required

5 - 10 minutes

Introduction

A faulty Wi-Fi card can cause loss of network connection either completely or intermittently which can make it difficult to connect to the internet. This guide shows how to replace the Wi-Fi card module in the The HP Zbook 15u G2.

  1. IafQbTqGYCwZijhD

    • Turn the HP Zbook over and flip the switch at the top so the red part is visible.

  2. w2wewQS5MXamGLqh

    • Pull the back cover down to remove it.

  3. jEM3KvLuY6mjtrt5
    jEM3KvLuY6mjtrt5
    neVaSM5RAbWHmZsD

    • Flip the two switches on the top of the battery so the red is visible.

  4. C21nLhMwZIICPluI

    • Lift the plastic tab at the top of the battery up to lift the battery up and out of the device

  5. s3u2icYmZxTVnWPQ

    • Use a pair of tweezers or carefully use your fingers to lift and remove the two wires attached to the Wi-Fi card.

  6. DEUjqMgaO3jrxeHU

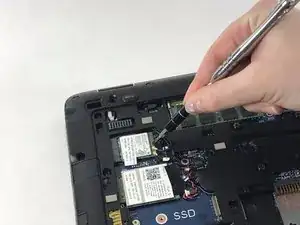

    • Use a Phillips #0 screwdriver to remove the M2x3mm screw that secures the Wi-Fi card.

  7. YJdavxBp6AvN1kCB

    • Gently lift the Wi-Fi card up and pull it out. Then, place the new Wi-Fi card into the slot where the old one was.

Conclusion

To reassemble your device, follow these instructions in reverse order.
