Guide Sostituzione

Battery

Battery

 en

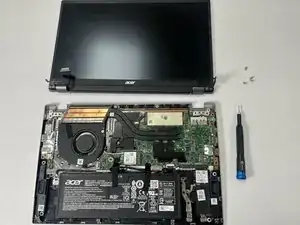

Display Assembly

Display Assembly

 en
Fan

Fan

 en
Lower Case

Lower Case

 en

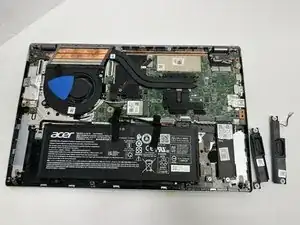

Speakers

Speakers

 en
Trackpad

Trackpad

 en

Strumenti

Questi sono alcuni strumenti di uso comune usati per lavorare su questo dispositivo. Potrebbe non essere necessario ogni strumento per ogni procedura.

Troubleshooting

If you're experiencing any issues with your Acer Swift X N20C12, use this link for troubleshooting guidelines.

Background

  • The Acer Swift X has a brushed metallic finish, the metallic lid provides a sturdy hinge, with plastic-like feel.
  • The Swift X's 16:9 FHD IPS display has a screen-to-body ratio of 85.73% and 100% sRGB. Acer's color and visual care technologies are now included in this device as well .
  • A 512GB NVMe hard drive and 8GB of RAM surround the AMD Ryzen 5 Mobile 5500U processor, which has six cores and twelve threads running at 2.1-4GHz.
  • For connectivity resources, it includes Wi-Fi 6 and Bluetooth 5.2 with enhanced signal quality. Including two Type-A ports, HDMI 2.0, and a Type-C connection for faster file sharing.
  • The Swift X is 18mm thick and 3 pounds. Small in size, the power brick (and cord) add an additional 330g to this weight. It may last up to 12 hours with light use.

Identification

  • The Acer Swift X has a metallic brushed body, includes some notorious copper heat pipes dual D6 facing the screen to maximize cooling efficiency in the system. It comes in silver and steel gray colors. A fingerprint reader is located by the lower right corner of the keyboard. Also, an AMD Ryzen stamp, along with GeForce RTX & Alexa virtual assistant stickers, are placed on the palm rest. This device only comes in silver, and it measures 17.90 mm height, and 228.1 mm in depth, and it weights 3.3 lbs. The model information is visible on the bottom side of the device in a sticker.

Technical Specifications

  • Operating System
    • Operating System: Windows 11 Home
    • Operating System Architecture: 64-bit
  • Processor & Chipset
    • Processor Type: Core™ i7
    • Processor Model: 13700H
    • Processor Speed: 2.40 GHz
    • Processor Speed (turbo): 5 GHz
  • Memory
    • Standard Memory: 16 GB
    • Memory Card Reader: Yes
    • Memory Card Supported: microSD
  • Storage
    • Optical Drive Type: No
  • Display & Graphics
    • Display Screen: Type OLED
    • Screen Mode: WQXGA+
    • Screen Resolution: 2880 x 1800
    • Graphics Controller Model: GeForce® RTX™ 3050
    • Graphics Memory Capacity: 6 GB
    • Graphics Memory Technology: GDDR6
    • Graphics Memory Accessibility: Dedicated
  • Audio
    • Speakers Yes
  • Network & Communication
    • Wireless LAN: Yes
    • Wireless LAN Manufacturer: Killer
    • Wireless LAN Model: Wireless Wi-Fi 6E 1675i
    • Bluetooth: Yes
    • Bluetooth Standard: Bluetooth 5.1 or above
  • Built-in Devices
    • Microphone: Yes
    • Fingerprint Reader: Yes
  • Interfaces/Ports
    • HDMI: Yes
    • Total Number of USB Ports: 3
  • Input Devices
    • Pointing Device Type: Touchpad
    • Keyboard Included: Yes
    • Keyboard Backlight: Yes
  • Battery Information
    • Number of Cells: 4-cell
    • Battery Chemistry: Lithium Ion (Li-Ion)
  • Power Description
    • Maximum Power Supply Wattage: 100 W
  • Physical Characteristics
    • Height: 17.90 mm
    • Depth: 228.1 mm
    • Weight (Approximate): 1.50 kg
  • Miscellaneous
    • Package Contents:
      • Swift X 14 SFX14-71G-77HD Notebook
      • Lithium Ion Battery
      • AC Adapter
  • Security Features
    • Firmware Trusted Platform Module (TPM) solution
    • Kensington lock slot
    • BIOS Passwords:
      • User
      • Supervisor
  • Warranty
    • Warranty: 1 Year Pickup & Return
