Canon CanoScan N670U

The Canon CanoScan N670U is a scanner meant to be simple yet efficient. The scanner is designed to be compact and easy to set up, using only a single USB cable as its power source and three buttons to scan, copy, and e-mail respectively. The Canon CanoScan N670U hasn't been updated to operate on some of the more modern operating systems today and is considered to be outdated due to a lack of support for updating its drivers. However, the scanner remains as a budget-friendly and useful flatbed scanner for users of older operating systems such as Windows XP.

The way to identify this device among its N676U and N1240U counterparts is its dark violet top.

Type: Flatbed scanner

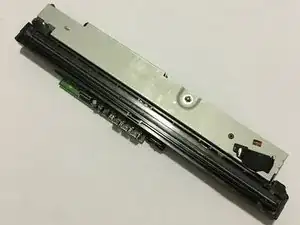

Scanner element: CIS

Light source: 3-color LED

Optical resolution: 600 x 1200 dpi

Selectable resolution: 25-9600 dpi

Scanning bit depth:

• Color: 16 bit input / 8 bit output for each color
• Grayscale: 16 bit input / 8 bit output

Scanning speed:

• Color: 16 msec / line (600 dpi)
• Grayscale : 5.3 msec / line (600 dpi)
• Black and white: 5.3 msec / line (600 dpi)

Preview speed: Apx. 15 sec

Interface: USB 1.1

Maximum document size: A4 / Letter: 216 x 297 mm (8.5 x 11.7 in)

Scanner buttons: Scan, copy, and e-mail

Operation range:

• Temperature: 5^o - 35^o C (41^o to 95^o F)
• Humidity: 10% - 90% RH (relative humidity)

Power supply: USB port

Power consumption:

• In-operation: 2.5 watts maximum
• Standby: 1.25 watts

Maximum exterior dimensions: 256 x 383 x 34 mm (10.1 x 10.5 x 1.3 in)

Weight: Apx 1.5 kg (3.3 lbs)
