Background

Announced and released on May 7, 2019, the Pixel 3a XL is part of a budget line of Google’s third-generation Pixel phones.

Identification

It features the same camera as this generation’s flagships but has a polycarbonate back, larger display bezels, and a lower-powered processor.

  • Size: 160.1 x 76.1 x 8.2 mm (6.3 x 3.0 x 0.3 inches)
  • Weight: 167 g (5.9 oz)

Technical Specifications

CPU: Qualcomm Snapdragon 670

Memory: 4 GB LPDDR4x RAM

Storage: 64 GB

Display:

  • 6.0 inches diagonal
  • FHD+ (2160 x 1080) OLED at 402 ppi

Cameras:

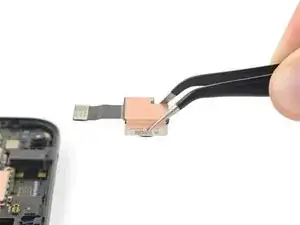

  • Main Camera: 12.2 megapixel, f/1.8 aperture, 1.4μm pixels, autofocus with dual pixel phase detection AF, OIS
  • Front Camera:
    • 8 megapixel, f/2.0 aperture, fixed focus

Ports and Connectivity:

  • Wi-Fi 2.4 GHz + 5 GHz 802.11 a/b/g/n/ac
  • Bluetooth 5.0 + LE
  • NFC
  • GPS + GLONASS
  • Supports up to CAT 11 (600 Mbps DL / 75 Mbps UL), 3xCA, DL, 4x2/2x2 MIMO
  • USB Type-C USB 2.0
  • Single Nano SIM or eSIM

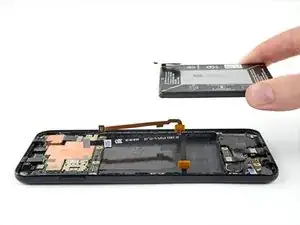

Battery: 3,700 mAh battery

Dimensions:

  • Size: 160.1 x 76.1 x 8.2 mm (6.3 x 3.0 x 0.3 inches)
  • Weight: 167 g (5.9 oz)

Additional Information
