Use this guide to replace a defective battery LED indicator from your Durofix RV332. A new battery LED is need to complete this repair.
Ricambi
-
-
Remove the six 13 mm case screws with a #0 Phillips screwdriver from the side of the power screwdriver.
-
-
-

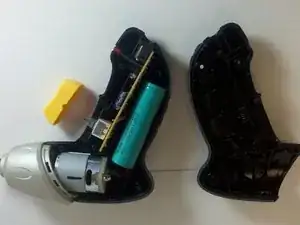

Using a plastic opening tool, separate the case in two to expose the internals of the cordless screwdriver.
-
-
-
Remove printed circuit board, LED, battery, and motor assembly from the screwdriver casing.
-

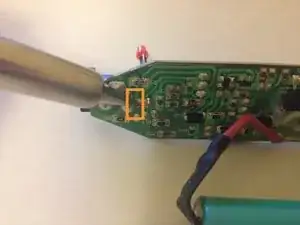

Use a soldering iron to melt the solder from the LED's two pins on the printed circuit board.
-
Remove the LED from the circuit board while the solder is still melted.
-
-
-
Place the positive leg of the new LED through the positive hole in the printed circuit board and solder it into place.
-
Place the negative leg of the LED through the negative hold in the printed circuit board and solder it into place.
-
To reassemble your device, follow these instructions in reverse order.
