Fairphone 1 Display Assembly Replacement

Scritto Da: Andrew Optimus Goldheart

Commenti: 64

Fairphone 1 Display Assembly Replacement

Difficoltà

Moderate

Passi

Tempo Necessario

Nessuna stima

Introduzione

Use this guide to replace the display assembly, including the LCD screen, front glass and digitizer, on your Fairphone.

Strumenti

Ricambi

Fairphone Display Assembly

Passo 1

There is a small indentation in the side of the phone near the bottom of the back cover.
With the indentation as leverage, use your fingernail to pry the bottom portion of the back cover from the phone.

Passo 2

Slide the back cover down and remove it from the phone.

Passo 3

There is a small indentation in the back of the phone just below the battery.
Use a fingernail in this indentation to push the battery toward the top of the phone
Pull the battery out away from the phone.

Passo 5

Use your finger to slide the SIM card straight down out of its tray.
Remove the SIM card from your Fairphone.
Repeat this procedure if you have a second SIM card.
Be sure to remove all SIM cards before servicing your phone.

Passo 6

If you have a microSD card, use your finger to slide it straight out of its slot.
Remove the microSD card from your phone.

Passo 7

Remove the five 3.9 mm Phillips #000 screws securing the midframe to the display assembly.

The three upper -next to the SIM blocks- screws are a bit longer that the three others. It is important to keep them like this because if not, they will not tight to the whole.

Jaime Bosque Torrecilla - 16/06/15

There are only 5 screws. I see none longer than others.

Viktor Steiner - 31/01/16

You're right, I've just done it and it's true. Thanks!

Aiala - 20/03/16

Passo 8

The midframe is secured to the display assembly by several small plastic clips.
Use an opening pick to carefully pry the midframe away from the display assembly.
Start just below the volume rocker and work your way down toward the bottom of the phone, freeing the plastic clips along the side.

No need to be TOO careful. Just remove the whole thing, no stress.

clem - 23/06/14

Some stupid person put a sticker on the fifth screw. If you can not find the fifth screw, check if there are any BLACK (yes, black) stickers on top of them. Also, which 'designer' made the first design choice for plastic clips? I WILL FIND YOU. AND KILL YOU. *!&*^#% stupidest way to affirm or secure something!

maggelo - 31/10/15

It must be done very carefully: I'd broken both white pieces. Hope has no consequences ...

Aiala - 20/03/16

You also can start from the interior (white pieces all around batterie place)

remy.carl.fr - 05/05/17

Passo 9

Carefully round the corner, separating the midframe from the display assembly.

Passo 10

After rounding the next corner, the midframe should be free along the bottom and the sides.

Passo 11

Run the opening pick and pry along the top seam.
To avoid bending or damaging the opening picks, do not pry near to the power switch, USB port, or headphone jack.

Passo 12

Separate any remaining clips and remove the midframe from the phone.

Passo 13

Use tweezers to remove the volume rocker and power buttons from the display assembly.
During reassembly make sure the orientation of the buttons is correct. The rubber backings must fit into the channels in the assembly.

Passo 14

Use the flat end of a spudger to disconnect the antenna cable connector.
Make sure to only disconnect the connector from its socket, and not the entire socket from the board.

If you´re replacing the screen you don´t need to disconnect the antenna cable. You can take apart the motherboard, the doughterboard and tha cable together.

Pacarlas -

Well, I actually broke the socket. Does anyone know if it can be fixed?

thanks

Yoel Schouten Moral - 25/08/14

I broke it too, what to do now?

jakob - 12/06/15

What is the thing left of the camera, below the CC \n TC logo printed on the board?

Luther Blisset - 10/09/14

Yep, no need to remove the antenna connectors if you're replacing the display.

Smorgasbord - 24/03/15

Passo 15

Use tweezers to remove the adhesive foam tape from the top of the digitizer cable ZIF socket.

no adhesive foam on my fairphone

Sebastian Chica - 09/06/16

Thank you so much for this amazing tutorial! it works and looks great again!!!

Sebastian Chica - 09/06/16

foam tape is black on mine

Ron Ottervanger - 22/01/17

Passo 16

Use the tip of a spudger to flip open the tab on the digitizer ZIF connector.
Use tweezers to pull the digitizer cable away from its socket on the motherboard.

Passo 17

Remove the three 2.5 mm Phillips #000 screws securing the motherboard to the display assembly.

Passo 18

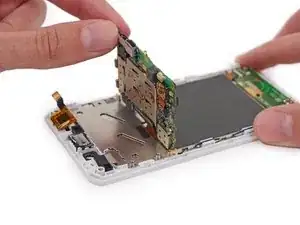

Do not try to remove the motherboard just yet, as it is still connected to the display assembly by the display data cable.
Gently lift the top end of the motherboard up to expose the display data cable.
The rear-facing camera may be adhered to the display assembly. Try to pry it and the motherboard up together.

I had to use a spudger to take off the camera. Not an easy job since it was glued quite well.

Jan Boonen - 25/10/14

"mild" adhesive?? Camera is glued pretty well!

AJ Molenaar - 27/10/14

First: English isn't my mothertongue, so please excuse mistakes.

I also lost the camera. But it wasn't a problem. At the end of step 28 it was quiet easier to pry the camera without being careful about the motherboard. Only the reverse was done at step 18 again. I put the camera inside the hole and closed the connector for the data. After that I connected the motherboard again with the display and put all together back. So everything was at its right place.

At the End everything was perfect. I'm as pleased as punch!

Ulrike Jasmin Schad - 21/01/15

This was probably the toughest part. It took it's time to remove the camera from the old assembly. As mentioned in earlier comments, it was glued rather well. Be really careful since there is a data cable connecting the camera to the motherboard, and you won't be able to see it that easily.

Smorgasbord - 24/03/15

I took off the camera with the tweezers and thus I had no problem to remove it.

Werner Lauckner - 09/06/15

Possible camera fix after damage while extracting: I too had a well stuck camera, and I damaged the camera while separating it from its small metal plate. The tape holding the plate to the chassis was less strong than the tape affixing the camera to the small plate. The camera seems to consist of a sensor (housed in the silver cube), and its lens (the black plastic bit that separated itself from the cube). The lens is still attached to the sensor by four springy bits of wire which I'm guessing control a magnet which causes the lens to move a bit for focusing. I'm guessing that one of those wires have been damaged and therefor the lens is hanging in its most relaxed state. If you poke the lens carefully with the tip of the spudger you will see that it is kind of swimming in there.

Daniel - 05/01/16

The effect of this is that the lens is stuck in macro mode. Things that are very close will be in focus. A workaround to get the lens to have a fixed focus on around 1 meter to infinity, is to get the lens to push back as deep in the direction of the sensor as possible. This could be accomplished with crazy glue, or similar. I found a rubber washer small enough to not block the lens, which forces it back when the midframe is reattached.

Daniel - 05/01/16

You can actually fix the focus more towards infinity by screwing the inner lens part clockwise.

Samuli Kaipiainen - 06/09/16

Lifting the motherboard without breaking the camera module is the most critical step.

I used tweezers to loosen the camera module from the display assembly.

It worked best for me to lift the motherboard slightly (!), so I could see the base of the camera module, and then carefully separate the camera from the metal part that it is glued to.

Have a good lock at the pictures, so you know where the camera module ends and you don't end up breaking the camera module into pieces, instead of taking it off the base.

I had to push the camera module connector back in again, as it came loose slightly.

Everything worked out fine in the end.

Dino - 17/01/16

Passo 19

Use the tip of a spudger to disconnect the display data cable from the back of the motherboard.

In this step I found the rear camera unit glued to the display part. It was easy to take it apart and connect it again to the motherboard but at te first moment I was scared.

Pacarlas -

Yeah, please make sure you don't remove the socket, cause I did it, and after that it's a pain in the !@# to put back. If unfortunatly it happens, remember that the two points on each side of the sockets should be align vertically (from the phone point of view) and the line to the side closer to the phone side.

clem - 23/06/14

In my case the camera also stayed glued to the display part. In fact that was no problem - just leave it connected to its metal pad and take both off together (in my case the metal pad was only midly adhesive to the display part). When reassembling just take off the metal pad from the new display and put in place the old metal pad with the camera on.

eml - 11/01/15

It was a good hint to take out the camera and the metal pad together. It worked perfectly well and in the end it was much easier to separate the camera from the old metal pad and to glue the camera on the new pad.

Mrs Adams - 25/01/15

when re-connecting the (new) screen to the motherboard, you have to watch out to carefully re-connect the display datacable. the two parts fit neetly together and is has to do a little "click"-feeling when the connection was succesful.

ksend - 23/01/17

I reconnected the screen to the motherboard by cutting a small rectangle of cardboard and slide it under the display connector to lift it a little bit. Then you can lay down the mainboard connector on top of it and press it down. It will click in place. Next, slightly lift the topside of the mainboard to remove the cardboard with a pair of tweezers.

jeroen.hilgers - 14/02/17

Passo 20

Remove the motherboard from the display assembly.

My camera stayed glued to the metal frame. I had to take it of seperately.

Tijs Dekker - 26/08/14

Passo 21

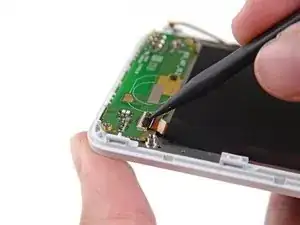

Use the flat end of a spudger to disconnect the antenna cable connector.
Be careful to pry on the connector, not the socket.

Passo 22

Use the tip of a spudger to flip open the tab on the daughterboard data cable ZIF connector.
Use tweezers to pull the daughterboard data cable away from its socket.

Passo 23

Remove the following screws securing the Wi-Fi daughterboard to the display assembly:
Two 2.5 mm Phillips #000 screws
One 1.6 mm Phillips #000 screw

No "1.6 mm Phillips #000 screw" in my phone

Erik Buelinckx - 19/04/14

No One 1.6 mm Phillips #000 screw in Ynte's Fairphone.

Inge - 08/05/14

no one in mine either

Koen Go - 18/05/14

Not in mine either...

Tijs Dekker - 26/08/14

My Fairphone is also lacking the orange marked screw.

Jan Boonen - 25/10/14

Missing in mine too!

elizabethnorseng - 19/06/15

missing screw, too.

[deleted] - 25/06/15

Passo 24

The Wi-Fi antenna daughterboard is held to the front assembly by mild adhesive.
Use tweezers to gently pry the board up and remove it from the phone.

Passo 25

The earpiece speaker is held to the back of the display assembly with some mild adhesive.
Use the tip of a spudger to gently pry the speaker up from the display assembly.
Remove the speaker.

The earpiece speaker may have a 'rubber ring' glued to the front side. The new display assembly will probably have one of these already installed in the earpiece socket, covered with a protective orange ring. I peeled the old 'rubber ring' from the old earpiece, and then put the earpiece into the new display assembly. Old ring went back into the old display. But I guess you could put the new ring into the old assembly, and then you don't have to peel the earpiece apart...

Tim Sparks - 09/11/14

I somehow managed to break the speaker in this step (It was my first repair ever) .. Got a new one for less than 2€ at the fairphone parts shop, replaced it and it works now.

Stefan Tzeggai - 10/05/15

Passo 26

Remove the antenna interconnect cable from the display assembly.
The three sections of the cable with exposed metal fit into the grounding clips on the side of the display assembly.

In this step you need to replace the earpiece speaker too, follow this guide: Fairphone 1 Display Assembly Replacement

Pacarlas -

Don't forget to put two little rubber parts over the proximity sensor and the notification LED on the new display, otherwise the proximity sensor will bug out later. They are visible in the picture for Step 18.

http://i.imgur.com/0KB58wS.jpg

vfehrmann -

Sadly I lost the small rubber part in front of the proximity/light sensor.

Any idea where i can get it, because I have now the bug, everytime a call comes in, the display will turn and stay black until the call is ended :-(

Thanks!

pappou - 27/08/15

Which parts are the proximity sensor and the notification LED?

Andrew Fleming - 23/10/16

Indeed, the rubber parts didn't came at first, and lastly also the speaker was stuck on the old phone, so this was a rather unwelcome discovery for a non-technician wanting to repair the phone. By lifting it off a small rubber joint came with it so this had to be removed before gluing it back on the new front (a protective adhesive tape needed first to be removed too so this speaker could nicely be glued on. (of course all this is written still without reassembling my phone). Erik

Erik Buelinckx - 19/04/14

It worked ! I managed to get everything back in place, even after suddenly finding another small rubber thing on my table which after magnifying the pictures here, seemed to have fallen of the motherboard.

So, a part from the fact that this Dragontrail glass is not so strong as promised, I'm really happy I could repair my Fairphone myself.

Erik Buelinckx - 19/04/14

Passo 27

Remove the rubber guide from the recess near the front facing camera hole.
Be sure not to lose this rubber stopper, transfer it to the new display.

Passo 28

Remove the rubber guide to the right of the earpiece speaker recess.
Be sure not to lose this rubber stopper, transfer it to the new display.
Your replacement display will have a piece of yellow tape covering the touch sensor chip. Do not remove this tape; if you do, your phone may not work after reassembly.

When putting the rubber placeholder back in place watch for the right direction. It has a bigger and a smaller hole and they must be placed in the right orientation, otherwise the proximity sensor does not work properly (display is turned off immediately when calling someone)

Carl Hinrichs - 07/11/14

The bigger hole must be on the right site. I replaced mine and put it back the wrong way. Thanks to Carls post now I can see my screen while calling. :) When someone lost the rubber part, I have 1 left.

ilvy - 10/05/17

Conclusione

To reassemble your device, follow these instructions in reverse order.
