Use this guide to replace the bottom speaker adhesive in your Google Pixel Fold following a repair.
Follow this guide to remove the bottom speaker, if you haven't done so already.
-
-

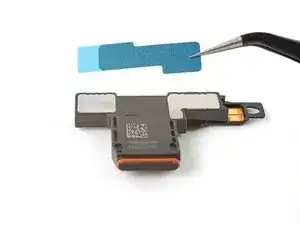

Peel off the new adhesive strip from its liner and apply the sticky side to the bottom speaker.
-
Use a spudger, or your fingers, to press down the adhesive and ensure a good seal.
-
-
-
Insert the bottom speaker at a shallow angle into its recess in the frame.
-
Push the speaker towards the bottom edge of the phone until it sits flat in the frame.
-
Push down on the speaker to ensure a good seal in the adhesive.
-
Repair didn’t go as planned? Try some basic troubleshooting, or ask our Google Pixel Fold Answers Community for help.
