How to Apply New Ultra Wideband Antenna Adhesive in Your Google Pixel Fold

Scritto Da: Alex Diaz-Kokaisl
  • Commenti: 0
How to Apply New Ultra Wideband Antenna Adhesive in Your Google Pixel Fold

Difficoltà

Moderate

Passi

6

Tempo Necessario

10 - 15 minuti

Introduzione

This repair guide was authored by the iFixit staff and hasn’t been endorsed by Google. Learn more about our repair guides here.

Use this guide to replace the ultra wideband adhesive in your Google Pixel Fold following a repair.

Follow this guide to remove the ultra wideband antenna, if you haven't done so already.

  1. dF1aKHbRdbsMfQg4
    dF1aKHbRdbsMfQg4
    H1HfVOjMFVNl245x

    • Look at the bottom of the antenna and note where the adhesive is located.

    • Your new adhesive doesn't have to align perfectly, but it should be close to the original locations.

  2. xrjyH3u4HZcjElaA
    xrjyH3u4HZcjElaA
    Hwku454RSqaY3ZRH

    • Use tweezers, or your fingers, to remove the old adhesive strips.

  3. kYHGI1H1KcxiHPd3
    kYHGI1H1KcxiHPd3
    HOIIGZJxXkw3b5ci

    • Peel off the new adhesive strips from their clear liners.

  4. jACySDjXoL3mbffu
    jACySDjXoL3mbffu
    HcKAbLAnrDuKtB1x

    • Apply the adhesive strips to their respective spots on the antenna.

    • Use a spudger, or your fingers, to press down the adhesive and adhere it to the antenna.

  5. 2jWEc4O3KLTFVRFZ
    2jWEc4O3KLTFVRFZ
    LqpnA6gF4cLrOVIw

    • Grip the pull tabs and peel off the blue liners to expose the adhesive.

  6. xEXKClvPcRJfQyua
    xEXKClvPcRJfQyua
    Lp6YgOIrFVZExfyd
    3keTX31oN5FDrNjM

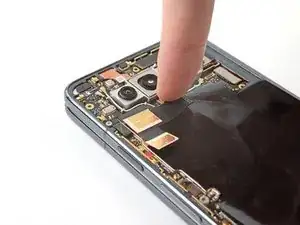

    • Reconnect the ultra wideband antenna press connector.

    • Align the antenna so its top sits against the thermal insulator.

    • Use a spudger, or your fingers, to press down the antenna and adhere it.

Conclusione

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Google Pixel Fold Answers Community for help.
