Use your fingers to push both battery release tabs away from the battery, and lift the battery out of the computer.
-
-
-
Lift the memory door up enough to get a grip on it, and slide it toward you, pulling it away from the casing.
-
-
-
Remove the following 6 screws:
-
Two 10 mm T6 Torx screws on either side of the RAM slot.
-
Four 14.5 mm Phillips screws along the hinge.
-
-
-
Rotate the computer 90 degrees and remove the two Phillips screws from the rear of the computer.
-
-
-
Rotate the computer 90 degrees again and remove the four Phillips screws from the side of the computer.
-
-
-
Lift up at the rear of the case and work your fingers along the sides, freeing the case as you go. Once you have freed the sides, you may need to rock the case up and down to free the front of the upper case. This stage can be quite tricky. Over the DVD reader are 4 tabs set back which pull out vertically.
-
Note that the two small tongues on the left hand front of the upper case may bend while you remove the upper case. When re-installing, you may need to bend them back to fit in the grooves in the lower case.
-
-
-
Disconnect the trackpad and keyboard ribbon cable from the logic board, removing tape as necessary.
-
Remove the upper case.
-
-
-
Use a spudger to carefully loosen the adhesive securing the sleep light and IR sensor connectors to the top of the hard drive.
-
-
-
Remove the two silver Phillips screws securing the hard drive retaining bracket to the lower case.
-
-
-
Slide the Bluetooth board out of its slot next to the hard drive. The Bluetooth board is still connected to the orange hard drive cable, so don't try to remove it entirely from the computer.
-
-
-
Lift the hard drive up with one hand and use your other hand to remove the retaining bracket from the side of the hard drive.
-
-
-

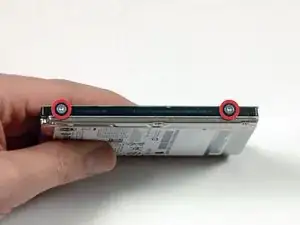

Remove the two silver T6 Torx screws and black rubber bumpers from the right side of the hard drive.
-
-
-
Remove the two black T6 Torx screws and black rubber bumpers from the left side of the hard drive.
-
To reassemble your device, follow these instructions in reverse order.
