Motorola Moto G7 Play Front Facing Camera Replacement

Scritto Da: curt caudle
  • Commenti: 6
Motorola Moto G7 Play Front Facing Camera Replacement

Difficoltà

Moderate

Passi

8

Tempo Necessario

20 - 25 minuti

Introduzione

This guide will show each detailed step to removing and replacing the front facing in the Motorola G7 Play, model number XT1952-3 or XT1952-2. The front camera is used to take selfie photos on the phone. If the phone doesn’t have a way to capture selfie photos the front facing camera is no longer working.

Before you begin, download the Rescue and Smart Assistant app to backup your device and diagnose whether your problem is software or hardware related.

  1. myPnevNSNNPKgJjY
    myPnevNSNNPKgJjY
    EO5ZBNZxWHVRNAoF

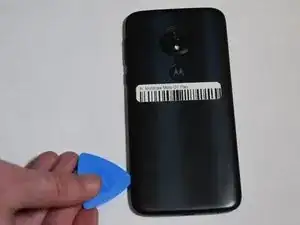

    • Turn off your device before you begin.

    • Use the iFixit pick to break the adhesive around the back case.

    • Use a heat gun, hairdryer, or iOpener to weaken the adhesive around the back case. If you're using the iOpener, please review the instructions for proper use.

    How long do you have to use the heat gun before the glue loosens?

    Pamela DeMars -

    It's worked for me with about maybe 15-20 seconds of heating per side.

    Matthieu Bister -

    I could not get the pick started under the cover. Ruined several tips. I started with a hair dryer and switched to a heat gun. Be careful with a heat gun! 😬

    K Goatee -

  2. tgoBehD2raMYJuwT

    • Detach the back case from the phone.

    • Make sure the back is opened right to left so the cable of the fingerprint scanner does not get damaged.

  3. ib1tdYuELTqFPZih
    ib1tdYuELTqFPZih
    qx5B3YUkDDxMqSno

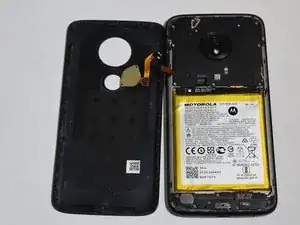

    • Use the iFixit pick and the iFixit opening tool to pull the fingerprint scanner off of the back case.

    My g7 power had a removable connector at the phone side

    K Goatee -

  4. wgiTLt1AvyVE2FhZ

    • Remove the nine 3.2mm screws from the motherboard cover with a Phillips #00 screwdriver.

  5. uqJaSPVuWNogO4ZK

    • Lift motherboard cover off by the bottom.

    • Use reverse tweezers or a similar tool if needed.

  6. oYEncH1c3amoWN2I
    oYEncH1c3amoWN2I
    uD6ZnoQAJV4tTIdV

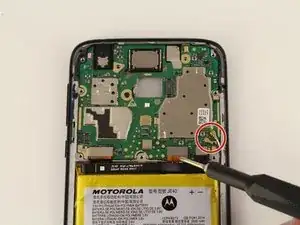

    • Once the motherboard cover is removed, disconnect the four ribbon cables and the two wires attached to the motherboard.

  7. 2KYQPDdRjjM3KQdh
    2KYQPDdRjjM3KQdh
    hwicSqSgdFNjMOn5

    • Using the Phillips #00 screwdriver, remove the single 0.4 mm black screw in the center of the motherboard.

    • Remove the motherboard from the device.

    Please add more photos or explain more thoroughly how exactly to remove the motherboard at this stage. (e.g. from top or bottom or left/right, using a flat screwdriver,etc).

    Amy -

    I struggled at this step too. The Battery Replacement guide starts with a crucial step that's missing in this current guide: removing the SIM card.

    Motorola Moto G7 Play Battery Replacement - iFixit Repair Guide

    Matthieu Bister -

  8. YuLXDfqeMwRuRqE6

    • Separate the front facing camera from the motherboard while removing the adhesive .

Conclusione

To reassemble your device, follow these instructions in reverse order.
