Use this guide to remove or replace the left fan in your Razer Blade 15" (2020) laptop.
Note: This guide refers to the "left" fan as the one on your left-hand side when the screen is open and facing you.
-
-
Unplug all cables and fully shut down your laptop.
-
Close the lid and flip your laptop over so the back cover faces up.
-
-
-
Use a finger to pry up the right side of the back cover, starting at the Ethernet port cutout.
-
-
-
Remove the back cover slowly, as to avoid tearing the thermal pads underneath.
-
Lay the back cover down on its rubber feet to avoid damaging the thermal pads on its underside.
-
-
-
Use the flat end of a spudger to push the square tab on the battery connector and slide it out of its socket.
-
-
-
The antenna cables look very similar. Label one of them with a piece of tape or marker and remember which socket it connects to.
-
-
-
Insert one arm of angled tweezers under the metal neck of each antenna cable and pry up to disconnect it.
-
-
-
Grab the pull tab on the screen connector.
-
Pull up to disconnect the connector from its socket.
-
-
-
Use the point of your spudger to press on alternating sides of the charging port connector to "walk" it out of its socket.
-
-
-
Unclip the screen and antenna cables from the fan and move them over the right edge of the laptop.
-
-
-

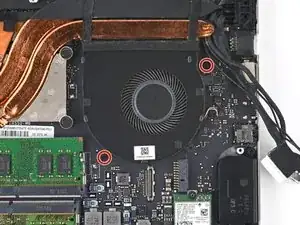

Use tweezers or your fingers to grab the rubber sleeve around the left fan cable and pull the connector straight out of its socket.
-
To reassemble your device, follow these instructions in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
