Smontaggio MacBook Pro Retina Display da 15" versione metà 2012

Scritto Da: Brett Hartt
Pubblicato: 13/06/12
  • Commenti: 108

Smontaggio MacBook Pro Retina Display da 15" versione metà 2012

Pubblicato: 13/06/12

Smontaggio

Introduzione

IAmA on Reddit con Kyle Wiens, CEO di iFixit, che parla del MacBook Pro con il Retina Display!

Ed eccolo qua: il "prescelto" dei MacBook Pro. Se ad altri MBP è stato garantito solo l'aggiornamento annuale standard, questo particolare modello beneficia di un Retina display, spessore inferiore, due porte Thunderbolt, una porta HDMI full size e ventola di raffreddamento meno fastidiose. Apple afferma che questo è il "miglior computer mai realizzato da Apple".

Può darsi che Apple abbia davvero detto la verità descrivendo come si presenta l'interno di questo MacBook Pro, ma non ne siamo del tutto convinti. Vieni con noi per scoprire i contenuti più significativi di questo MacBook Pro così speciale.

Non riesci a fare a meno degli smontaggi? Hai una fame insaziabile di vedere le interiora di ogni dispositivo? Vuoi mostrarti più preparato di altri geek ed essere aggiornato in tempo reale sugli smontaggi? Segui

iFixit su Twitter per gli ultimi aggiornamenti.

  1. AkT2Xr5FUlBDUsdx
    AkT2Xr5FUlBDUsdx
    nBkZVNntSEjvl6Kw

    • Le persone comuni Gli appassionati di Mac non dovranno più aspettare dei mesi per vedere che cosa c'è dentro il nuovo MacBook Pro.

    • Che cos'è 'sta roba, che fa discutere chiunque nel mondo della tecnologia?

    • Display Retina retroilluminato a LED da 15,4" con tecnologia IPS e risoluzione di 2880 x 1800 a 220 ppi

    • Processore Intel Ivy Bridge Core-i7 con Turbo Boost e grafica Intel HD 4000

    • 8 GB di RAM DDR3L da 1600 MHz

    • NVIDIA GeForce GT 650M con 1 GB di VRAM GDDR5

  2. LkITFUXNELKtKMyA
    LkITFUXNELKtKMyA
    CLA5SiDQQRvi6XJ3

    • Una rapida ispezione della parte laterale del MacBook Pro Retina display mette in evidenza tonnellate di aggiornamenti:

    • MagSafe 2

    • Due (!) porte Thunderbolt

    • La prima di due porte USB 3.0

    • Un jack cuffie standard da 3,5 mm (fischi del pubblico)

    • Il lato destro del MacBook accoglie un lettore di schede SD, la seconda porta USB 3.0 e un'uscita HDMI full size.

    • Su entrambi i lati ci sono delle prese d'aria per il nuovo sistema di raffreddamento. Ulteriori dettagli più avanti.

    Any sign of a security slot? Even if I was sitting nearby not using it, I'd be terrified to leave one on a desk unless it could be secured.

    junk -

    You say, "A standard 3.5mm headphone jack (boo)". What justifies the "boo" in this case? Missing optical, is my best guess. Does it not support the iPhone style inline headset/volume? Is there some other issue with it?

    Owen Imholte -

    No, it's just that it's not new and exciting like the other ports.

    David Hodson -

  3. FkEgJSQemWXi35he
    FkEgJSQemWXi35he
    bUNK6HSTLxY6odUY

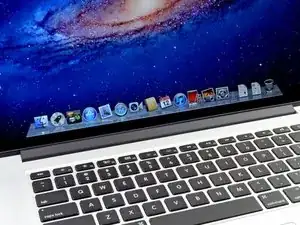

    • Il nuovo design del display non ha lasciato spazio, sull'esile cornice, al consueto logo "MacBook Pro".

    • C'è spazio in abbondanza per il logo, invece, sul fondo del computer. Se nessuno crede che il tuo computer sia un vero MacBook Pro, ti basta prenderlo e capovolgerlo.

    • Con tutti questi aggiornamenti, questo Pro si è meritato un nuovo numero identificativo del modello: A1398.

    • Lasciamo decantare questa novità per un minuto, il tempo di renderci conto: Apple ha finalmente adottato un nuovo numero per il MacBook Pro! Sono le piccole cose quelle che ci rendono felici.

  4. fUHtMiFEmUxOB32b
    fUHtMiFEmUxOB32b
    rkcxxotDT2omERmc
    MjkYdQtHfMqBDbJQ

    • Come si presentano da molto vicino il logo Apple o l'icona del Finder a 220 pixel per pollice?

    • Un pacco di punti colorati quadrangolari, tutto qui.

    • Scherzi a parte, la risoluzione di questo display è veramente incredibile. Non c'è dubbio che il costo di produzione del Retina display sia un'ottima ragione per i 2200 dollari (prezzo base) di listino del nuovo MacBook Pro.

    Is it me or do I see 5 stuck pixels on that small close-up of the screen?

    msu320 -

    Yeah, stuck pixels, but not on MB display but in CMOS sensor fo the camera probably ;)

    Alex -

  5. BVuECcunntgRSTOq
    BVuECcunntgRSTOq
    21EcUTBNrALrecEV
    u5KpRVpkZYrSQJsG

    • Amiamo le sfide: una buona notizia perché, diversamente dalle versioni precedenti dei MacBook Pro, il MacBook Pro con display Retina è protetto dalle viti di tipo proprietario Apple Pentalobe.

    • Lavoriamo con il fiato sospeso mentre il nostro cacciavite pentalobe fa piazza pulita di un gruppo di viti di tipo proprietario.

    • Infine, eccoci dentro!

    What size of pentalobe is this?

    haloerika -

    It's 1.2.

    Btw, where are the 3 longest screw located ?

    Roberto Sonzogni -

  6. vkuKGsNkWXXe1BRv
    vkuKGsNkWXXe1BRv
    roUncg54iE1w4ebu
    VYOLRjZ1wYXUnMFL

    What's the deal with the two magnets in the middle of the case, just above the batteries?

    Scott Lawrence -

    Hey Scott. Those magnets are used to hold the rear cover close to the body of the MacBook Pro. The screws hold it in place around the perimeter, but the magnets keep the large aluminum panel from acting like a drum, flapping about and such. In the MacBook Air, Apple uses plastic clips to accomplish the same task.

    Brett Hartt -

  7. VJwAbsvIFxxcAATx
    VJwAbsvIFxxcAATx
    eHio34FQn2ZLyamJ

    • Il nuovo pacco batteria fa un deciso passo avanti: 95 Wh a 10,95 V invece dell'esile pacco da 77,5 Wh dell'anno scorso.

    • Due cose, però, non sono cambiate: l'autonomia della batteria di sette ore lo sgradevole concetto che Apple pensa che tu non sia qualificato per mettere le mani sulla batteria di tua proprietà.

    • Allarme spoiler: potrebbero anche avere ragione.

  8. e2j2rD3bnbEsRtji
    e2j2rD3bnbEsRtji
    JW1FdWSpU2Nw5ljT

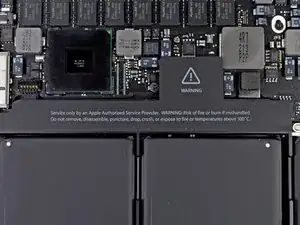

    • È sempre una buona idea scollegare la batteria quando metti mano ai tuoi gadget.

    • Se è vero che Apple sembra mettere etichette di avviso ovunque, si dimentica di menzionare la possibilità di scosse se non si disconnette la batteria nel corso di operazioni chirurgiche all'interno. È mai possibile che Apple non si aspettasse il nostro smontaggio?

    "While Apple seems to have an extensive warning label, it fails to mention potential shocks by failing to disconnect the battery during gadget surgery. Is it possible Apple wasn't expecting us?"

    Actually, I think they did. :)

    Is that normal that the Model number is not the same in and out of the computer? (A1398 & A1417)

    Mr Bob -

    Those are the computer and battery model numbers, respectively. They've done that for a while now.

    David Hodson -

  9. OmNciIRWdbmSySlq
    OmNciIRWdbmSySlq
    KhuWjxSsu3pSMtkt

    • Buone notizie. La batteria non è più avvitata all'interno della macchina.

    • Terribili notizie. Ecco la scelta di usare la temutissima parola che inizia per C: colla.

    • Passiamo per prima cosa ai componenti più accessibili e poi torneremo alla batteria.

  10. LpjTmUO4MTnygPTv
    LpjTmUO4MTnygPTv
    JUVvQbKbgRelqBp6
    jyobgxgXHFgCNPv4

    • Eccoci di fronte alla roba buona, iniziando dall'SSD. Abbiamo scoperto un modulo di memoria flash Samsung da 512 GB.

    • I chip sono marcati così:

    • Chip controller SSD ARM 3-core Samsung S4LJ204X01; si direbbe una versione più recente degli SSD serie 830.

    • Chip NAND MLC da 20 nm Samsung 213 K9UHGY8U7A

    • Memoria cache DDR2-800 da 256 MB Samsung 201 K4T263140F

    • La memoria flash proprietaria non è una cosa nuova per Apple. Ma è nuova per la gamma MacBook Pro.

    This is the same SSD controller used in the Samsung 830. This is a very good thing. I remember seeing a Toshiba SSD module as well which I think uses a Sandforce controller. Performance characteristics are a bit different. I wonder when one is used over the other.

    Joon Park -

    Is this SSD compatible with the one in Air 2012?

    Thanks.

    Jon -

    The chip number on the RAM is K4T2G314QF-MCF7 (Q, not 0, as noted in Step 10)

    These part numbers also noted in my news post here (linking back to you guys):

    http://www.pcper.com/news/Storage/New-Ma...

    My performance review of the Samsung 830 Series, for those interested:

    http://www.pcper.com/reviews/Storage/Sam...

    I'm thrilled to see such a great controller in the new MacBooks!

    Best,

    Allyn Malventano

    Storage Editor, PC Perspective

    Allyn Malventano -

    The SSD card is using a standard mSATA connector and layout. The size of the board is proprietary, but the pinout and the signal standards are maintained.

    So, it's possible to build a replacement SSD for the macbook pro Retina. I expect our friends at OWC and others to start making 512, 768 and 1024GB upgrades available. Perhaps faster, since they have shown they have access to the same high-speed controllers and chips.

    -M

    Martin Bogomolni -

    Is it confirm that the physical size of SSD in R-MBP is the same as MBA? If so, that will be a good news for replace or upgrade.

    Tembo Hu -

    K9UHGY8U7A is the same 25nm MLC NAND as in the Samsung 830.

    As others noted, the controller is also identical to the 830 (The MCX). Not a newer revision.

    Samsung new NAND in the 840 is 21nm. There is no such thing as 20nm NAND from Samsung.

    The 21nm MLC is K9HFGY8U5A

    and the TLC is K9CFGY8U5A

    Just want to avoid spreading wrong information

    Anh Man Tran -

    I have chatted with two different reps, online, both of whom say that the just-released Retina MacBook Pros come with solid state drives that are soldered onto the motherboard. They also say it can be repaired by Mac, but they avoided the question of upgrading or replacing (if it's beyond in-place repair). Can somebody please look into this?

    bob -

  11. 2hj4IKDTAFEZnmbl
    2hj4IKDTAFEZnmbl
    nWQtA3qxF3kFkjWD
    uJ4nsfBxNqstpRVU

    • A prima vista, la scheda AirPort del MacBook Pro sembra molto simile a quella che abbiamo tirato fuori dal MacBook Air versione metà 2012.

    • Un'ispezione più attenta ci fa però scoprire che non è proprio così:

    • Soluzione wireless dual-band 802.11n su singolo chip Broadcom BCM4331

    • Soluzione HCI Bluetooth 4.0 su singolo chip Broadcom BCM20702 con supporto BLE (Bluetooth Low Energy)

    • Blocco WiFi Skyworks

    • 2x FrontEnd dual-band SE5515

    • Amplificatori di potenza trasmissione SE2958L da 2,4 GHz e SE5019T da 5 GHz

    • Amplificatori low noise ricezione SKY65405 da 2,4 GHz e SKY65404 da 5 GHz

    @mr2incredible Is this upgradable to AC WiFi?

    Padraic Hoselton -

    yeah i realy wonder also :)

    katrinetekin -

  12. a6LAUuO1fT2QMDi2
    a6LAUuO1fT2QMDi2
    LrIUGGOnTYNn4PGk
    YTXUX5tHTshG4SY6

    • Una staffa, alcuni cavi di antenna, qualche vite e alla fine arriviamo alla crema, la ventola con spaziatura asimmetrica tra le pale.

    • Siamo passati a chiamare "asimmetrica" la ventola all'interno del MacBook Air da 13" versione metà 2012, ma rispetto alla ventola all'interno di questo MacBook Pro, quella dell'Air è certamente più regolare.

    • In teoria, la simmetria distribuisce il rumore prodotto dalla ventola su frequenze multiple, rendendolo meno avvertibile.

    • Questa ventola è stata citata in quasi tutto ciò che è stato scritto sul MacBook Pro con il Retina display. Ci sorprende notare quanta attenzione è stata riservata a un piccolo cambiamento nello spazio tra le pale. È però la dimostrazione dell'attenzione di Apple a piccoli dettagli snobbati dalla concorrenza che gioca a favore dell'utente finale.

    They used to do the same thing with radiator fans in cars (back when they were belt driven). Not so much for noise reduction, but to reduce vibration (which is pretty much the same thing when you think about it).

    ian351c -

  13. CdOi6YRPKANqIwrg
    CdOi6YRPKANqIwrg
    cZDGfiZosbWksbbF

    • Il prossimo elemento è la scheda I/O che ospita una delle due porte USB 3.0 e il lettore di schede SD.

    • Ci piace il fatto che questo Pro abbia porte USB 3.0 su entrambi i lati. Così si risolve il problema di cavi che sono 32 cm troppo corti e di chiavette, ricevitori del mouse e giocattoli USB che sono 1 cm troppo larghi.

    • La scheda I/O accoglie anche un controller Broadcom della serie BCM57100 per Ethernet Gigabit + lettore di schede di memoria. Il controller Ethernet è accessibile tramite l'adattatore Thunderbolt venduto a parte.

    • Ripetitore anti-jitter HDMI 3 Gbps ParadeTech PS8401A

    "The Ethernet controller is accessible through the separately-sold Thunderbolt adapter."

    Do you really think this is the controller that is accessed with the thunderbold adapter?

    First: it is on the other side of the computer...

    Second: the adapter itself has the ethernet controller on board?!

    So what do you mean by that statement?

    derbroti -

    I would also like to know whether the onboard ethernet is really wired up? It identifies as 14e4:16a3 "Broadcom Corporation Device 16a3 (rev 21)". I do not think it is used in the Thunderbolt ethernet adaptor, since the thunderbolt adaptor has its own onboard BCM57762 ethernet controller. So what is the point of including ethernet in the Macbook itself? Can it be used?

    Chris -

    this might sound dumb at first but i think it actually works with the airport wireless NIC somehow. (en0)

    tjt263 -

    I realize that this is like 3 years too late but its’s for the 10gbps (sort of) point-to-point ethernet connection you can make by connecting two Macs together via thunderbolt.

    Ted -

    how do you get the darned plastic bracket off?

    flow in -

  14. WgHBkCU2KdsaxMEi
    WgHBkCU2KdsaxMEi
    vMK4VGFB3NOv5UfZ
    OElarpDkI1pqNeGW

    • Pezzo successivo, il gruppo del dissipatore e dello scarico dell'aria di processore e GPU.

    • Spingere l'aria attraverso la fessura prima che raggiunga le uscite più esterne, significa aumentare il calo di pressione che accelera l'aria e la spinge più rapidamente fuori dal computer.

    • Una volta rimosso l'ultimo ostacolo presente lungo il percorso, la scheda logica fuoriesce senza alcuna particolare difficoltà.

    Are you sure that isn't an Apple proprietary memory daughterboard connector between the CPU and the top row of RAM chips?? Seems to me that would be an easy way to upgrade from 8GB to 16GB of RAM...

    emoon1 -

    interesting, can you elaborate on this?

    tjt263 -

  15. IAbJlQbhPUYnQMOS

    • Gli attori principali sulla parte frontale della scheda logica includono:

    • GPU NVIDIA GeForce GT 650M

    • Processore Intel Core-i7 3720QM da 2.6 GHz (Turbo Boost fino a 3.6 GHz) con Intel Graphics HD 4000.

    • Quello che sembra un Platform Controller Hub Intel E208B284

    • SDRAM DDR3L Hynix H5TC2G83CFR

    • Controller Thunderbolt Intel DSL3510L

    So I guess there is no easy way to upgrade the RAM...

    You cannot swap new/bigger memory bars.

    Can you confirm?

    Thank you!

    Francois Massart -

    You're stuck with the RAM you buy. There's no way to upgrade the RAM unless you switch out the entire logic board.

    Miroslav Djuric -

    The yellow one is almost certainly the QM77 variant of the C216 chipset which would be the PCH as mentioned.

    Microwave_highvoltage -

  16. DDW5erfAmFiGWGqM

    Just some random ad…

    Aiden -

    Advertising.

    Duck -

  17. qZaWp3cP2wdUrRly

    • Il retro della scheda logica ci fa scoprire:

    • Chips SDRAM DDR3L 2Gbit da 1600 MHz Hynix H5TC2G83CFR

    • Hynix H5GQ2H24AFR: chips di memoria GDDR5 2Gbit da 2,5 GHz

    • Microcontroller, con core ARM integrato, Texas Instruments Stellaris LM4FS1AH

    • MCU CISC serie H8s Renesas R4F2113

    • Controller alimentazione CPU/GPU IMVP7, specifico per Apple, Maxim MAX15119

    • Cypress Semiconductor CY8C24794-24L: un SoC (System-on-Chip) programmabile

    Notice that the Lattice FPGA used in previous MBP models to switch the LVDS display signal between the two GPUs ("GMUX") has been replaced with a TI HD3SS212 DisplayPort switch.

    dfskjfksa -

    Yellow must be the SMC as deduced from sheet 41, page 49 of "SCHEM,MLB,KEPLER,2PHASE,D2" (the schematics matching this Macbook Pro)

    Microwave_highvoltage -

    - Green seems to be the “eDP Mux” from schematics.

    - Magenta is the “PSOC USB CONTROLLER” and related to “KEYBOARD/TRACKPAD”.

    Microwave_highvoltage -

  18. NHnQ1duT2BXyCdtV
    NHnQ1duT2BXyCdtV
    PaYZfyaLCg6EYaQB

    • Il jack cuffie è fissato molto bene, ma non sarà questo a fermarci.

    • Ecco il posto dove collegare le tue cuffie e i tuoi altoparlanti. Non sappiamo, però, quale motivo tu possa avere per non condividere la magia del sistema di altoparlanti studiato da Apple...

    Any chance that it can be used as Line In as well? or only using the iPhone headphones mic (4th position of Tip, Ring, Sleeve, Sheath) And optical in and out?

    Will Mayo -

    yes i believe it doubles as a line in/line out

    tjt263 -

  19. b2JF3ZNmGEBBWeJL
    b2JF3ZNmGEBBWeJL
    FpXelVGPsBEwBwNT
    kuaZcnOQ1GbPvCwZ

    • ...e, a proposito, ecco che vengono via gli altoparlanti.

    • Apple afferma che i loro altoparlanti appositamente realizzati ricavano il massimo da "ogni millimetro cubo" presente all'interno del MacBook Pro. Per i 2200 dollari che si pagano, speriamo davvero che non siano di tipo plug-and-play.

    • Il doppio microfono MEMS Knowles DXEC02 resta sotto (oppure è sopra?) Il gruppo dell'altoparlante sinistro. Questi dispositivi usano un "algoritmo adattivo di beamforming" per eliminare rumori di fondo e rendere più facile parlare al tuo computer effettuare chiamate tramite Skype e migliorare le capacità di riconoscimento vocale.

    Does the audio port have optical digital?

    Benjamin Green -

    From the Apple specs sheet neither this new MacBook Pro or the new MacBook Air have digital outputs. Just looking at the connector in the disassembly photos it appears to be true - Sorry

    Dan -

  20. VYXYxcpwMIcT5GuG
    VYXYxcpwMIcT5GuG
    KItXEvhTq4ySbDGr

    • Qualche cavo e e le viti della solida cerniera del display tengono insieme il gruppo display, ma non per molto.

    • L'LCD Retina è posizionato nel gruppo display e non può andare da nessuna parte. Sembra probabile che se qualcosa relativo al display si guasterà, dovrai comunque sostituire baracca e burattini.

    • Non dimenticare che il gruppo display comprende anche la fotocamera FaceTime, le antenne Wi-Fi e l'antenna Bluetooth.

  21. ALDqXyUNeJTWCycT
    ALDqXyUNeJTWCycT
    GACYxEbEiEISRwBY

    • Ci dev'essere stato qualcuno che proprio non voleva che la batteria del MacBook Pro potesse essere tirata fuori dal case superiore.

    • Ci siamo lanciati coraggiosamente con il nostro righello metallico iFixit da 15 cm per liberare la batteria dai suoi confini di alluminio, ma senza risultato. Piuttosto di rischiare di forare una cella al litio-polimeri, abbiamo lasciato l'elemento al suo posto.

    • Per complicare ancora di più la cosa, il cavo del trackpad è sotto la batteria. Cercare di staccare la batteria dal case superiore può facilmente portare a danneggiare il fragile cavo sottostante, provocando un grosso guaio.

    What about heat to free the batteries? Since the case is metal, what are the thoughts of gradually heating the case, until the glue begins to loosen up? Naturally, you'd want to do that with as much other stuff removed as possible.

    I think the key would be a precision heating of the case (not just hitting the batteries with a heat gun), learning what the meltio0ng point is and not going a degree above that!

    John Rees -

    Are the battery modules glued to some kind of common rack, which can be then taken out as a whole or are they individually glued to enclosures frame?

    Michael Seydl -

    The warning label for the batteries says 100 °C. I bet the glue is hot melt and it turns to butter at some temperature well below that. Apple offers battery replacement service so there has to be some reliable way to un-bond the glue.

    I bet at about medium well (160 °F or 71 °C) the batteries fall right out.

    Dave Adams -

    Have your tried a swab of rubbing alcohol on the glue holding the batteries? If it's hot melt adhesive, they'll cleanly pop right off.

    Phil Burgess -

    Suggest trying "Undu" - scrapbooker's adhesive remover. Brilliant stuff. (chemical = hexane) Dissolves the pressure sensitive adhesive glue bond, then evaporates leaving the adhesive still sticky for reuse. I have used it on iPhone battery with success.

    B Louis -

    So... while I generally agree with everything said here, I wanted to address the battery issue. I've now stripped out 7x highly used and dying, or damaged batteries without damaging them. I use a 1-1/2" wide very stiff (with a dull front edge, similar to this: http://www.walmart.com/ip/32522800?wmlsp...). I them wrap the entire blade in electrical tape to soften edges. Then, coming at various strategic angles (depends on which portion of the battery I'm removing), I go under each. From a top down view with the battery at the bottom and the logic board on top, the two middle portions are the most difficult (with the middle one on the right being the trickiest) to remove. Leave the two middle portions for last... for one, that's where the trackpad ribbon/trackpad guard is, but also simply because u can go underneath the outside portions to get to those (once you've gotten the outside portions lifted away).

    jcarter -

  22. 1hlMKPXTFf32klKi
    1hlMKPXTFf32klKi
    6PYTEhATbGeM2yeU

    • Punteggio di riparabilità del MacBook Pro con Retina display da 15" versione metà 2012: 1 su 10 (10 è il più facile da riparare).

    • Le viti di tipo proprietario Pentalobe ostacolano l'accesso ai componenti interni.

    • Come nel MacBook Air, la RAM è saldata alla scheda logica. Fai il salto a 16 GB fin da subito oppure rassegnati: non c'è verso di aumentare la memoria successivamente.

    • L'SSD di tipo proprietario non è al momento aggiornabile, perché è simile, ma non identico, a quello dell'Air. È una scheda secondaria separata e speriamo di poter offrire un aggiornamento alternativo in un prossimo futuro.

    • La batteria al litio-polimeri è incollata invece che avvitata nel case; questo aumenta la prossimità che si rompa durante lo smontaggio. La batteria copre anche il cavo del trackpad, cosa che aumenta terribilmente la possibilità che l'utente strappi il cavo durante la procedura di rimozione alla batteria.

    • Il gruppo display è completamente fuso in un pezzo unico e non c'è un vetro protettivo separato. Se qualsiasi cosa si guasterà all'interno del display, dovrai sostituire l'intero gruppo, estremamente costoso.

    "MacBook Air 13" Mid 2012 Repairability Score: 1 out of 10 (10 is easiest to repair)." Macbook Pro you mean?

    Jason Martin -

    Sorry, it was a late night.

    Miroslav Djuric -

    It’s 15 inches, isn’t it?

    Frank -

    it's MacBook PRO, and it's 15'' isn't it?

    Tyler -

    I would argue against the last point "display assembly is completely fused".

    Replacing parts with any laptop usually requires a cheap alternative. For he majority of time. It is the RAM, Harddrive, etc.

    You rarely see screens or monitors replaced and when they are replaced you dont just replace the panel you replace the entire screen.

    For DDR ram, in order to run at 1600MHz a better design is to ditch SO-DIMM modules.

    FACT: You can run any RAM at a faster Hz when it is directly soldered to the board.

    asd1815dev -

    Can you tell whether there is space and a way to fit a sata drive in for additional disk space?

    Tay Zombulovich -

    If you take out one of the fans or the battery cells, sure. I wouldn't suggest doing either of those, though.

    David Hodson -

    So the glass covering the display is gone? Can the writers please confirm?

    A feature of the last few MBPs was the glass display, this is now gone?

    On a side note, I wish random comments like "I wouldn't recommend this to anyone" can be deleted. NO ONE really cares and is not asking for "Joe" off the Internet for his reccomendation.

    Surge -

    SSD Upgrade: Check out OWC's Aura/Aura Pro 6G... or Transcends Jetdrive 720 (with a 960GB option!!)

    Applecare: Yes, when buying the retina (especially if like myself... you have the top end models (2.7/2.8GHz i7 16GB DDR3 768GB SSD), you should invest in applecare. Buy it on ebay if you want to save a bit of cash. I got my first 15" retina applecare on ebay (regularly $349) for $245. Granted, that was some time ago. But still, saved $100. And my macbook pro retina was $3400. Well worth the $249, even if just to get the parts for free. LOL. I have since had 4x retina displays replaced because of image ghosting, and 2x replaced because of logic board issues (I own 75+ macs for work). Applecare is worth it for expensive machines. Even if you work on them yourself and are a certified mac tech like me. Still worth it.

    jcarter -

    In my opinion the MBP retina 15 is as close as it gets to be a perfect product. I've got the 2012 maxed out version, and still have no need for any upgrade, the 16GB RAM is still way more than necessary, the i7 still screams, and I still have more than 100GB free space.

    At the time I bought it, I was looking for desktopclass performance on the go, plenty of batterylife, 15" Screen and <= 2kg to carry around. It can do all that, which is very impressive to have the paradox of light, but powerfull + powerfull but, good batterylife.

    And thats where realtiy hits. If you would now want to merge these two impressive feats with repairabilty it will get thick and heavier. There is no Hattrick possible here, you can make two out of three work, but one is the sacrifice fo another.

    And if you dont need any uprades in 3 years or more, than it doesnt have to be repairable, opt for Apple Care and youre good to go, and the one and only thing that needs replacement down the road, the SSD, is replaceable.

    JMI -

    I agree. I didn't get a maxed out version but mine still runs so fast and the batteries are still like new in my opinion. I feel no need to buy a new Mac yet, I don't even think the Mac seems any slower than it did the day I bought it, even with all of the new OS versions. I use Final Cut Pro to edit multiple 1080p/60 streams and it handles everything. The photo of the Mac with the back off looks like a work of art lol. I hate to sound like a hardcore Apple fanboy but its really good-looking inside and out. This was my first Mac and I can't imagine going back to Windows now.

    chris bizzelle -

    I felt just like @cxk (chris bizzelle) until I upgraded from Mavericks (10.9) to High Sierra (10.13). Yes, I waited that long, because everything Just Worked. But eventually some of my apps were no longer supported and Homebrew was not supported.

    What a difference. Instead of 1-3GB free physmem under my normal app load, I’m at roughly 300MB. Mail.app takes literally 500 to 800 milliseconds to respond to keypresses requesting things like “delete a message” or “display next message". Instead of ~250 entries in the process table for an idle, no-Apps open state, I’m closer to 300.

    This is clearly not a criticism of the 2012 MBP, but rather of Apple for making a wonderful machine slow by releasing a bloated, poor-quality macOS release. They ought to be ashamed. If I could find a copy of the 10.11 installer, I’d seriously consider going back to an older release. Oh I know — they want me to buy a new laptop instead! I like the features of my current MacBook Pro, thank you very much. Grr.

    Chris Johnson -

    I did the same - upgraded from Mavericks to High Sierra - and was also wondering about the low free memory (also about 300 MB). I think it’s because of “inactive” memory. When you close an app, OS doesn’t free up the memory that it used, but rather marks it as inactive, so that if you relaunch the app it will load faster. If another app needs memory, but there is not enough free memory, it will free up some inactive memory to make it availble for the newly launched app.

    Found a question about it on stackexchange: https://apple.stackexchange.com/a/4323

    Btw, if you use iStat Menus, you can check a box (in iStat Menus 6.0 at least) under the memory section “Hide inactive memory” and it will show only “wired” and “active” memory used, so you get a better feeling of how much memory is available.

    Joakim Borregaard -

Autore

Brett Hartt

Membro da: 13/04/10

127718 Reputazione

49 commenti

You haven't said, Can you see who makes the display?

Igal Neshto -

I too would like to know more about the panel.

Nicholas Shanks -

ifixit probably afraid of damaging the pricey display.

User ONE -

what about the keyboard? not replaceable?

xkiller213 -

It is, I recently had to do it. The big issue is that the original keyboard is riveted in and so the old keyboard has to be ripped ou, breaking the rivets in the process. This means the new keyboard has to be screwed in instead, and take around 100 tiny screws to achieve this.

Steve Pearce -

no trace of LIQUID METAL share?????

12345 -

Apple is ridiculous.

Why continue in this way, far from the idea to be near his customer.

Glue the battery, pffff, can not be explain ....

I will keep away from this computer.

Sorry to see this ....

Mathieu Vilaplana -

"You'll be missed!" -- Randal

no way -

Please post information regarding the FaceTime HD webcamera. Thanks!

Martin -

I don't particularly see how people can say that they couldn't recommend this to anyone, unless regardless of what it's repairability rating was, you weren't going to recommend it to anyone either way. I mean, most people have, IDK, a mom or a girlfriend, or even just a friend that is comfortable with neither doing repairs and replacements themselves or having you do it? I replaced the memory in my MBP before I ever turned it on, and changed out the HD after I was set up, but I'd be lying if I said everyone I knew was like me. Even myself, if I'm shelling out $2200 (You can max out at $3500ish :O) on a computer I'd probably invest in Apple Care.

Anyways, of course I AM not excited about anything that would be hard to replace, but only because of my own preferences and a few people I know. I know more people than not whom won't be affected by that.

driftej20 -

While I agree that these things don't make me want to avoid this machine, I'm not sure the point of suggesting that one's "mom or girlfriend" are the intended audience because they're not technically savvy.

In a world where Linus Torvalds runs a Macbook Air, it's extremely condescending to suggest that a Macbook Pro, due to its non-expandability, is only appropriate for women.

no way -

In any case, if I have a scenario where a faulty RAM needs to be replaced, the only solution then is to only order the entire logic board. Will not that cost you closer to getting a new one. Was this new MBP retina built to last. What would be the possible cost of owership this has to the end user?

ADB

Arly Borja -

R4F2113 is a Renesas 16-Bit Single-Chip Microcomputer H8S Family / H8S/2100 Series

Dan -

As for the soldered-in RAM: I believe that they've figured out what the probability of failure of RAM is, and it must be low enough that it's not likely that RAM will be failing more often than anything else on the board. If you want replaceable RAM, why stop there: you could have a replaceable CPU. And GPU! And why not something else as well. See where it goes? RAM is not special in any way.

Kuba Ober -

Thats exactly the point! Engineers have labored to make all of these parts modular and Apple is taking their notebooks in the completely wrong direction. Gaming notebooks have had MXM graphics card slots for a long time now. It is not only environmentally unfriendly to solder RAM to the board, but also prevents upgrades! Boo Apple!

Honorius -

HELLO, from ex. NOKIA COUNTRY (Finland). Nokia is closing Finland-Salo-Factory soon. Will buy Apple iPhone as soon the v.5 is out.

Back to the Apple Macbook Pro - retina. I'd say, do the same disassembly later too. Maybe in one month Apple have done changes to the construction and you'll see that the battery will be connected using screws and also will be changed more easily. What I'm saying is that I think that Apple is trying to mess up with media and is also trying to create an illusion that all the service needs to be done in repairshops. I don't think that even Apple is that dumb that would make products unserviceable.

-JMO-

Mika -

I have have computers for more than 20 years now and NEVER had a case of failed ram. I had a Thinkpad that need to replace the... logic board :P They were covered by the 3 year warranty, so I did not pay anything. Also had a HP that needed logic board replacement. Never had problems with desktops.

Witch brings me to my next point: they have warranty, If you are worried about it, buy extended warranty.

The only way to make smaller and lighter notebooks is this, why carry 500g more all day just for the chance to upgrade your ram or pay less in case of a failure out of warranty? Everyone is complaining but it doesn´t make any sense. Buy heavier and larger notebooks them!

Thiago Gallo -

All i can hear a big sucking sound, your money being sucked up by Apple. When you purchase this abomination called computer and when it needs repair. This is how they were in the 80's and they have returned to same position in the 2012. Proprietary piece of crap, that is like a expensive Bic lighter, toss it and get a new one.

LeCritique -

Bingo!

brunobgl -

Apple’s point is that a device done well doesn’t need repairs. Until I dropped a large glass paperweight on my MBP-R 2012 display I had no need for upgrades or repairs. I have a maxed out version & still have plenty of room to expand I still recommend AppleCare.

Sandman619 -

This teardown was for the R-MBP, but what about the non R models? I guess were awaiting a teardown to confirm but from the options on apple it would seem the non-R's have a standard 2.5" drive bay and perhaps removable/upgradeable memory; in which case this might be the better mac to get? I await more info and am checking iFixit every day awaiting another teardown to confirm my suspicions?!?

Steve Hardy -

My concern is the length of time that AppleCare can be obtained. It is obvious that a machine this expensive needs extended warranty support. But the day will come that like my Mac Pro 8-Core 3.0 GHz Xeon, extensions to the AppleCare warrantee are not available at any price. I haven't inquired, but it may be that 3 years is the limit, after which the cost of repairs is astronomical, no matter what has gone wrong. My previous MacBook Pro, 17" HD, had a coffee spilled into it. Apple said the repairs weren't covered and wanted to replace, 1 The upper panel, 2. The optical drive, 3. the hard drive, 4, the logic board, 5. the video card, 6. the wifi card, 7. the keyboard... They wanted more to fix the machine than the ring market price for that model. That was one expensive cup of coffee, and it was hard not to be mad at the person who dumped it. Also since all the parts are soldered on, if any covered repair is required, it will probably entail a logic board change, and I would end up sending in the machine. Something I don't like doing will all my precious data on board. I like my Apple equipment, but all this is hard to take.

Douglas Goodall -

Imagine if cars were built this way:

- assembled with non-standard fasteners

- consumable parts cast into the engine block

- disassembly requires destroying other parts

Oops ... maybe I shouldn't say that too loudly...

Joe -

- It's basically a MacBook Air Pro. They are confusing the MacBook Pro line by doing this. They are also *#%&#@$ off people like me by jettisoning the 17" MacBook Pro. What I did notice is that they got the prices jacked up so high they now are about the same as an old 17" model fully decked out -- This goes for both the basic and Retina models. Yuck.

- Also, this is the first full, formal product release since Jobs croaked. It looks like they are taking a turn toward the closed-source side. I don't like the way this Compaq guy is running things. Late 90s Compaqs sucked for various proprietary hardware design and reliability reasons. I don't want new Macs to suck.

- The score here is basically a ZERO. No Apple computer should ever get a zero on any measure. They are dishonoring Jobs' legacy.

ingyhere -

I would have to dispute your "reparability" score.

It looks very easy to open up and replace the components.

What you should say is the "upgradability" is difficult.

Since you sell tools for upgrade, that should be considered a conflict of interest.

Steve Rea -

And this teardown explains the 65% Apple care discount for this device. A big ouch for this one indeed. It's a challenge to pry open, tear down, and might have high repair cost after 4 years.

Budi Nugroho -

Thes screen is only a one piece or have a plastic protection film ?

My screen have a superficial detail i dont know if i need change the complete screen ? the screen see perfect, only this superficial detail...

Thanks ¡¡¡

DreaDy2013 -

can the 802.11ac WiFi card from the late 2013 model work in the mid 2012 model?

cyglenn -

I swapped the mid-2012 wifi module with the 2013 wifi module and my iWatch works perfectly to unlock my system (the iWatch is not compatible with the mid-2012 module).

winterg -

Hi,

Anyone knows how to replace the hinges?

My screen is not aligned with base case properly so I'm thinking to do the hinges replacement.

jh75104 -

You can't. But you CAN align them. Remove the bottom, loosen the 6 screws of the hinges, and align the display. Tighten, and you're done. It is a 10 minute job.

Richard Rosenberger -

Why is the teardown of the MacBook Pro 15" Retina Display Mid 2012 not as detailed as the teardown of the MacBook Pro 17" Unibody Logic Board Replacement? This is not nearly as helpful as your other teardowns because of lack of detail. The battery can be replaced fairly easy with the use of Isoproyl alcohol 99.9% pure. Use a syringe to squirt it under the batteries and then work it around under them. Let it set a few minutes to soften the glue and then began prying the batteries up. As you get the batteries to pry up a little, squirt some more alcohol under them again and let it sit a few more minutes. Then begin prying them up again. There is a metal cover between the two middle batteries and trackpad, protecting the trackpad ribbon cable. Make sure you stay between the battery and the metal cover as you pry the battery loose. Take your time and you will have no problem getting the batteries loose. It took me about 30 minutes.

Gregory Dixon -

I removed my battery using your method using 91% Isoproyl. It took a little work but it turned out great!! The battery is defiantly removable and not to difficult to do. So happy to see my computer up and running like normal.

Nick Fulton -

I'm surprised no one has tried a heat gun on the battery yet.

mpias -

I have, not recommended. Thankfully it was tested on an out of warranty one that was going to be binned anyway, but the batteries warped to the point that they no longer fit properly in the case, due to the fine tolerances. All in all, a completely shite design. What is wrong with a slimline plastic frame to hold batteries in place, and screws to hold the plastic in place? This is a top of the range computer, and it's batteries are held on with tape? Better check they didn't cable-tie the screen hinges ;)

sashahilton00 -

I purchased my RMBP in June 2012. I have used it everyday. My only breakdown so far has been the power cord. I purchased an after market power cord that lasted 6 months. I went to the Apple store last year and purchased a new Apple power cord. So far it has worked well, as has the RMBP. The battery still works, although doesn't keep a charge as long as it did when it was new. I would say it is 70% of what it was when new. I believe this is the best notebook computer I have ever owned. I have had at least 9 notebooks. I have been using computers since 1987. Before I started to use Macs I built my own computers, and enjoyed upgrading my desktops and notebooks. The non-upgradability of the RMBP has not bothered me in the least. I maxed out the memory and the SSD when I purchased it. I did not purchase the Apple Care. Still using my RMBP everyday. Although I plan on upgrading to the next RMBP that is released by Apple.

David Mascot -

CAn we upgrade from 8 gb to 16 gb ram ?

OR i get you wrong ?

Kaan Karal -

Agreed! I purchased my RMBP in December 2012 and its still going strong. The only issues I have are the fact that I can't upgrade to 16GB. Didn't want to shell out the extra $400 for the upgrade. The other one is the oleophobic coating has started to come off. Probably didn't help eating in front of the screen. Bad habit. But as David mentioned, this is the best computer I have ever owned and I have had them since the first IBM PC came out 35 years ago! My previous laptop was an HP Pavillion 17" gaming system that I paid more for ($2500) than the RMBP. I have always paid extra to get the best display available. Doesn't make sense that the screen you stare at for 8+ hours a day should be the best. With the two additional monitors plugged into the lightning and HDMI ports I still have a powerful and flexible system. Not to happy about the latest MBP with the USB-C port dongle nonsense. I also for the life of me can't figure out why all Apple power cables seem to last only a couple of years.

Robert Vinci -

Replace the whole display assembly!

I managed to find an exact 15" retina display assembly for $160 (an Apple genius want over $600) and replaced my damaged one. The ifixit's instructions is a straight forward. Make sure that you are calm when you reconnect the 3 tiny connectors back, yes very tiny. Thanks to fixit.

Adisak Ratana -

I managed to replace the 15" retina display assembly myself and save big bucks. I found the new exact display assembly for $160 on eBay. Apple store want over $600. when you do the works, pls make sure you are calm and in a good mood. The instruction is a strait forward. Thanks to ifixit.

Adisak Ratana -

I removed the battery using "paracord" of strong string to cut the tape underneath the battery in a garotte fashion. Worked a treat. new trackpad and battery win :) search "How to remove 15" MacBook Pro Retina Glued Battery with a Thread" on youtube.

contact -

Interesting, I found a few difffernces with mine. Same model and all, but my 512SSD is using a Marvell control chip, Samsung cache chip, and San disk nand flash memory chips. Maybe mine is made by crucial since it almost follows the Crucial M4 drives.

The Marvell controler is the Marvell 88SS9174-BLD2

Samsung cache is K4B4G1646B-HCK0

And the NAND memory is SanDisk 05055 064GA

This is an original MacBook Pro retina mid 2012 15 inch, but Apple did replace the SSD drive under apple care once. Maybe this is a faster one then the original one it came with?

ScottJD -

https://youtu.be/fupkPz55tUo How to replace 15" MacBook Pro Retina Glued Battery with a Thread - Part 1

nbeijer -

I had to replace my CPU/GPU heatsink paste to keep my 2012 Mac Retina from overheating https://fearby.com/article/case-overheat... High Sierra pushes this hardware to the max.

Simon -

I punctured the buttery thinking it was the hard drive do not do that it gets extremly hot and smelly

Connor Casidy -

One thing that I noticed while opening mine was the difference in the screws on the back — the two screws in the centre near the hinge don’t have lips, while the others do. It took me a while to figure that out because they weren’t sitting flush when putting the back of the laptop on.

Andre K -

Can the Bluetooth board be replaced with this development board?

feasycom -

What is the board model number? Your teardown board is exactly the same board in my ‘old’ MBP, but I don’t know the model number. I’m looking for Boardlfiles and Schematics to do a repair. I’ve checked 820-3332-a, -00162, -0426 and they are not representative of my board, which I think is identical to the one in your teardown. Where does Apple hide the board number?

Robert H.

Deep Thought -

If there are no good points on the summary, why not a 0/10?

guardian10 -
