Smontaggio iMac Intel Retina 5K 27"

Scritto Da: Sam Goldheart
Pubblicato: 17/10/14
  • Commenti: 99

Smontaggio iMac Intel Retina 5K 27"

Pubblicato: 17/10/14

Smontaggio

Introduzione

Pensa allo schermo più colorato e luminoso che tu abbia mai visto. Ora, cancella quel ricordo e guarda il nuovo iMac Intel da 27" con schermo Retina 5K di Apple. Non stiamo parlando di 1080p o 4K, ma di 5K: milioni e milioni di pixel su uno schermo da 27". L'aggiunta di uno schermo ad alta risoluzione influenzerà la riparabilità del nuovo iMac Intel da 27"? scopriamolo!

Seguici su Facebook, Instagram o Twitter per le ultime novità sugli smontaggi.

  1. GrgDucWOP1QGxb1P
    GrgDucWOP1QGxb1P
    HKi6IJeupf5cFvaM

    • Come tieni insieme 14.7 millioni di pixel? Puoi chiedere gentilmente, o puoi brandire qualche nuovo hardware. All'interno dell'iMac Retina 5K:

    • Processore Intel Core i5 quad-core a 3,5 GHz, con Turbo Boost fino a 3,9 GHz

    • RAM DDR3 da 8 GB (2x4 GB) a 1600 MHz

    • Processore grafico AMD Radeon R9 M290X con 2 GB di memoria video GDDR5

    • 802.11ac Wi-Fi + Bluetooth 4.0

    • SSD PCIe e disco rigido SATA

  2. t3aKREOF2KbIZFsM
    t3aKREOF2KbIZFsM
    XaBorQfLDBAYDnWH

    • Nessuno spreca un buon numero di modello su un solo dispositivo, Apple ha riciclato ancora il numero A1419.

    • Per l'identificatore unico, questo è l'EMC 2806.

    • Sul retro dell' iMac troviamo una miriade di porte I/O e un solitario lettore di schede SDXC:

    • Presa jack / uscita ottica audio digitale

    • Lettore schede SDXC

    • Quattro porte USB 3.0

    • Due porte Thunderbolt 2.0

    • Porta ethernet Gigabit

    In step 2 photo we can read 'Assembled in USA'

    Will it be the same for all the Retina 5K iMacs? All made in the US?

    mattizeta -

    I wouldnt say all of it is assembled in US. If you look at step 5, it said assembled in china

    john -

    You get to see just how cheap made in china piece of crap it really is

    Terry Vanderpuke -

    Which technology giant do you prefer instead that does not outsource its products to China? Please name one. Then after you can't give me a name of a single one, decide which one builds the best Made in China computer. You will see why Apple iMac has out-paced every other All-in-one computer. They are simply the best in their class (All-in-One).

    Kendrich Heppner -

  3. eIGbhGOaYP46J3DU
    eIGbhGOaYP46J3DU
    pSJgr2AHAgjjQ33B

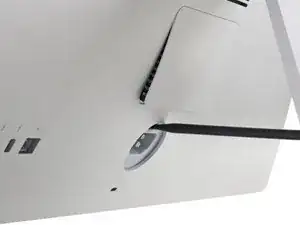

    • Riparatori, gioite! L'iMac Intel Retina 5K da 27" mantiene il familiare e facilmente accessibile sportello di accesso alla RAM degli iMac passati.

    • Per chi ha bisogno di aiuto per sostituire i bachi della RAM, Apple ha provato a dare qualche indicazione, che puoi vedere solo a metà dell'opera.

    • Per chiunque preferisca essere guidato da delle gloriose immagini ad alta risoluzione e del testo scritto con amore, anche quello è disponibile.

  4. q6KQZ3rNdrhyNl2P
    q6KQZ3rNdrhyNl2P
    JOy2VVh1nRctxKNj
    dwJTWHXE3FuqBRLe

    • Siamo ormai abituati ad aprire gli iMac con il nostro particolare tagliapizza strumento di apertura per iMac e la nostra nobile scheda in plastica.

    • Anche se la procedura richiede una mano ferma e la volontà di sostituire il nastro biadesivo tagliato su misura una volta finito, è comunque abbastanza semplice e senza cambiamenti rispetto ai precedenti modelli.

    • Dopo aver rimosso l'adesivo, riusciamo a dare un primo sguardo ai componenti interni dell'iMac Retina 5K.

    Do you need to reapply adhesive when you put the screen back in the frame?

    billibala -

    Yep! Here's how to do it on the Late 2013 model: Sostituzione strisce adesive iMac Intel EMC 2639 27".

    It'll be the exact same procedure on the Retina 5K.

    Andrew Optimus Goldheart -

    Your missing a pic… Where does the display connect to and how to remove it?

    Tom Jackson -

    If you’re looking for step-by-step instructions, check here. Teardowns aren’t meant to be used as repair guides.

    Jeff Suovanen -

    If I got hold a 2014 5k retina display. Would it work in my late 2015 27 inch iMac?

    😁

    Cary B -

  5. nDnWVSfRGSMMCtdP
    nDnWVSfRGSMMCtdP
    LBUJZi11Hu2rEWbi
    4SFV2Aj1msQnS5qc

    • La prima cosa da fare è capire se questo schermo 5K funziona davvero con la magia, o a qualcosa di più suscettibile allo smontaggio.

    • Questo particolare schermo è prodotto da LG (quindi la magia cala di probabilità).

    • Con qualche giro del nostro cacciavite, viene svelata una scheda dello schermo molto lunga e sottile.

    So is this imac sharing the same LM270QQ1 panel as the future Dell Ultrasharp 5K monitor?

    (same way as the Dell UltraSharp U2711 shared the LM270WQ1 as the normal 27" imac?)

    nikos232 -

    My iMac Late 2013 (non-5K) display damaged need replacement and I'm about to order a new display assembly.

    Silly question, can I replace the standard QHD display with 5K display - will it work?

    autodubai -

    Hi, have you make the change your iMac 27 "late 2013 with 5k ? i have the same and i don't know if works or not !!!

    Thanks

    Smadoiu Florin -

    For any latecomers whom may be wondering if they can just swap in a 5k LCD panel into a non 5k iMac, the answer is NO - It will NOT work. See step #7... the LVDS connectors are different due to different bandwidth requirements.

    Midnight Sparky -

    Where would you buy a replacement 5K panel? If the controller board is damaged, can this also be bought separately?

    Stephan Du Toit -

    I found one of my ribbons on this board is broken. Can't it be replaced?

    Alfonzo Anthony -

  6. gymJxgdZPPNgPyPp
    gymJxgdZPPNgPyPp
    GRYRXBZjbTWKKBeW
    txaCARMSLWBAiaao

    • Diamo un'occhiata a cosa permette di funzionare a 14.7 milioni di pixel con una risoluzione di 5120 x 2880 su uno schermo da 27":

    • Bus Transceiver Texas Instruments NH245 8-Bit Dual-Supply

    • Generatore programmabile di tensione e calibratore vcom Texas Instruments BUF16821

    • Timing Controller Parade Technologies DP665 LCD

    • Peensiamo che questa sia una versione modificata da Apple del Timing Controller DP663 LCD

    • Regolatore Buck Texas Instruments TPS65270 Monolithic Dual Synchronous

    • IC Bias LCD per TV completamente programmabile ad alta risoluzione Texas Instruments TPS65168

    Is there no way to hack this part to make it work like a standalone display?

    royrochlin -

    I found one of my ribbons on this board is broken. Can't it be replaced?

    Alfonzo Anthony -

    I, like Roy, would like to know if there is an adapter board or pin-out for a displayport, or hdmi (doubtful), connector?

    Perhaps we can squeeze in an ITX board in here one day with the Coffee Lake 4-cores show its age (with 16 core AMDs in ITX low-profile boards available!).

    eduncan911 -

  7. pYHRZpMG6v3p6uIL
    pYHRZpMG6v3p6uIL
    rXpKqypfgnes1VhW
    EgscnBEfIAGEIX6Q

    • Escludendo il nuovo schermo, i componenti interni dell'iMac Intel Retina 5K da 27" sembrano gli stessi dell'iMac da 27" dell'anno scorso.

    • Infatti, mentre scaviamo più a fondo, scopriamo che sono quasi esattamente gli stessi.

    • Avremmo documentato la rimozione della scheda madre, ma l'avevamo già fatto! Seguiremo la guida per la scheda madre dell'anno scorso: leggila e poi torna qui mentre noi saltiamo questo passo.

    • E dopo aver seguito la guida alla lettera, ecco le differenze che abbiamo scoperto all'interno:

    • Il cavo dello schermo Retina 5K è leggermente più largo, per supportare quei pixel in più.

    Now, to find an LVDS to DisplayPort adapter logic board... For, you know, those of us that want to swap in a low-profile ITX 16C Ryzen "proper replacement." ;)

    eduncan911 -

  8. EWttSGR4I3l6eCMt

    • Vediamo quali IC monta questa prevedibilmente familiare madre:

    • GPU AMD Radeon R9 M290X

    • Processore Intel Core i5-4690

    • Proprio come l'anno scorso, la CPU non è saldata alla scheda madre e può essere facilmente sostituita (l'abbiamo lasciata nella sua presa solo per scattare la foto).

    • GDDR5 SGRAM SK Hynix H5GC2H24BFR 256 MB (256 MB x 8 moduli = 2 GB totali)

    • Delta Electronics 8904CF 143003

    • Platform Controller Hub Intel DH82Z87 (Z87)

    • Fairchild Semiconductor DE32GV

    What is the model of this logic board and where can I find one? Any idea the model or part number of the 4.0ghz board with 4gb display memory?

    ojcmolloy -

    There is not any cooler in the CPU. Nacked CPU? Maybe the i7 need a cooler and i5 could run without any cooler?

    Very impressive to see a nacked CPU.

    Well done iFixed!

    Fixerr -

    They probably cleaned it for the purposes of photographing it.

    jussnf -

    jussnf is correct, we cleaned off the thermal compound to read the markings.

    Andrew Optimus Goldheart -

    See Step 7 ... Logic board removal is another guide. There is a heat sink.

    satishguild -

    Could be very interesting the CPU replacement when the next core i7 appear!

    But will be fully compatible?

    Also could be interesting to buy this iMac, and later go up to the next Mac Pro generations and use this "old iMac" like a Retina Display.

    Faiolo -

    @Faiolo

    These new iMacs can't be used as external displays. The current version of DisplayPort can't handle the bandwidth necessary for 5k displays over a single connector, so Apple decided to cut the feature rather than only support 4k resolution, or require two connectors. So, the screen is stuck with this computer, and you can't use it with any other.

    Cryo -

    The CPU LOOKS upgradable!

    James Katt -

    can this be upgraded to the new 8 core i7 ???

    Paul Rabinowitz -

    Probably not. I believe the processor options available for this have 84 and 88 watt max TDPs, while the 8 core I7 is rated at using up to 140 watts. It would most likely not be able to dissipate the heat under load.

    Cryo -

    Is the headphone socket part of the right speaker assembly? It does not seem to be on the logic board.

    Dominic Dunlop -

    Is the GPU removable for upgrade purposes ?

    I would like to boost the graphics to handle VR :)

    Richard Shine -

    Is that an extra SATA port? Or is that one already used? I did the double SSD upgrade on my 2011- wondering if this one can do it.

    Jordan Shababy -

    It's a single SATA port... But, you don't want to touch that (or just use it for slow storage, like a cheap 2 TB QLC drive).

    Instead, get an NVMe M.2 PCIe adapter, and plop in an PCIe 3.0 NVMe drive and enjoy ~2500 MB/s read/write.

    eduncan911 -

  9. r5nmCfZAVAQfZr4M

    • Lato anteriore della scheda madre:

    • Controller Broadcom BCM5776 Gigabit Ethernet

    • Controller audio Cirrus Logic 4206BCNZ

    • Controller Intel DSL5520 Thunderbolt 2

    • LMF4S1EH 5BBCIG 47A6HPW

    • Sensore della temperatura Microchip Technology 1428-7 420BE5A BMY System Management Bus (SMBus)

    • Controller Intersil ISL6327 Enhanced 6-Phase PWM

    The LMF4S1EH 5BBCIG 47A6HPW is the SMC chip ;-)

    perfaram -

    Here is the correct URL for the Intersil Buck voltage regulator: ISL6327 URL and here is the PDF Spec sheet: ISL6327 PDF

    Dan -

    Unfortunately, that part number for the temperature sensor appears to be invalid. Microchip has no record of any such item. and that link doesn’t go to a product. I have a ticket open with Microchip to try to identify the part correctly, but haven’t heard back yet.

    venusprobe -

    Got the 17,1 iMac and both the 820-3298 and 820-3299 boardviews are like this picture (except GPU RAM) but my board is different.

    Looking at this picture at the bottom of the board there's the J2550. At its right-hand side there's one of the U7000 and different from the picture (and from the boardview) mine has its resistors soldered above it not around. And it was such a huge pain to get it right I don't even know how I managed to get my board working again - can only hope it'll be good enough to last a few years…

    Carlos Ferrari -

  10. PbQAPKwGOYbMTIqh
    PbQAPKwGOYbMTIqh
    dujVvncDt2YihR31

    • Questo sembra essere lo stesso SSD PCIe SanDisk che abbiamo trovato nel MacBook Pro Retina da 13" di fine 2013.

    • Come prevedibile, troviamo gli stessi IC:

    • NAND Flash SanDisk 05131 016G 16 GB (quattro per lato, per un totale di 8 x 16 GB = 128 GB)

    • SDRAM DDR3 SK Hynix H5TQ2G63DFR 2 GB

    • Controller SSD PCIe Marvell 88SS91383

    What is this for? Sorry if this is a dumb question.

    radford5000 -

    Apple's Fusion Drive - They combine the SSD and spinning drive into one logical volume. They use various heuristics to then keep the "most frequently used" files stored onto the SSD. Most of the system files wind up on it along with most of my docs it seems.

    modgigcist -

    what connection port is this? the card looks longer than normal full length mini pcie, have a m2 kind of screwing notch, but connector look more like pcie

    dennis97519 -

    A used ssd from a Macbook Pro 13 late 2013 or newer will work with the late 2015 5k imac? And those adapters they sell on eBay to use a regular m2 ssd?

    Alber Einsten -

    Hi, is this the same as the late 2013 iMac? thx

    LApo J -

    What’s the maximum capacity SSD?

    Snarky John -

    Do all 27” Late 2015 iMacs come with an M.2 port to install an ssd card? Or is it only available for the fusion drive models?

    Josh -

  11. m63oETaZVww4wCNV
    m63oETaZVww4wCNV
    sATJFV4Xcb2Gheq2
    DLFARdBBlIt3KnQA

    • La scheda AirPort/Bluetooth, identificata dal suo numero modello BCM94360CD, è la stessa che abbiamo trovato nell'iMac Intel da 27" deell'anno scorso:

    • Trasmettitore Gigabit Broadcom BCM4360KML1G 5G WiFi 3-Stream 802.11ac

    • Modulo Front-End Skyworks SE5516 Dual-Band 802.11a/b/g/n/ac WLAN

    • Bluetooth 4.0 Single-Chip Broadcom BCM20702 HCI Solution con supporto Bluetooth Low Energy (BLE)

    and what is the connection port for this?

    dennis97519 -

    is there any this port to pcie mini adapter?

    dennis97519 -

  12. KtF5YuVRiVqBUgTj
    KtF5YuVRiVqBUgTj
    JLbAAcjqmqKYuYLG

    • Punteggio riparabilità iMac Retina 5K da 27": 5 su 10 (10 è il più facile da riparare)

    • La RAM è sostituibile dall'utente senza aprire la copertura, grazie allo sportello di accesso.

    • Puoi ancora sostituire il disco rigido e la CPU all'interno del dispositivo, anche se devi tagliare dell'adesivo.

    • I componenti sono modulari e abbastanza semplici da rimuovere.

    • Il vetro e il pannello LCD sono fusi insieme e non ci sono più dei magneti a tenere fermo il vetro.

    • Dovrai rimuovere a mano il nastro biadesivo originale ed applicarne di nuovo per poter richiudere questo iMac.

    A lot of people like me want to buy a standard config model from the store and then upgrade the RAM and Storage ourselves. This teardown story claims this can be done. But I wonder if more information about the storage can be provided.

    The fusion drive looks like a regular hard drive with something plugged into the motherboard. What happens if we replace the regular drive with SSD. Does the Fusion SSD still operate independently, meaning more overall SSD storage? Is anything software related impacted?

    BMan -

    I sort of answered my own question. I want to get the standard iMac so I can take delivery today which means getting a 1TB fusion drive. I was curious about upgrading the regular hard drive part of the fusion drive.

    I'm not so bright so I didn't understand what PCIe was but now I see it is just a card. The Retina SSD is PCIe based....meaning, if you want to upgrade the SSD part of the fusion drive, you simply buy a larger PCIeSSD card. Google Mercury Accelsior E2

    You can also upgrade the old HD part of the equation.

    But here's the thing. There's something even better. You can throw these PCIe based SSD cards into an external enclosure and access then through the Thunderbolt port. That will give you the best possible performance..better than upgrading to Apple's SSD.

    So the short answer is if you are in a hurry and want a new iMac retina 5K, go ahead an buy one knowing you can not only upgrade the internal SSD and HD but also access an EVEN FASTER storage solution via the Thunderbolt port.

    BMan -

    Be wary of saying that thunderbolt will be faster than apple's internal disk speed. Because most thunderbolt cases have a PCIe 2.0 for each drive slot. You only start to get faster than the internal speed once you start striping drives. A PCIe 2.0 lane is about 500 MB/s with 20% taken for thunderbolt parity. My new 2TB EVO only gets about 370MB/s RW while my old RAID0 set of 2 junky drives gets about 660MB/s to 700MB/s

    Ryan Ragle -

    I plan to replace my ssd to samsung 950.

    nuieskater -

    Would very much like to know: Can the stand be unscrewed and removed after disassembly? I see there are 3 screws on each side of the internal spring attachment but even if these are removed it is unclear to me if the stand can then be detached from the large metal backing if the screws / springs are removed. Does it appear as though it can be removed?

    sean2078 -

    Yes it can be detached easily. but be careful its a long sensitive work to reach there and back.

    Babak -

Autore

Sam Goldheart

Membro da: 19/10/12

465140 Reputazione

47 commenti

This site is way cool! Is it easy to upgrade the CPU once inside?

Matt -

Absolutely! Same procedure as last year's model: Sostituzione CPU iMac Intel EMC 2639 27".

Andrew Optimus Goldheart -

Looks like you can upgrade to a new cpu (Haswell refresh probably) since it doesn't appear to be soldiered on

Daniel -

Thats unlikely, it depends on the mobo, i have not heard any confirmations of this so far.

adriandatriguiran -

Any idea what the part number is for the 8GB modules? This shows 4x2GB which is the standard. I ordered that memory configuration, expecting I can source new 8GB modules for less than Apple's price.

timothyweaver -

looks like 9to5mac found your answer http://9to5mac.com/2014/10/17/retina-ima...

Daniel -

Any plans to sell that groovy wedge from Step 4?

wisacks -

Why didn't you click the link?

iMac Opening Wheel

PhilBoogie -

That's not wedge-shaped at all! Did find the wedge in question here.

wisacks -

I am wondering about the storage configs because there is a slot for a SSD and a hard drive so if I only get the SSD option from apple does that leave the HDD slot free for me to put something along the lines of a 6TB hard drive in there?

Friedrich Winkler -

I'd also love to know the answer to this question!

Tim Camber -

Just got mine with an SSD, while I didn't tear it down, it's listed as SATA APPLE SSD SM0256F.

ZMonty -

This is also my thought. The Fusion drive is a HDD and a 128GB SSD, so would getting a 512GB SSD iMac and then adding your own HDD have the same effect. This question needs answering!

RaviJ -

the HDD area will be empty but will also be missing the cable, so you'll need to get the cable if you want to add a hard drive.

lucasgodfrey -

if directly buying a ssd without fusion drive (and larger than the basic 128gb given with fusion drive) can I add a hdd after and make a larger and better (and cheaper) fusion drive myself or will the hdd slot inoperating

jo sevb -

Do you know if there's a SATA and SATA-Power cable included in the non-fusiondrive therefore SSD only configuration of the iMac?

(based on the question above)

mahatmafatal -

There is NO power/SATA cable supporting the 3.5" bay included in the SSD only version of the iMac Retina - you will only get the cable if you order the Fusion drive. iFixIt does not mention this and neither does OWC. I found out the hard way.

If you want to add an internal SSD you will have to source the Apple cable - I have yet to find it. If anyone can point me in the right direction it would be much appreciated!

The open power/SATA ports are facing the back of the machine and require 90% disassembly to access - as per iFixIt's guide.

The other issue could be that Apple reads the HD temperature from the drives they support - no support means that the iMac fans will run at 100% all the time. As far as I can tell, you can either run an app that overrides fan control or you can buy an OWC cable that fools the system - I believe that it merely short pins 2 and 7 to turn off this feature.

I moved from an older Mac Pro to the new iMac Retina and I am not a happy camper.

digitaljustin -

Can we imagine replace the display of iMac late 2013 (i7 GTX 780M Fusion Drive) with the retina 5k display ?

yannick -

No, the displays are not compatible. The Retina 5K display has a different data cable.

Andrew Optimus Goldheart -

im guessin about 2200 dollars profit on each unit

bellsouth1972 -

Awesome job like always.

I do have a question, where does the hot air goes, after is moved by that fan?

I ask, because I don't see any vents.

GrTitan n -

You can see the exhaust vent in the 2nd picture of step 3: Smontaggio iMac Intel Retina 5K 27"

It's located directly above the RAM access door.

Andrew Optimus Goldheart -

Maybe I'm missing something - I've not had an iMac since the first Intel version was released in 2006 - but can I replace the Fusion drive with my own 1TB SSD?

cbd2dbc -

Is there any change in the hinge mechanism ?

Specially the two circle plastic washers that place center of it ... like any material change or design improvement ?

Amir -

I understand from other forums it's possible to disable the fusion drive setup via terminal commands. If you were to replace the stand 1TB hard drive with 1TB SSD, is it possible to then install OSX & Apps on the 1TB SSD and avoid having to use the SanDisk PCIe SSD ?

Also if you opt to purchase the iMac with flash storage only, flash storage would imply ssd rather PCIe SSD ?

ekynox -

Any explanation why the fan in the 5K iMac is oh so much louder than in the predecessor? I don't think I have ever heard the fan in the December 2012 27", but the one in my 5K blows as soon as even a hint of a workload is required.

phototrek -

Hi, is the RAM identical to the one found in late-2013 iMac? The Apple's website seems to indicate it is the same 1600 MHz RAM, but I need to know it is, thanks!

petarkg -

There are many issue being reported with the hinge failing on the older iMac (2013), the culprit being two small plastic washers breaking which results in the screen flopping forward.

I would really like to know if this design has changed for the newer iMac model.

Jaybe -

I want to install a modified, (shortened), stand. It appears that the stand can not be removed as was possible with the original iMac using a credit card to unlock the mechanism. Is this correct? If so then the only way to remove the stand is to open the iMac up? If so, shame on Apple!

Paul Yarnall -

I'm start to getting worried about repairing because it's hard to do so and I am aware that I could break or damage internal modules unnoticed. There're hardly to find mac professional in my country except in apple store which they're not support to upgrade anything.

Mr. Hymn -

He 27" iMac had a lot of issues related to cooling leading to frequent burn outs of the graphics card (2011-2012). Do you have any comments on that wrt the new 5K iMac. I can see they changed the exhaust slots, etc.

shantanughosh -

I'm about to order a late 2015 27" with 512gb "Flash".

• Since there will be no HDD installed by Apple will there still be everything I need to install my own?

• If this is the case is there any reason why this drive couldn't be an SSD?

• 2.5" or 3.5"?

Tony Visconti -

I have this same question on a late 2015 iMac 5K with an 256 internal flash disk. Right now, I have an additional external Samsung 1Tb SSD which I placed in a standard USB3 housing but it would be cool if it could go internally. If you find anything, I'd be glad to share.

Jacky

Jacky Bendayan -

hi guys tonight I did take out the flash drive and 3TB HDD out of the iMac and installed 1TB SSD instead now I am installing the OS by the Command +R. Everything looks fine. I searched everywhere but no one did this. Thought you guys may wanna know that.

Babak -

I can't believe I even started reading this nonsense. What on earth does more pixels have to do with repairability? I think you people try too hard, seriously. The whole "review" business has turned into a huge joke. Oh look! A backplate! And this over here.. A PCIe SATA, not surprisingly something that they've used in a different model because WHY THE F*@K NOT?! Terrible. Absolutely terrible. Do you have to pretend to be a inane moron to write reviews or does it only help?

Oi -

I have a late 2014 iMac 5K Retina with 32gb Memory. Is it possible and feasible to replace the CPU with a 2015 as as to increase the Memory?

Jason B -

How hard would it be to change the iMac to a VESA compatible one instead of using the stand attached to most of them? You can't do this easily I am sure.

Taylor Harris -

there is a lot of reference to older version of the same model. every teardown should be independent. i still have no idea what the two huge plastic parts on left and right are. I guess its sound but really that large?

eckndu -

Can I replace the GPU

muberuka justus -

My headphone jack broke.

Is it part of the logic board, or a part connected to the logic board?

It broke within the 2 year warranty, will Apple repair it?

Spunkie -

Beautiful explanation, charting, and breakdown!

transattic -

all iMac 27 5K Late 2015 with PCIe SSD installed for default have a SATA port free?

Nicola Albano -

2019 iMac 27" 5K Backlight Cable replacement?

Pedro Montes -

Can you replace the glass panel without replacing the internal screen? My glass is cracked but otherwise, the monitor and everything else looks and works just fine.

Melinda Rivers -

Is the iMac’s built-in power cable receptacle removable in these models? I have completely gutted my 2015 5K and I can’t see any obvious way to remove it.

Zane Parkinson -

I am impressed with the quality of this published event and its relevancy for today! Well done Sam and team!

Deeno -
