Sostituzione case posteriore iPhone 6s Plus

Passo 1

Prima di iniziare, scarica la batteria del tuo iPhone sotto il 25%. Una batteria al litio-ioni carica può prendere fuoco e/o esplodere se viene perforata accidentalmente.
Spegni il tuo iPhone prima di iniziare lo smontaggio.
Rimuovi le due viti Pentalobe P2 da 3,4 mm sul lato inferiore dell'iPhone, vicino al connettore Lightning.

Make sure you use the correct screw driver tip to remove these screws, which for the iPhone 6s Plus is the P2, otherwise you may strip the tip of the screw making it 10 times harder to remove. If once the screw is lose, it will not come off, use a magnet to remove it.

Miguel Perez - 30/12/17

If I do it by myself, will it damage the water resistant strip?

I know iphone 7 have it ,but I am not sure 6s plus have it.

Ganqian Zhu - 02/01/18

iPhone 6s has an adhesive gasket under the display, similar to the iPhone 7—however, it doesn’t add much in the way of waterproofing since the 6s has non-sealed openings in other parts of the phone. Water resistance on the 6s is primarily internal (seals around the logic board connectors, etc.). It may still be worthwhile to replace the adhesive on the 6s in order to help keep the display firmly seated so it doesn’t move/wobble at all under pressure, but the phone will continue to work fine whether you replace the adhesive or not.

Jeff Suovanen - 08/01/18

Salve nella procedura iniziale di smontaggio display con la ventosa non è menzionato il fatto di scaldare i lati del display per “ammorbidire” la striscia che incolla il display alla scocca.

Non è necessaria la cosa o è consigliabile ?

grazie

Hello, in the initial disassembling procedure with the suction cup, it is not mentioned how to heat the sides of the display to "soften" the strip that glues the display to the body.

Is not the thing necessary or is it advisable?

thank you

Daniele - 17/03/18

You’ve probably received your answer by now but for future enquirers, it does help the process of taking the screen off if heat is applied to the screen. If you have a hair Dryer use that on a low setting to heat the edges of the screen until it’s almost too hot to touch then slip very thin metal spudger around the edge to cut the adhesive. The carefully lift the screen with the help of the spudger and continue with your repair

Cheers Wayne

Wayne Lyell - 01/05/19

How do I know that the Battery has ZERO Charging Cycles on it when it arrives ? Is there a (downside) to Higher Capacity batteries ? It is INCREDIBLY DIFFICULT to maintain a “Zero Chinese Products Lifestyle”, so how do I know that I’m not getting a deficient Chinese battery, potentially a refurb. battery ?

integritybuilders - 18/03/18

When your repair is complete, you can use coconutBattery to check your new battery stats and cycle count. (A properly tested battery may already have a charge cycle or two on it.) Avoid higher capacity batteries on iPhones—they’re generally either gimmicks, unsafe, or both. As far as the quality of the part, that comes down to how much you trust your supplier and whether they guarantee the product.

Jeff Suovanen - 19/03/18

So I need to empty the battery to zero percent?

johnpatrickanat - 08/04/19

Below 25%, exactly as stated in the instructions. There’s no benefit to draining it further than that, and in fact you’ll slightly shorten the service life of the battery by draining it all the way to zero. Follow the instructions exactly as written—if you go off-script, you’re a lot more likely to break something.

Jeff Suovanen - 08/04/19

So my screen shattered completely and the screen first had colored lines on tge while right side then it went out completely. If i get an lcd and digitizer replacement I'd that oing to fix it

shellietheleo - 04/07/19

I would initially recommend a well-lit, comfortable area and placing the screws on a white piece of paper with the screw sizes written down (apparently there are magnetic mats, also). Also, I found placing the phone on a paper towel is good so that if a screw is dropped, it will lessen the likelihood of bouncing away.

Lou Fazio - 30/12/19

I recommend that, before you even lift a screwdriver or plug in the hair dryer, get a piece of paper and a pencil. As you unscrew and remove the parts, write the size and/or number for that step and put them by their label. I also used a microscope to identify the screw heads (I'm 75 and my vision is not what it used to be). Laying them out in order, I just went backwards when putting them all back in. I used an anti-static cleaning cloth instead of paper, but I should think they both will work.

N.B.: my kit had a nice pretty blue plastic sheet with a black outline on it. It was only when I put the whole phone back together and was packing up the supplies and tools that I realized it was a replacement gummi seal. A LABEL WOULD BE VERY USEFUL HERE!

I am a retired engineer, and aside from the size of the bits and bobs, it was a piece of cake! Thanks...you saved me $75!

P. Roberts -

Passo 2

Se non disponi di un Anti-Clamp, segui i prossimi tre passaggi per utilizzare una maniglia a ventosa.
Applica del calore moderato sul bordo inferiore dell'iPhone utilizzando un iOpener o un asciugacapelli per circa un minuto.
Il calore ammorbidisce l'adesivo che fissa il display, rendendolo più facile da aprire.

This is important. I’ve serviced a lot of iphones/ipads for my family as a hobby in the past.

The adhesive was so tight, I cracked the screen trying to pull it/pry it off.

I highly suggest heating at least the bottom edge enough to soften the adhesive

garbage911garbage - 29/04/19

I didn’t have an iOpener, nor a heat gun; however I do have a small personal size hand pillow filled with feed corn. Two minutes in the nuke machine got it plenty warm, and smelled like fresh popcorn too.

bradiac - 22/06/19

I would suggest that you are not shy with the hairdryer. A high heat on the bottom of the phone for at least a minute, if not more, if required.

Mark Taberham - 20/02/21

Passo 3

Con l'apertura del display del 6s Plus, si staccherà una sottile striscia di adesivo attorno al perimetro dello schermo. Se preferisci sostituire l'adesivo, tieni pronte delle nuove strisce adesive prima di continuare. È possibile completare la riparazione senza sostituire l'adesivo e probabilmente non noterai alcuna differenza nella funzionalità.
Applica una ventosa nell'angolo inferiore sinistro del gruppo display.
Se il tuo schermo ha molte crepe, coprirlo con uno strato di nastro adesivo può consentire alla ventosa di aderire. In alternativa alla ventosa può essere usato un nastro adesivo molto resistente. Se anche così non funziona, puoi usare della supercolla (cianoacrilica) per incollare la ventosa al vetro rotto.

take out screws first!!

Yoav Karmon - 15/04/17

Make sure you use the right screw driver tip for i phone 6s Plus, which is the P-2. If the screw will not come off once is lose, try using a magnet.

Miguel Perez - 30/12/17

My cracked screen prevented the suction cup from sealing. SOLUTION: With a piece of clear packing tape across the screen, the suction cup will seal and pull.

Jim Cowles - 17/01/18

I broke my iphone screen in the first step!

Pierre Bertram - 06/10/19

This screen removal step got more wrestley than I anticipated. The adhesive is quite strong. I used a flat-ended razor tool that I have to begin the prying - I don’t know how I would have got it started without this.

Lou Fazio - 30/12/19

Ok - just got my battery replacement kit and even got the opening kit for added insurance just in case. Settled down to startwork after carefully cleaning my (immaculate) screen - no scratches or anything, with rubbing alcohol, removing screws and warming with a hair dryer, only to find the suction cup provided in the kit is worse than useless! It won’t stick to the screen well at all. When it does - it pops off at the lightest pull :-( Now what do I do to get this started?!

CoffeeCup -

Passo 4

Tira la ventosa con una pressione forte e costante per creare una piccola fessura tra il pannello anteriore e il case posteriore.
Tirare troppo forte potrebbe danneggiare il gruppo display. Applica una pressione appena sufficiente a creare una piccola fessura tra il gruppo display e il case posteriore.

I had a shattered front glass panel so I could not get the suction cup to seal properly. I tried a couple of different ways to get good suction but to no avail. I eventually used a Stanley knife to pry up the corner so I could get the spudger into the opening.

John Architzel - 23/06/17

A really high quality packing tape over the entire screen will usually be enough to use the suction cup on a shattered screen.

djwooten - 11/07/17

I used a suction cup on each side to provide counter traction. I braced the iphone between my knees and pulled apart while my helper inserted the spudger

jkanne - 09/09/17

This was by FAR the most difficult part of this whole thing. I confess the spudger was not cutting it so I used a butter knife to get into the small opening first, then used the spudger to go around the screen.

Julie Sanchez - 27/12/17

Hey everyone, if you never have done this part before be aware there is an extremely strong adhesive around the lip of the screen and once again is extremely strong. I had to get a friend to insert the pry/pick into the small gap while I used one hand to brace the phone down and the other to pull the suction cup without it digging into my hand. Go slow, it took me 5 tries because I didn’t realize how strong the adhesive was.

bartmistrot - 13/01/18

I also had a badly cracked lower screen - that glass was actually threatening to pull off the phone in chunks during this step, even with packing tape. Resorted to @j2arch’s tip and inserted a utility knife vertically into the seam between the display and phone body. Was able to lever the glass enough to get the spudger in there.

Jason Augustyn - 22/01/18

I have replaced sevrel screens for my sister in law and my niece. The packing tape has worked every time and that’s with it Shattered and pieces already falling out. You have to make sure the packing tape goes to the edge of the screen but doesn’t touch the frame. I have the plier like screen remover and use that it is much easier to remove the screen by your self with that tool. I also have the little finger suction cup that comes with the kit here. I bought the plier suction cup tool When I had to replace the screen that had the pieces of the screen missing and I don’t regret spending the extra money for that it has made a world of difference. I do this as a hobby it’s not a job for me. The electric divide repair kit from Lowe’s is also a very good kit to help. If you’re only going to do it once the kit that comes with the package is a great deal from ifixit. Well worth the money to spend the little extra to get the kit if you all ready don’t have the tools.

Brent - 14/03/18

If you try to use the spunger near the home button and try to pry it can crack your screen. This happened to me.

Jeffrey - 22/11/18

Same thing happened to me. This should be a big warning in these steps. If you have a small to moderate crack in you screen, but you weren’t planning on replacing the screen at the same time as another repair inside, there’s a risk of damaging the screen further and making it inoperable.

DW7ACCT -

I found it easiest to use two suction cups. One on the front as directed, and a second one on the back. Give the spudger to your assistant, and have them slip it in place while you pull the display from the case.

gordojenkins - 07/07/19

I gave up with the suction cup as it wasn't working for me with a cracked screen. Having heated the bottom of the phone with a hair dryer with a high heat for a good minute or so, I used a safety scraper (essentially a razor blade in a holder) along the bottom of the phone to separate the screen from the body of the phone. I used the scraper vertically between the bottom of the screen and the phone body and levered it sufficiently so that I could fit the spudger between the screen and the phone body. My experience when I first used the spudger around the frame was that the cracks in the screen caused the screen glass to separate from the frame, so I had to re-do it and ensure that the screen frame was separated from the phone body.

Safety scraper:

https://www.amazon.co.uk/Unger-CD170-Win...

Mark Taberham - 20/02/21

Passo 5

Il posto più sicuro da dove cominciare a far leva è l'intaglio nel pannello anteriore sopra il jack cuffie.
Mentre continui a tenere tirata la ventosa, inserisci la punta piatta di uno spudger nella fessura tra lo schermo e il case posteriore, direttamente al di sopra del jack cuffie.

This was by far the hardest part of the repair for me. Getting leverage while finding a way to prod with a spudger is a challenge in coordination. I used a second spudger with point holding the phone down by the headphone jack, with the other end of the spudger anchored to my desk.

drpotter - 12/07/17

When warmed, the suction cup was useless. Using the tip of a knife blade, was able to get it separated enough to insert spudger.

hutland - 09/02/20

For me this was the most time consuming task. I used a hair dryer for heating. I found a very tight adhesive. For a moment I thought of abandoning my efforts and take the assembly to a professional repairman. But as they say, patience is a virtue.

After fiddling for about 20 minutes, I achieved a barely noticable opening. So I decided to change the strategy. Instead of applying heat all over the base, I preceeded with small steps with heat concentrated near the opening. I applied intense heat only for about 15 to 20 seconds and immediately working with spudger. It took about an hour to completely open the case. It worked.

Thanks for reading.

- Mr Gamma

Gamma Pailvan -

I also struggled with this step. Lots of heat, 3 different suction cups, I finally could see a small gap... much too thin to fit even a piece of paper into. A video on another site said it was the easy way. I used a sharp craft knife barely into the seam between metal and glass and pried slightly. And it started up. Still a pain freeing the rest of the adhesive. Perhaps the adhesive really sets up over the course of 5 years? I have it hinged open now, so onto the next steps.

Mark Tollefson -

Passo 6

Fai ruotare lo spudger per allargare l'apertura tra il pannello frontale e il case posteriore.

just changed the screen, but due to the tape along side the screen , it is best to heat a little so the glue losses and you can get the screen off better, like indicated

Bart Blanckaert - 13/03/18

Passo 7

Mentre continui a tirare saldamente la ventosa, fai scorrere l'estremità dello spudger sotto il lato inferiore sinistro del display.

Passo 8

Fai scorrere lo spudger lungo il lato sinistro del telefono, tra il pannello frontale e il case posteriore.

Passo 9

Inserisci la punta piatta di uno spudger sotto il lato destro del telefono.
Fai scorrere lo spudger lungo il lato destro.

Passo 10

Usa una leva di apertura in plastica per tenere giù il case posteriore mentre tiri la ventosa per aprire il telefono.
Non rimuovere completamente il display per non danneggiare i cavi dati che collegano lo schermo alla parte superiore dell'iPhone.

Passo 11

Tira la sporgenza sul lato superiore per rimuovere la ventosa dal pannello anteriore.

Remember to apply the screen gasket on the re-assemble. The gasket is provided in the kit but not mentioned here on the instructions.

Won Hong - 07/01/18

There’s a link to the entire gasket replacement procedure in Step 21.

Jeff Suovanen - 08/01/18

Passo 12

Afferra con delicatezza il gruppo display e sollevalo verso l'alto per aprire il telefono, usando le clip nella parte alta del pannello anteriore come una cerniera.
Apri il display a un angolo di circa 90° e appoggialo contro qualche cosa per tenerlo sollevato mentre tu lavori sul telefono.
Non aprire il display oltre 90°: è ancora connesso alla parte alta del telefono dai cavi del display, del digitizer e della fotocamera anteriore.
Usa un elastico per tenere il display in una posizione sicura mentre lavori. In questo modo eviterai di forzare i cavi del display.
In caso di necessità, puoi usare la lattina di una bibita ancora chiusa per tenere sollevato il display.

if the display cables are damaged how can you tell ?

Smiley McSmilebot - 22/01/20

In theory, I like the idea of propping up the screen with a rubber band and box/soda can like this, but after ripping the FaceTime camera cable twice, I realize that this method puts too much stress on the cable because it places the screen so far back. Even in this photo, you can see that the cable is taut. I’d recommend just holding the screen with your free hand to put the least amount of stress on that cable as possible.

Ben Estabrook -

Passo 13

Rimuovi le due viti Phillips che fissano la staffa del connettore della batteria alla scheda logica:
Una vite da 2,9 mm
Una vite da 2,3 mm
Nell'esecuzione dei passi di questa guida, tieni nota attentamente delle due viti in modo che ognuna di esse sia riposizionata al suo posto in fase di rimontaggio. Una vite installata nel posto sbagliato può causare danni permanenti al dispositivo.

FYI - I used some blue painters tape wrapped around a piece of cardboard to hold the screws and brackets in place, in order, so they did not get lost. Some of those screws are MICROSCOPIC so be careful!

I also suggest having very good lighting, even a camping headlight for hands-free well lit work space. You will thank me later :-)

Julie Sanchez - 27/12/17

Use the bit labeled “PH000”.

Joe Teichert - 04/03/18

PH000 bit just wants to free-spin in the 2.3 mm screw. no bite in the head at all. had no difficulty removing the 2.9 mm screw with the same Phillips. had to abandon battery replacement effort.

Benjamin Stalcup - 07/03/18

For this part, neither PH000 or Y000 worked. Technically, it’ll set you back 31$ because you will need the PH00 screwdriver for this part, and the part where you need to open the screen. They have ph00 screwdrivers in every hardware store and even ifixit.com. just know that they put the wrong screwheads for you

Jack Daniel - 18/03/18

Do not lose track of which hole these screws go into. They MUST be put back into the correct hole that they came out of. If not, you will get the dreaded “long screw damage” on the mainboard, and that will be the end of the show.

Just remember where these screws go, and it will be fine.

Harry McDow - 25/04/19

Ended up employing a Philips #0 from a regular jeweler/precision kit on the 2.3mm screw. Bits seem a bit off for this step.

Vance Bell - 17/04/20

Passo 14

Rimuovi la staffa del connettore della batteria.

Does it matter if the brackets arent put back in the phone? I bought a used phone and brackets are missing. Thanks!

Coupon Crazy - 01/06/18

Auch die Abdeckung ist angeklebt. Also mit etwas Vorsicht und Geduld rangehen.

eckhardd@icloud.com - 17/12/20

If you have forgotten your High School German -

The cover is also glued. So take some care and patience.

Glen Paetz - 31/03/21

My bracket actually has a black wire connected on the underside that is attached to the metal bracket (with screw) below it in the picture. I decided to leave it on and just move it to the side.

Victor Ng-Thow-Hing -

Passo 15

Usa uno spudger o un'unghia pulita per scollegare, sollevandolo verso l'alto, il connettore della batteria dalla scheda logica.

Passo 16

Spingi indietro il connettore della batteria per evitare il rischio di contatto e quindi di alimentare l'iPhone mentre ci lavori.

When putting the new battery in, make sure to line up the plug and not to the top of the battery… our battery was smaller so the plug would NOT have lined up if we used the top of the battery. ALSO, the plug was NOT 90 degrees so we had to finagle the plug. Also, make sure there is a clear CLICK when you plug in the connector or it may not work. Ours went in but guess didn’t go far enough so we had to take the screen off and push it harder until we heard the “click” then it worked fine.

Won Hong - 07/01/18

There was some black goop/glue around the battery connector, and when I lifted the old connector, some of that glue fell into the receptacle. It was easy to fish out (with magnifying glass and tweezers) but if you don't catch it, you may not get a good connection.

Steerpike -

Passo 17

Rimuovi le seguenti viti a croce Phillips:
Tre viti da 1,3 mm
Una vite da 1,6 mm
Una vite da 3,0 mm
In fase di rimontaggio, è fondamentale rimettere questa vite da 3,0 mm nell'angolo superiore destro della staffa. Scambiarla di posto con un'altra potrebbe danneggiare la scheda logica.

I really don't see value in removing screen use box and rubber band keep at 90 degrees.

John Parker - 16/03/17

I leave screen on as well for this. - Tho I prefer a 45 degree lean.

Thor - 22/07/17

I just changed my battery and also left the screen attached. I was lucky enough to get all 3 adhesive battery strips out clean so I didn’t have a struggle with the battery coming out. If I was going to need to get rough with it I was going to take the screen off at that point.

Michael Gross - 03/10/17

To keep track of screws, draw a quick outline of the display cable bracket/cover, with five dots where screws should be. Drop the screws on the corresponding dot. Helps if you use magnet pad.

Christa - 23/06/18

Better yet, print out the pictures from the iFixit website, and use clear tape (“Scotch tape”) to TAPE the screws onto the place in the picture where they belong.

Tom - 28/08/18

Which screwdriver from the kit do I use for which screw?

Shiva Sharma - 14/07/18

I made a mistake and unscrewed the screw just north north west of the one circled in yellow. Of course I lost the screw. Can anyone give me any guidance about this? what does the wire connected to it do? What is the size of the screw, in case I have to replace it?

P.S. This is another reason to consider the possibility of NOT removing the screen just to replace the battery: removing the screen presents a additional possible headache, especially for people like me with bad eyesight who probably shouldn’t be doing this in the first place.

Tom - 28/08/18

It is a 1.4 mm Phillips screw holding the NFC bracket in place.

Larry Lynch -

I didn’t think this was necessary, bit I see it relieves stress on the front-facing camera and sensor cable connector; I did not disconnect the display connector nor remove the display screen.

Lou Fazio - 30/12/19

I second this finding. I too did not remove the screws nor the bracket. The cables look a bit stretched, but certainly not strained.

-Gamma

Gamma Pailvan -

This step of separating the two parts of the phone deserves careful consideration. In my case, I had propped up the display assembly with a box and rubber bands. However, only 2 of the battery adhesive strips came off easily. The effort to remove the battery with the display assembly attached was not a good move on my part. I jarred the ear speaker cable and after reassembly I had no camera or working ear speaker. Taking off these 5 screws and removing the three cables is not difficult. My suggestion: is you have ANY trouble removing the 3 battery adhesive strips, STOP, separate the two components, and then continue with the battery removal. Don’t struggle removing the battery with the display assembly attached. (I replaced the ear speaker cable, and all is working now)

Richard Perl - 15/02/20

Thanks for this tip! I am having a really hard time removing this plate because one of the screw heads are stripped. So I’ll try removing the battery adhesive strips first to see if I can get the battery out without removing the screen.

nathanfunk - 27/06/20

Use dixie cups and label them for each part you take out. You can stack the dixie cups to keep them in order.

Bradley Nolen - 26/06/20

I skipped this for the battery removal, but when I went to replace the seal, I had to remove it anyway.

dgol69 -

I lost the bottom left screw of the five in this step - anyone know if it’sgoing to cause a problem? ‘m going to go ahead and put thephone back together anyway - wil report back withresult

CoffeeCup -

OMG…. SO excited! It works! Seems that missing screw wasn’t an issue. The reason I’m so excited is, I’m a senior and have bever attempted anything like this before and was worried I’d mess it up, or it just wouuldn’t work for whatever reason. I know I never would have tried if it weren’t for finding this site, the great service, parts to do it and the videos/guides. Thank you so much ifixit. :-)

CoffeeCup -

I changed the battery, without removing the screen, when I closed the phone the front camera and speaker no longer work.

Mr T -

Passo 18

Rimuovi la staffa del cavo del display.

Be careful on this step: with my iPhone, one of the connectors (the home button/fingerprint sensor) was stuck to the underside of the bracket and I almost strained its cable.

kevin - 15/02/21

Passo 19

Fai attenzione a far leva solo sul connettore e non sullo zoccolo sulla scheda logica.

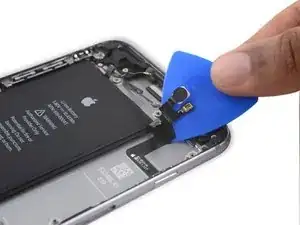

Usa uno strumento di apertura in plastica per staccare il connettore del cavo della fotocamera anteriore e del sensore.

FYI, in the video she uses the spudger for this but I think either one will work.

Julie Sanchez - 27/12/17

I found prying from the right to be better

Lou Fazio - 30/12/19

Is there any need for this step if only the Battery is replaced

mrrreid - 29/04/20

I don’t recommend using the spudger for this as you can do more damage that way. I scratched the black square thing underneath.

Laura Houghton - 05/08/20

I managed to remove the battery without disconnecting and removing the display first. This avoids possible difficulties in these steps (see below).

One has to be careful that, while fighting with the battery strips, the display remains in its 90º position

alfasw33 - 22/03/21

Passo 20

Usa uno strumento di apertura in plastica per disconnettere il cavo del digitizer facendo leva verso l'alto dal suo zoccolo sulla scheda logica.
Quando devi riattaccare il cavo del digitizer, non premere nel centro del connettore. Premi da un lato e poi dall'altro. Premendo nel centro del connettore, si può inavvertitamente piegare questo elemento e causare danni al digitizer.

Thanks you i fix it

God Hand - 28/10/17

“When reconnecting the digitizer cable, do not press the center of the connector. Press one end of the connector, then press the opposite end. Pressing in the center of the connector can bend the component and cause digitizer damage. “

The following note above was so helpful. I was speeding through the process of getting things back together, since it seemed easy to connect the digitizer cable, but I kept pushing it in the middle and I wouldn’t connect. Until I read through this step and realized it was easier if I would’ve connected one side and then the opposite side right after.

Jeffrey Robinos - 28/09/18

Don’t be too shy when pushing the ends of the digitizer connector back to place. If it does not connect properly, you might face the “half backlight” problem, even if you did not kill any LCD filter. Also check carefully, that you don’t clamp parts of the sticky sealing material placed around the connector inside the connection area.

Norbert Andreas Richartz - 16/11/18

This part was a very frustrating experience for me. I thought that my replacement screen was just poor quality, as it worked when it wanted to work. Pressing home/power repeatedly sometimes brought it back, charging to 100% also brought it back. The actual problem was that it is very easy to get some of the gasket material caught in the connector, which I couldn’t see until I used my jeweler's loupe. I used 91% alcohol to carefully clean all of this off until all pins were shiny, and it took about 6 tries to get it right. However, the screen’s been running well for 2 days now. I already bought another screen replacement which I have for a spare as it was 100% not the problem.

chumblyf - 06/05/20

I followed all the steps, so the sound is missed. What could be happened? thanks a lot. Fabio Balbino

Fabio Balbino - 17/06/20

Passo 21

Accertati che la batteria sia scollegata prima di disconnettere o riconnettere il cavo nel corso di questo passo.
Scollega il cavo del tasto home/sensore delle impronte facendo leva verso l'alto dal suo zoccolo sulla scheda logica.

How much is this to replace?

Alistair knight - 18/02/17

And where could I buy from?

Alistair knight - 18/02/17

You can buy these at iFixit: iPhone 6s LCD and Digitizer - Original LCD

drgon - 23/02/17

After finishing the assembly I got the message “Touch ID cannot be enabled on this phone”. I found this connector was loose. Plugged it back in and that fixed it.

Bryan Province - 05/10/17

Thanks for the tip. Same thing happened to me, some leftover adhesive was in the way!

Sean - Lua Tech -

Always make sure to disconnect the battery before you do any work on the phone replacing any parts the digitizer or anything. And before you start make sure the phone is turned off you don’t want any power surges. If you also have a static electricity bracelet that also is a plus to use but isn’t a necessity just a nice piece of mind. Some cases you do need to use one so you don’t discharge static electricity to an electrical component and mess it up.

Brent - 14/03/18

Be very careful in this step. I noticed it’s very easy to tear the flex when trying to lift it out of its socket from the right side.

shoeib - 18/03/18

What is the cable and how is it connected/fixed to the motherboard between the bottom socket and the screw hole.

Mine came loose somehow?

Jason Engelsman - 16/07/18

I figured out my own question its the Wi-Fi diversity antenna cable. But how is it connected/secured to the motherboard?

Jason Engelsman - 16/07/18

i pressed on the center of the digitizer connection. and the bottom half of my screen didnt work. i then took that same front panel assembly and tried to install it on another old iphone 6s+ and i had the same issue.

can i still fix it?

what exactly is broken now?

alejandro rueda - 28/01/19

@mynameisoli Honestly this just sounds like a defective screen to me, but it’s hard to say for sure. Look closely at the connector at the end of the ribbon cable and check it for damage. If it’s slightly bent/curved, all the pins won’t make good contact in the socket. You can try bending it back so it lays flat, but you have to be very careful not to damage the connector or contaminate the pins with skin oils, so it’s tricky—and it may be harder to return as “defective” if you mess up the connector. So try this at your own risk. Apart from that, I would just return it and try a different display. Good luck!

Jeff Suovanen - 29/01/19

The 6s plus screen repair kit i bought has the wrong size cable here on the replacement part. SOL.

Alex Richardson - 07/03/20

Once I accidentally disconnected the display assembly cables before disconnecting the battery. Now the home button and fingerprint sensor doesn’t work. Any solution to this?? I have tried a different home button, even that doesn’t work.

a3roar - 06/06/20

I changed the battery on my iPhone and put all together again and charged it. When I pressed the home button the lock screen with my picture appeared and when I pressed it again the screen with the digits from 0 to 9 appeared. I was asked to enter my passcode, but when I did that nothing happened, the phone did not open.

What could be wrong? Is the home screen cable not fully connected or what could be the reason for this?

THORDUR JOHANNESSON -

Passo 22

Rimuovi il gruppo display.
In fase di rimontaggio, fermati qui se vuoi sostituire l'adesivo attorno ai bordi del display.

For instructions on home button swap out to the new screen you just installed, go here

Sostituzione gruppo pulsante home dell'iPhone 6s Plus

Superior Office Systems - 05/12/17

Do you know whether the adhesive contributes to waterproofing, or just for stability/adhesion?

Christa - 29/01/18

@kitabel The iPhone 6s case isn’t waterproof, so I don’t think adhesive around the display is contributing anything other than stability. The 6s series does have some water resistance, but it’s mostly internal and not something Apple advertises.

Jeff Suovanen - 30/01/18

If you have a replacement adhesive for the display, you may need to install it before reconnecting cables to the components. If the adhesive wraps all the way around the display, it will be impossible to install it once the display is reconnected.

Matthew Olwell - 16/04/19

These instructions worked great for me. Thank you!

Chris Enloe - 21/05/19

Passo 23

Stacca tutti i pezzi di nastro adesivo che coprono le viti della staffa della fotocamera iSight.

If like me you are only wanting to clean out the speaker, you do not need to do this step. You can skip to step 50

Brad “Bradster48” Mason - 20/12/17

Mine had no tape there

Gustavo Delfino -

Passo 24

Rimuovi le seguenti viti a croce Phillips dalla staffa della fotocamera:
Una vite da 1,9 mm
Una viti da 2,4 mm

Passo 25

Rimuovi la staffa della fotocamera iSight.

When replacing the bracket be sure to get the other end of the NFC bracket included with the right hand screw.

Thomas Hayes -

Passo 26

Scollega il connettore della fotocamera iSight dal suo zoccolo sulla scheda logica.
Accertati di far leva solo sul connettore e non sul suo zoccolo sulla scheda logica.

If necessary, the sticky patch on top f the connector should be removed. Helped my case a lot :)

Alexander Leuschner - 08/08/18

Passo 27

Inserisci l'estremità piatta di uno spudger tra la fotocamera iSight e il case posteriore.
Stacca con cautela la fotocamera dal suo alloggiamento.

Passo 28

Rimuovi la fotocamera iSight.

Hi ,

Thanks a lot for your tutorial !

Can you explain how can we change the lens of the camera ?

Thanks ;)

rocofolie - 18/05/16

Passo 29

Inserisci uno strumento di estrazione SIM nel foro nel vassoio della scheda SIM.
Premi per espellere la SIM.

Passo 30

Rimuovi il vassoio della scheda SIM.
Quando reinserisci la scheda SIM, accertati che sia orientata in modo che il foro di espulsione della SIM si trovi in basso.

Passo 31

Rimuovi la singola vite a croce Phillips da 1,4 mm che fissa la staffa di supporto dell'NFC.

The silver end of the NFC bracket goes here. The gold floppy end goes under the camera bracket.

Thomas Hayes -

Passo 32

Rimuovi la staffa NFC.

Passo 33

Rimuovi le due viti Phillips da 2,7 mm che fissano la staffa del cavo del controllo audio alla scheda logica.

Passo 34

Rimuovi la staffa del cavo del controllo audio.

Wo kommt den der “6 s Plus Bluetooth Flex” überhaubthin bitte ?

Also "das = https://www.ebay.de/itm/123934065844

Mystery Shopper - 04/05/20

Passo 35

Disconnetti il cavo del controllo audio staccando il suo connettore sollevandolo dalla sua sede sulla scheda logica.

Passo 36

Disconnetti il cavo dell'antenna cellulare staccando il suo connettore sollevandolo dal proprio zoccolo sulla scheda logica.

how do you plug this cable back in? any tips for lining up with the socket? i can't get it to stay :(

kapluni - 05/09/17

Hold the cable with your tweezers and line the connector up over the socket as perfectly as you can, and then press straight down on it with the flat end of your spudger. Should snap into place with a bit of force.

Jeff Suovanen - 25/01/18

My problem when I pull the cable in the socket i shocked bot of them pull togeher the cable and the socket in the logic board the small circle i cry how to fix pleasss help mee

Darrel Alan - 26/04/20

The cable broke instead of coming out of the socket. Oh well. GG

hiddenanddangerous2009 - 08/08/20

My phone doesn't have a cable running here

TJ Anderson - 31/01/21

Passo 37

Disconnetti il cavo dell'antenna Wi-Fi diversity sollevando il suo connettore dalla propria sede sulla scheda logica.

Passo 38

Disconnetti il cavo flessibile del pulsante di accensione dal suo zoccolo sulla scheda logica.

Don’t forget this guy when you’re putting it back in! you’ll have to undo a bunch of screws

Cassandra Vil - 28/06/18

Passo 39

Scollega il cavo di interconnessione dell'antenna con il connettore Lightning sollevandolo dalla scheda logica.

This is not a Lightning connector - its a radio connector.

NorthernBigDummy - 06/02/18

Passo 40

Usa l'estremità piatta di uno spudger per scollegare il cavo flessibile del connettore Lightning dalla scheda logica.

From here you can skip ahead to step 50.

Mark Cousins - 10/12/16

Passo 41

Sfila il cavo di antenna dalle due clip sul bordo destro della scheda logica.

This is super vague. Doesn’t explain exactly HOW to remove the cable from the clips, like it does in step 44. Slightly damaged my cable because I didn’t know how to remove it or the nature of the clip.

Mason Rogers - 11/04/18

Passo 42

Rimuovi le seguenti viti:
Una vite a croce Phillips da 1,3 mm
Una vite a croce Phillips da 2,6 mm
Un distanziale a vite da 2,2 mm
Per rimuovere distanziali a vite l'ideale è usare un cacciavite o una punta per distanziali.
In caso di emergenza, può bastare un piccolo cacciavite a taglio, ma è necessaria un'estrema cautela per evitare che scivolando possa danneggiare i componenti circostanti.

Use can use a spudger in a pinch to dislodge the 2.2mm standoff screw. This was the most difficult screw in the phone. A Phillips bit will not work.

mechamster - 11/11/17

What do we call / name this bracket?

B. Jansen - 01/01/19

Passo 43

Rimuovi la staffa.

Passo 44

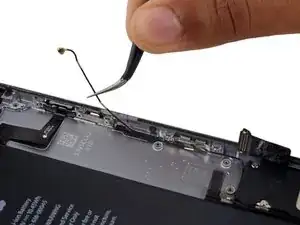

Sfila il cavo dell'antenna cellulare superiore sinistra dalla prima clip della scheda logica facendolo scorrere fuori da sotto la clip, verso la batteria.

Passo 45

Continua sfilando il cavo dell'antenna cellulare liberandolo dalla seconda e terza clip della scheda logica.
Usa l'estremità appuntita di uno spudger per staccare con delicatezza il cavo dell'antenna cellulare dalla clip centrale sulla scheda logica.
Non cercare di rimuovere il cavo tirandolo, perché si rompe facilmente.
Per consentire al cavo di raggiungere il suo zoccolo sulla scheda logica, devi farlo passare sopra la scheda logica e sotto il cavo flessibile del controllo audio, come illustrato nella prima foto.

My clip in the middle is not removing no matter how hard i pry or what i do, any help??

David Gray - 12/06/20

Passo 46

Rimuovi l'ultima vite Phillips da 2,0 mm disposta direttamente sotto il lettore della scheda SIM.

Passo 47

Solleva con cautela, ma non rimuovere, la scheda logica, sollevandola dal bordo inferiore nel punto più vicino al connettore Lightning.

Passo 48

Inclina la scheda logica fino alla posizione verticale per accedere al singolo connettore di antenna sottostante, vicino al bordo superiore della scheda.
Non cercare ancora di rimuovere completamente la scheda logica, perché l'antenna Wi-Fi/Bluetooth è ancora connessa alla parte inferiore della scheda stessa.

Passo 49

Posa delicatamente la scheda logica in posizione capovolta, con la sua parte superiore che rimane ancorata al case posteriore dell'iPhone.
Usa l'estremità piatta di uno spudger per disconnettere il cavo di antenna Wi-Fi/Bluetooth dal suo zoccolo sul retro della scheda logica.

Ugh, the socket connector separated from the back of the rigid cable. Two wires are still attached to the socket connector, but I’m guessing I’ll need to purchase a replacement WiFi/Bluetooth antenna cable at some point. I hope you sell these too?

NorthernBigDummy - 06/02/18

**Update** I used the tiniest drop of super glue with activator on both the connector and cable. It seems to be holding! Will reassemble and see if it works. Lucky for me, you sell the replacement cable for $14.99 if my cheap bastard fix fails :)

NorthernBigDummy - 06/02/18

**Update #2** Using super glue on the upper left wi-fi connector seems to have worked, both my bluetooth and wi-fi are working well post-repair.

NorthernBigDummy - 06/02/18

Passo 50

Rimuovi la scheda logica.

Passo 51

Usa l'estremità piatta di uno spudger per staccare dall'altoparlante il cavo flessibile del connettore Lightning.

Passo 52

Rimuovi le seguenti tre viti a croce Phillips dalla staffa del caso del Taptic Engine:
Due viti da 3,5 mm
Una vite da 2,7 mm
Rimuovi la staffa.

Passo 53

Rimuovi le cinque viti Phillips che fissano l'altoparlante al case posteriore:
Due viti da 2,7 mm
Una vite da 2,5 mm
Una vite da 1,5 mm
Una vite da 1,7 mm

Passo 54

Sfila il cavo dell'antenna Wi-Fi diversity dal suo astuccio di gomma.
Se lo sticker che indica i danni da infiltrazione d'acqua rende difficile sfilare il cavo di antenna, tira delicatamente indietro lo sticker per favorire l'accesso.

This step isn't necessary. You can leave this cable in place.

Mark Cousins - 10/12/16

yes totally unnecessary to remove this or the board at all.

Smartfone NI - 02/08/17

Dégagez le câble d'antenne Wi-Fi diversity du clip du connecteur de mise à la terre (italique = description à vérifier !)

Apy Ben - 20/02/19

Passo 55

Usa delle pinzette per scollegare il cavo dell'antenna Wi-Fi diversity dal cavo flessibile del connettore Lightning.

Passo 56

Rimuovi l'ultima vite a croce Phillips da 2,6 mm che fissa l'altoparlante al case posteriore.

Bei mir war da nur eine Schraube !

Boris Alt - 07/05/19

Beim mir ist da nur eine, Schraube. Auf dem Bild auch.

Matze Diamond - 28/01/20

Passo 57

Usa l'estremità piatta di uno spudger per sollevare il gruppo altoparlante dal suo alloggiamento.
Rimuovi il gruppo altoparlante.

If you’re following the quickest past, don’t pull it off, cable of Wi-fi Anten is still attached

Martin - 02/09/20

Passo 58

Usa la punta di uno spudger per scollegare il cavo flessibile del Taptic Engine dal cavo flessibile inferiore.

Maybe it would be best to have people remove the screws first? Otherwise prying the flex cable (which is very thin and not super flexible) may result in it breaking from the Taptic Engine. Just a thought.

Kayne Caplinger - 21/08/19

The cable is plenty flexible, hence the name. ;) Remove the screws first if you like, but there’s no harm in doing it this way.

Jeff Suovanen - 26/08/19

can i remove the lighting connector without steps 27 to 35?

Kweku Opong-Peprah -

Passo 59

Rimuovi le due viti a croce Phillips che fissano il Taptic Engine alla copertura posteriore:
Una vite da 3,1 mm
Una vite da 2,1 mm
Rimuovi il Taptic Engine.

Passo 60

Stacca il nastro adesivo disposto sopra la vite che fissa il cavo flessibile del connettore Lightning al bordo del telefono.

Passo 61

Svita le seguenti cinque viti a croce:
Una vite da 2,9 mm
Una vite da 1,9 mm
Una vite da 1,5 mm
Una vite da 1,6 mm
Una vite da 1,3 mm posizionata nel bordo inferiore della copertura posteriore.

Passo 62

Prepara un iOpener e disponilo sulla parte inferiore del telefono per ammorbidire l'adesivo che tiene in posizione il cavo flessibile del connettore Lightning.
Lascia ammorbidire l'adesivo per circa un minuto prima di rimuovere l'iOpener e continuare la procedura.

Passo 63

Infila un plettro sotto il cavo a nastro flessibile del connettore Lightning e fallo scorrere lentamente per tagliare l'adesivo che fissa il cavo alla copertura posteriore.

Passo 64

Continua a far scorrere il plettro di apertura sotto il cavo flessibile.

Passo 65

Usa un plettro di apertura per staccare il microfono di sinistra dal bordo del case posteriore.

make sure you don’t remove the little black plastic part that goes between the microphone & case, it was firmly attached to the left microphone.

Rhonda Tregay - 20/01/18

The instructions don't mention it, but the photo shows the microphone by the headphone jack also being eased back, which we did have to do; agree with Rhonda's comment, and separating those parts took persistence.

Matthew Dearden - 07/05/22

Passo 66

Infila la punta di uno spudger nella presa jack e muovilo leggermente per liberare la presa dal bordo inferiore della copertura.

The Spudger really works well to align the new headphone jack up when reinstalling the new lightning connector assembly

Andrew Baird -

Passo 67

Rimuovi il gruppo della presa Lightning.
Se la tua componente di ricambio non include la guarnizione della presa jack, usa le pinzette per rimuovere la guarnizione dalla parte originale e per trasferirla su quella nuova.
Prima del rimontaggio, usa uno spudger per rimuovere tutto l'adesivo rimasto sulla copertura posteriore. Puoi usare dell'alcool isopropilico ad alta concentrazione per aiutarti nella pulizia.

Save the sealant rubber from the jack and the lighting connector if the new one does not have it.

István Borsányi - 16/05/20

Passo 68

Rimuovi le seguenti quattro viti Phillips:
Tre viti da 2,0 mm che tengono in posizione la staffa del pulsante di accensione
Una vite da 1,3 mm al di sopra della staffa del flash e del microfono

Flash/microphone bracket on the second (and first too) picture needs to go in the socket located on the frame’s top (therefore the top side of the bracket is not visible like in steps 23-27), not lay on top of the socket. I had to come back to this later during my reassembly.

domin8 - 19/12/17

Passo 69

Rimuovi la staffa del flash e del microfono.

Passo 70

Usa l'estremità a punta di uno spudger per far uscire il flash dal suo alloggiamento nel case posteriore.

Passo 71

Usa l'estremità piatta di uno spudger per staccare dal case posteriore il cavo flessibile del pulsante di accensione.

Passo 72

Inserisci la punta di uno spudger sotto la parte relativa al microfono del cavo flessibile e alza con delicatezza il cavo dal case posteriore.

Passo 73

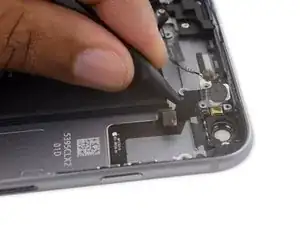

Fai scorrere un plettro di apertura sotto il cavo flessibile del pulsante di accensione per staccare il cavo stesso dal case posteriore.

Passo 74

Rimuovi il cavo flessibile del pulsante di accensione.

Passo 75

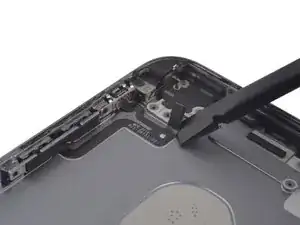

Spingi delicatamente fuori dal suo alloggiamento nel case posteriore la cover del pulsante di accensione.

Passo 76

Rimuovi la cover del tasto.

Passo 77

Rimuovi le seguenti viti a croce Phillips che tengono in posizione l'antenna cellulare:
Una vite da 2,7 mm
Una vite da 1,7 mm
Una vite da 1,3 mm

You need to remove a black sticker to reveal the 1.7 mm Philips screw (Orange circle on the picture).

jimmy_desertwolf - 16/02/20

Passo 78

Rimuovi l'antenna cellulare.

Passo 79

Rimuovi la singola vite Phillips da 1,3 mm che fissa l'antenna Wi-Fi/Bluetooth al case posteriore.

Passo 80

Rimuovi l'antenna Wi-Fi/Bluetooth.

Passo 81

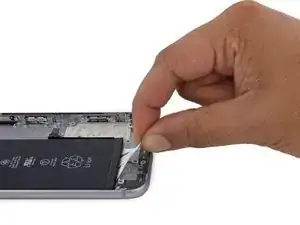

Usa delle pinzette per tirare fuori le estremità delle tre strisce di adesivo della batteria lungo il bordo inferiore della cella.

Passo 82

Raccogli insieme, in una sola mano, le tre estremità delle strisce adesive della batteria.
Fai attenzione a non arricciare le strisce nel corso di questa procedura, altrimenti diventa molto difficile maneggiarle e e non si riuscirà a renderle di nuovo piane.

Passo 83

Tira le strisce adesive, mantenendole piatte e aperte finché non saranno rimosse completamente. Per risultati ottimali, tira le strisce a un angolo inferiore a 60°.
Le strisce si allungheranno di diverse volte rispetto alla lunghezza originale. Continua a tirare fino a rimuovere completamente tutte e tre le strisce.
Tieni ferma la batteria con una mano mentre tiri, altrimenti le strisce elastiche faranno saltar fuori la batteria una volta che si saranno staccate dal case posteriore.

Passo 84

Se hai rimosso con successo tutte e tre le strisce adesive, vai direttamente al passo successivo. Altrimenti devi staccare la batteria dal case posteriore.
Prepara un iOpener e applicalo sul retro del case posteriore, direttamente sopra la batteria. In alternativa puoi applicare calore usando una pistola termica o un asciugacapelli.
Dopo circa un minuto, gira il telefono e usa una scheda di plastica per rompere e raschiare l'adesivo rimasto.

Passo 85

Rimuovi la batteria.

Passo 86

Svita le tre viti a croce Phillips da 2,4 mm disposte sopra la staffa del cavo del controllo audio.

Passo 87

Usa l'estremità piatta di uno spudger per staccare il cavo flessibile del controllo volume.

Passo 88

Rimuovi il cavo flessibile del controllo volume.
In fase di rimontaggio, per prima cosa rimetti al suo posto l'interruttore del controllo volume, poi riposiziona l'interruttore mute.

Passo 89

Usa l'estremità a punta di uno spudger per spingere le cover del controllo volume fuori dai loro alloggiamenti nel case posteriore.

Passo 90

Rimuovi le cover dei pulsanti di controllo del volume.

Passo 91

Rimane il solo case posteriore.

At this point please check your replacement case and the left over case. Check if the brackets/clips on the sides are present on the replacement case. If not, remove from the left over case and transfer them to the replacement case. You will need these brackets/clips in order for the screen to sit tight on the phone.

Jammy Lee - 18/06/18

Does the plate for the apple logo need to be removed from the old housing and placed new housing? Not sure if the non OEM plate that comes with my new housing will interfere with anything like Apple Pay

wallace -

Sostituzione case posteriore iPhone 6s Plus

Introduzione

Strumenti

Ricambi

6 commenti
