Introduzione
Utilizzare questa guida per sostituire completamente il disco rigido del Mac mini.
Strumenti
Ricambi
-
-

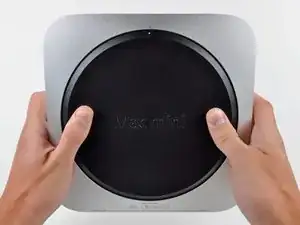

Posizionare i pollici negli incavi nel coperchio inferiore.
-

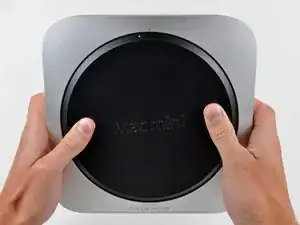

Ruotare il coperchio inferiore in senso antiorario finché il puntino bianco dipinto su di esso non è allineato con il cerchio in rilievo sul case esterno.
-
-
-

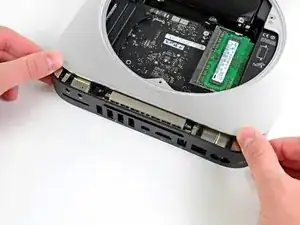

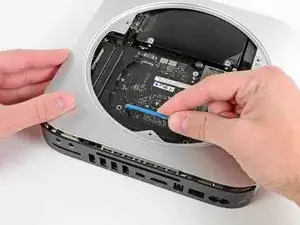

Inclinare il Mac mini abbastanza da sganciare il coperchio inferiore dal case esterno.
-

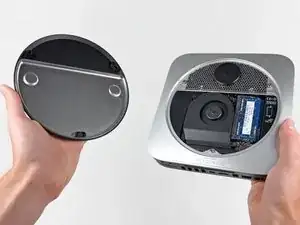

Rimuovere il coperchio inferiore e conservarlo altrove.
-
-
-

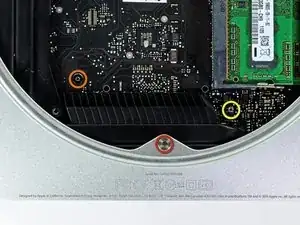

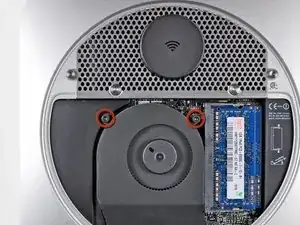

Rimuovere le due viti Torx T6 da 11,3 mm che fissano la ventola alla scheda logica, in prossimità della piastra dell'antenna.
-
-
-
Sollevare la linguetta della ventola più vicina alla memoria RAM più vicina al distanziatore fissato al case esterno.
-
-
-

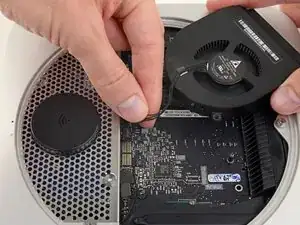

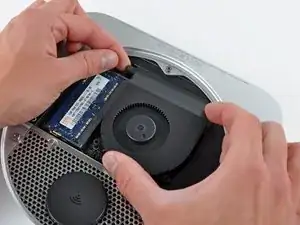

Sollevare la ventola dal Mac mini affinché sia possibile accedere al connettore.
-

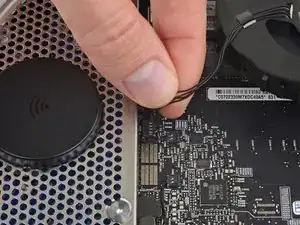

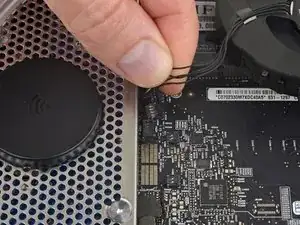

Prendere insieme tutti i cavi e tirali delicatamente verso l'alto per scollegare la ventola dalla scheda madre.
-
Rimuovere la ventola.
-
-
-

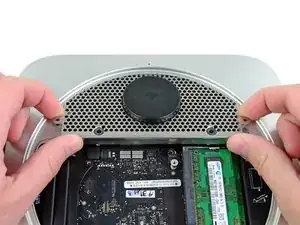

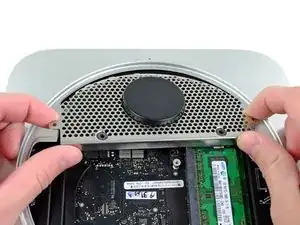

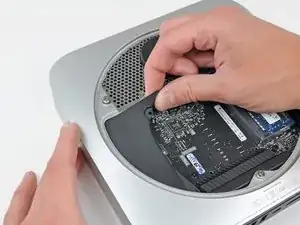

Sollevare la mascherina dall'estremità più vicina alla piastra dell'antenna.
-
Ruotare la mascherina fuori dal case esterno e rimuoverla dal Mac mini.
-
-
-

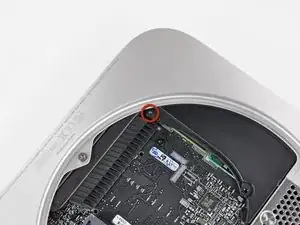

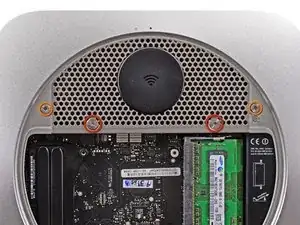

Rimuovere le viti seguenti, che fissano la piastra dell'antenna al Mac mini:
-
Due viti Torx T8 da 6,6 mm
-
Due viti Torx T8 da 5 mm o viti esagonali da 2 mm (vanno bene entrambi i cacciaviti)
-
in fase di montaggio:
-
-
-

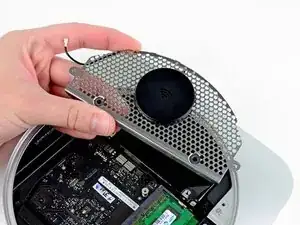

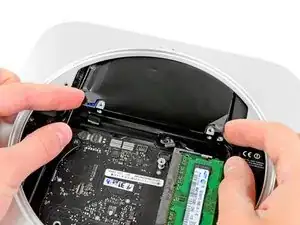

Sollevare delicatamente la piastra dell'antenna dall'estremità più vicina alla memoria RAM.
-
Estrarre con attenzione la piastra dell'antenna dalla montatura rotonda nel case esterno.
-
-
-

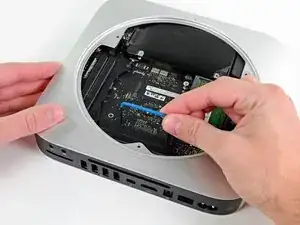

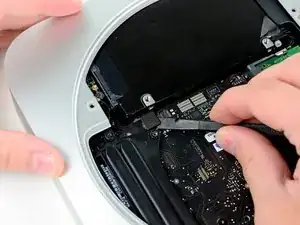

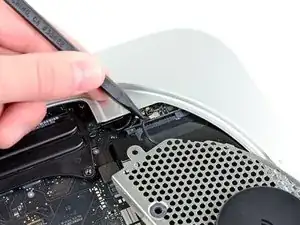

Mediante la punta di uno spudger, scollegare con attenzione il connettore dell'antenna dal rispettivo connettore femmina sulla scheda AirPort/Bluetooth.
-
-
-

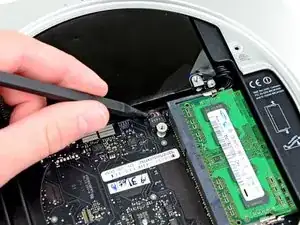

Utilizzare l'estremità piatta di un inseritore per scollegare il connettore del disco rigido dal connettore femmina sulla scheda logica.
-
-
-
Mediante la punta di un inseritore, scollegare il connettore del cavo del sensore infrarossi dal connettore femmina sulla scheda logica tirandolo verso l'alto.
-
-
-
Rimuovere le tre viti seguenti:
-
Una vite Torx T8 da 5 mm o vite esagonale da 2 mm (vanno bene entrambi i cacciaviti)
-
Una vite Torx T6 da 16,2 mm
-
Un distanziatore Torx T6 da 26 mm
-
-
-

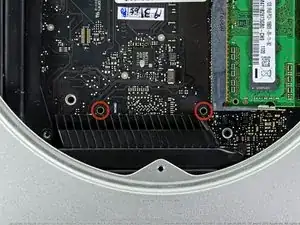

Utilizzare i due fori evidenziati in rosso. Verificare che avvenga il contatto con il lato superiore del case esterno sotto la scheda logica prima di procedere con l'operazione.
-
Tirare con attenzione l'attrezzo verso la scheda I/O. La scheda logica e il gruppo della scheda I/O dovrebbero scorrere leggermente fuori dal case esterno.
-
Rimuovere l'attrezzo per la rimozione della scheda logica per Mac mini.
-
-
-
Premere contemporaneamente le due levette di plastica nei lati all'estrema sinistra e destra della scheda I/O verso la parte centrale di quest'ultima, rimuovendola dal case esterno.
-
Estrarre il gruppo della scheda logica dal case esterno solo finché il bordo della scheda I/O non si trova a circa 1,27 cm dal bordo del case esterno in alluminio.
-
-
-
Rimuovere la striscia di nastro che fissa il cavo del disco rigido a quest'ultimo.
-

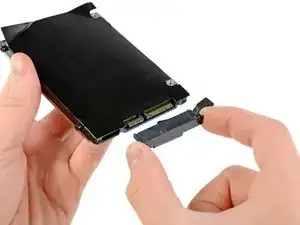

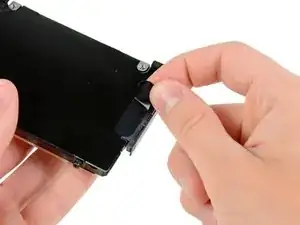

Scollegare il cavo del disco rigido estraendolo direttamente dall'unità stessa.
-
-
-
Rimuovi il cavo dell'hard drive.
-

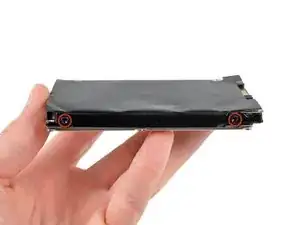

Rimuovi le due viti Torx T8 da 6,2 mm dall'altro lato dell'unità.
-
-
-

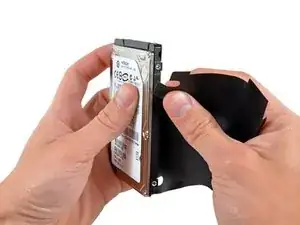

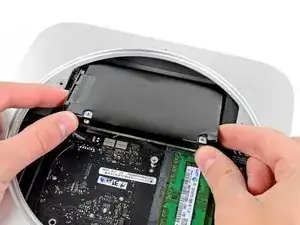

Rimuovere con attenzione la copertura del disco rigido.
-
Resta il solo disco rigido.
-
Se stai installando un nuovo disco fisso, abbiamo una guida di installazione OS X per aiutarti a tornare rapidamente al lavoro.
-
Per riassemblare il dispositivo, seguire queste istruzioni in ordine inverso.
