Sostituzione lettore CD ottico PlayStation 4 Slim

Scritto Da: Hernan Rodriguez
  • Commenti: 77
Sostituzione lettore CD ottico PlayStation 4 Slim

Difficoltà

Moderato

Passi

15

Tempo Necessario

10 - 15 minuti

Introduzione

Usa questa guida per rimuovere e sostituire il lettore CD della tua PlayStation 4 Slim.

Nota: Se il tuo lettore CD di ricambio non includeva i cavi a nastro, dovrai trasferirli dal disco originale.

  1. HVTGYelJeUQRNBTL
    HVTGYelJeUQRNBTL
    6Z3td3NoCXXHhZQI
    4ybs2g5RHLPUHZ6a

    • Trova l'adesivo di garanzia in plastica vicino alle tre porte sul lato della console.

    • Rimuovi l'adesivo di garanzia semplicemente staccandolo con qualsiasi tipo di spudger.

    • La rimozione dell'adesivo di garanzia NON invaliderà la garanzia.

    Remove the screw directly to the left of that one in the picture as well. Should be silver.

    Elizabeth Johnson -

    ihr seid so ein scheiß haufen das stimmt über haubt nix

    Toaster 95 -

    einfach alles stimmt nicht

    Toaster 95 -

  2. iuwUc5FNjBXlxWDZ
    iuwUc5FNjBXlxWDZ
    NddVVDLyNaEUIPME

    • Svita e rimuovi la vite da 5.0 mm che è dietro l'adesivo usando un cacciavite di sicurezza T8 Torx con un movimento antiorario.

    Are you SURE that it’s counter-clockwise?

    The Stuff -

    Try T9. Fits better.

    Otter -

    T8 fits like a glove for me

    Daniel Henderson -

    Is there anything else you can use

    randomweeb -

    A small flathead screwdriver will work

    shawng6363 -

    There is a small metal rod in the middle of the screw that isn’t allowing my t8 inside. Any insight on this?

    gavinstoutconner@icloud.com -

    Some T8 bits have a hole in the middle that will allow that rod to go through; some do not. If you have a set of multiple bits, check if there are any others labeled T8 or TR8 with that hole in the middle.

    Nicholas -

    There is a metal thing inside of the screw slot any insite on this?

    Tristan York -

  3. SlFEBbB2b3bIl6BX
    SlFEBbB2b3bIl6BX
    oRDOW1Bq6YK4gBJW
    Qs6ybIWcbq4tnNZZ

    • Gira la PlayStation 4 Slim sottosopra con il lato della vite rivolto verso di te.

    • Fai leva con le dita sui due angoli che sono rivolti verso di te.

    • Questo passaggio potrebbe richiedere un po' di forza per essere aperta e sentirai un click molto forte quando si staccherà.

    • Rimuovi la copertura inferiore facendola scorrere lontano da te e alzandola.

    It says to place it upside down, but didn't you do so in the previous step? I've been trying to unscrew the screw with my screwdriver that I got from here and if I had to had the system right side up, I'm afraid I might've stripped the screw from all the force I tried to use to get the screw out that will NOT budge. It didn't even move the slightest after removing the warranty sticker.

    Vidal Santos -

    There is a single clip on the left side about 5cms in, and another clip on the right side equidistant to the one on the other side. Jamming a spudger in there first, and lifting those clips helped, and then I had to slide down to lift a total of 4 clips on each side (each about 4cms apart). Then push the cover away from you, if that makes more sense than “sliding it towards the back corners”, since the back corners are technically facing you.

    Emil Fisk -

    It would be easier if you just lifted the top cover of the PS4.

    Poobler -

    The earlier comment by Emil Fisk is spot-on. I found it impossible to remove the cover without first using a spudger to release the four clips on each side.

    midahed -

    I saw many video and tried it my self, you have to remove the hard disc before removing any cover.

    Bahaa CHEBLI -

  4. eG12cRbDuv1GVtZd
    eG12cRbDuv1GVtZd
    IZBxPl2oH5CkN4DP
    2SpqZiosbjQ2HxGj

    • Appoggia la PlayStation 4 Slim a faccia un su, con il logo PS superiore e la scritta "SONY" rivolti verso di te.

    • Fai leva con le dita sui due angoli più vicini a te.

    • Questo può richiedere un po' di forza e sentirai un forte suono quando la scocca superiore si sgancerà.

    • Rimuovi la scocca superiore facendola scorrere verso il retro della console e sollevandola.

    Undo 4 clips on each side by using a spudger. And then lift the front corners up and pull towards you to undo them.

    Emil Fisk -

  5. 3AeQgjbtK1pLrGkY
    3AeQgjbtK1pLrGkY
    iSoWBxqGEIukqO2C
    4Vw4unbMo24VFLiR

    • Svita e rimuovi le due viti (la sinistra da 31,0 mm e la destra da 24,0 mm) Con un cacciavite Torx T8.

    • Svita e rimuovi la vite da 3,0 mm con un cacciavite Philips #1.

    UK model seems to be different here. There's no Philips screw where there is on your image.

    MaFt Morley -

    This regards EU models in general, i think. My danish version is the same.

    William Villadsen -

    The screw on the left was 31mm, and the one on my right side was only 19mm.

    Emil Fisk -

  6. HrP1ICwvSbBshwxh

    • Svita le quattro viti Philips da 16 mm che tengono fermo l'alimentatore.

    Es gibt diese Schrauben bei meiner Ps4 Cuh 2116A nicht und ich bekomme das Teil so nicht raus. Kann mir jmd helfen?

    Julian S. -

    Only 2 Phillips actress here on my UK

    MaFt Morley -

    Only 2 phillips screws on the US one as well.

    Sean Douglas -

    I also only have two screws here in the US.

    Rachel Kelley -

  7. IELoveMUpqIKoH5N
    IELoveMUpqIKoH5N
    JfyvhNxHrQeavq3f

    • Rimuovi il foglio in metallo sopra l'alimentatore sollevandolo.

    Is this metal sheet required for the unit to power on?

    AlexT -

    I think the metal sheet protects the rest of the console or something from heating too much.

    BloodSpark22 -

    Kann man diesen Metallblech einzeln kaufen? Finde im Internet nichts

    SoN GoKu -

    A quoi sert la tôle métallique qui recouvre le ventilateur et l’alimentation svp

    Ittady92 -

    Que puedo hacer si uno de los tornillos que sujetan esa lamina está barrido y no los puedo quitar?

    Maalem -

  8. PNA4otMPJIQOHWDT
    PNA4otMPJIQOHWDT
    gTmbqA3sa4ExOM6K

    • Rimuovi l'antenna da sopra l'alimentatore guidando il cavo nelle scanalature sotto il pannello in metallo.

    What does this mean for part do? This part is not present in my console nor is the space where it's supposed to reside as shown in the picture above.

    The Hondo -

    Me neither, guess they are different models.

    Daniel Henderson -

    There was a longer clip 8mm long on the left side which had to be pulled straight out. However, be careful when pulling out the antenna. My cable was soldered to the metal plate.

    Emil Fisk -

    It is easier to wiggle the cable out from the plastic power supply housing in step 10.

    Emil Fisk -

  9. xoXm3taPYINyFEjd
    xoXm3taPYINyFEjd
    IvVUKwfba1q3oWup

    • Gira la PlayStation 4 Slim a tasta in giù.

    • Svita e rimuovi la vite da 4,0 mm con un cacciavite Philips #1.

    Forgot to mention to remove the hard drive.

    The Stuff -

    How do you get it when the screw is stripped

    Lucas Holland -

  10. whHYWRP6SIDDsmug
    whHYWRP6SIDDsmug
    qUvGBKWo2LhFsk3m
    4WCDCpkIr6P2lECc

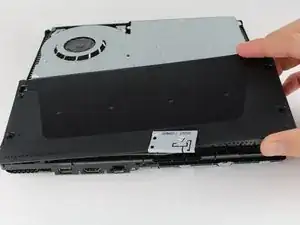

    • Usa uno strumento di apertura in plastica per creare dello spazio tra l'alimentatore e la console infilandolo tra i due e facendolo ondeggiare.

    • Solleva l'alimentatore e giralo appoggiandolo sul suo supporto in metallo.

  11. TNOBblu5PIbOJR4B
    TNOBblu5PIbOJR4B
    GLVgk3vwjAfTVyGM
    PAndD6pDYuGxIrrA

    • Scollega il cavo dall'alimentatore prendendolo saldamente con le dita o un paio di pinzette e tirandolo.

    • Solleva l'alimentatore per rimuoverlo dalla console.

    Your guide is good but detail. Could be alot better for a start you forgot to mention the screw on the other side that must also be removed to let the power supply out of ps4 slim

    Chicky Boy3 -

    Could you replace a ps4 slim model CUH-211B with a N16-160P1A power supply

    Aiden Thrash -

    Just because I feel like this needs to be stated clearly, “Do no attempt to pull the plug out by the wires!”

    Pull from the plastic, male end of the plug or you’re going to end up have a very bad day.

    Matthew D. H. -

    Literally no way I can do it by the plastic, the only way is wires. Gotta risk it I guess

    Misha FV -

    You are right, pulling the wires is entirely wrong. I used the small rectangular, thin blue plastic to push the cable back from the socket. It was too tight. From my experience of repairing, never pull wires. The consequences of damaging it are not worth it.

    El-Musleh -

  12. o3UAlRGEGfbskNBu
    o3UAlRGEGfbskNBu
    UOdNnvSQDNNlDUZH

    • Svita e rimuovi la vite da 31.0 mm usando un cacciavite T8 con un movimento antiorario.

    • Svita e rimuovi le 10 viti da 5.0 mm usando un cacciavite Phillips #1 con un movimento antiorario.

    I have a ps4 model CUH-2215B and all the orange screws were replaced with molded plastic pins. They don’t come out. I could rip the heads off with pliers or something, but idk how it would go back together.

    Reed Deemer -

    I have the same model as you and was stopped by this discovery, what i would try to do is remove them with pliers anyway and just use some spare small screws in the holes and see if that works, but I think no harm would happen if you just leave them out since it’s just a plate being held on and no important components are being held in place exclusively by the black pins.

    Anurag RB26 -

    Many of the screws were replaced with plastic rivets. Just use a straight head jewelers screw driver or very small chisel to shear off the head of the rivet by hitting the screw driver or chisel with a hammer. Be sure to keep the screw driver or chisel on a steep angle so not to place force down into to console. No need to replace them when re-assembling, They are not needed.

    bsey60@yahoo.com -

    Anyway of ur gonna clean ur ps4 , it's better to remove the bottom one , u can get the motherboard without even touching that cover , it's not so necessary

    sherlanmamaril -

  13. cRWcBdWIa2Iq5gGI
    cRWcBdWIa2Iq5gGI
    g3FgPIxRlKeAkmr6

    • Rimuovi la placca metallica afferrandola dai bordi e sollevala con le tue mani.

  14. 1Bd2BZFivnHLvrQR
    1Bd2BZFivnHLvrQR
    IKYmXUHMolCssKL6

    • Svita e rimuovi le due viti da 3.0 mm usando un cacciavite PH000 con un movimento antiorario.

  15. klauwEXe5RRANKma
    klauwEXe5RRANKma
    U5BWE4Xed3tH2ASK

    • Rimuovi il lettore CD afferrando con le dita i bordi della "pinza" di plastica nera e sollevala con le tue mani.

    Naja, etwas unvollständig, das Laufwerk ist ja noch drin.

    Alex -

    Where is the part number so I can order the exact fit? I have a older ps4 not the pro

    Neto Rosas -

    This guy is incorrect unless you plan on breaking off all of the rivets, and replacing only half of the disk drive. Proper replacement requires full disassembly

    Ender -

    How do I identify the part no’ for replacement please?

    Pete B -

    This guide is only for replacing the disk loading system not the entire drive.

    Drew B -

    Die Anleitung ist unvollständig und hört auf wenn es erst richtig los geht. Das Laufwerk ist noch drin und die Konsole muss restlos entkernt werden. Wärmeleitpaste sollte zur Hand sein. Bitte bitte ergänzt das noch. Es suggeriert das es deutlich einfacher ist, als es ist.

    jan hofmann -

    شكراً!!!!!!!!!!

    GABBAR GAMR -

    SO basically I just wasted my time reading this whole guide only to find out it's not to replace the whole drive?

    Nice.

    Bullet Baxter -

    Ich musste letzt endlich die komplette PS4 zerlegen, um das komplette Laufwerk zu wechseln. Bitte hier nachbessern.

    Walter Söffky -

Conclusione

Per riassemblare il dispositivo, segui le istruzioni nell'ordine inverso.
