Sostituzione schermo LCD & digitizer del Nexus 5

Scritto Da: Richard
  • Commenti: 54
Sostituzione schermo LCD & digitizer del Nexus 5

Difficoltà

Moderato

Passi

23

Tempo Necessario

1 - 2 ore

Introduzione

Questa guida riporta le istruzioni su come sostituire uno schermo LCD crepato o danneggiato e il gruppo digitizer del Google Nexus 5.

  1. uEMEGFX5kNL1BUaZ
    uEMEGFX5kNL1BUaZ
    d5aupTQfBHnkY6hN

    • Inserisci uno strumento di estrazione SIM o una graffetta nel foro vicino all'alloggiamento della scheda SIM posizionato appena sotto il pulsante di accensione.

    • Spingi lo strumento nel foro finché non sentirai lo scatto della scheda che esce.

  2. LhjbucVW4KhyyAca

    • Rimuovi delicatamente la scheda SIM con le dita oppure con un paio di pinzette se il vassoio della SIM non è completamente estratto.

    • Quando inserisci di nuovo la scheda SIM, accertati che il chip sia dallo stesso lato della parte posteriore del telefono.

  3. xEViSRJY4VVHfmOQ
    xEViSRJY4VVHfmOQ
    1Z4SSVIF3RKmHyfE
    cysveXG444Jp4nRI

    • Usa uno strumento di apertura in plastica per sganciare le clip nella parte superiore e su ogni lato della cover posteriore.

    • La parte inferiore è fissata con un po' di schiuma adesiva. Dovresti riuscire a liberare completamente la cover posteriore utilizzando un plettro di apertura. I ganci sul bordo inferiore somigliano più a delle cerniere, quindi sgancia tutti gli altri e poi apri la cover dall'alto e verso l'esterno, così da sganciarli senza romperli.

    • È meglio evitare di far leva attorno all'alloggiamento della scheda SIM, perché in questo punto la plastica è molto sottile ed è facile che si rompa se viene forzata.

    • Quando sostituisci la cover, c'è un gancio a scatto circa all'altezza del foro del flash che deve attaccarsi (uno dei tre che fissa la cover posteriore al telaio). Senza, la carica Qi (wireless) potrebbe non funzionare. Applica pressione in modo delicato ma deciso sulla "S" di Nexus, fai scorrere il pollice verso l'alto e il gancio farà presa.

    Wireless QI and NFC.

    Once I have put everything together with the new battery in place, I have as last replaced the plastic back cover, snapping all the clips back around the edges of the phone. Alas, I was quick to realise the QI Wireless charging has ceased to work.

    I almost blamed the battery, or worse, me.

    QUICK TIP: there is actually another clip in the middle of the plastic back cover - just press with your thumb just above the 'S' in NEXUS emblem and, voila! Snaps back in.

    Wireless charge and NFC - works, once again.

    cwioro -

    you just saved me like 30 bucks. thank you so much.

    Robert Nolan -

    + 1, had the same issue and pressing just near the S fixed it! Thanks a lot!

    nicco82 -

    Just a me too, I had to press above the S and it was quite a snap

    Erik Karlin -

    There seems to be two contacts that snap into place. One is in line with the led pretty much in the middle of the phone and the second one in line with the camera lens on the opposite side to the lens. The middle one for me snapped pretty lightly, but the side one required a bit more pressure. After that the nfc started working again. Thanks for posting this!

    Dennis Millner -

    Is it hard to remove the battery door? Worried I might damage it.

    Ash -

    When I openend the back cover I damaged two clips. One about 2.5cm (1 inch) below the volume controls and one on the other side about same height. The cover fits good without those two but on one side there is a small gap where the clip broke. But I have a hard cover protector on my phone so it's not that bad.

    simonlwheeler -

    The case around the sim slot is pretty thin and easy to break, best to avoid using the pry tool at this point.

    Aled Morris -

    Excellent tip, should be included in the main guide.

    fprades -

    Hey Author, i need to ur expert advice...i replaced my nexus 5's back cover. since the new one did not have the vibrators battery i had to take it from the old one and connect it to the new one...on removing i noticed that it was stuck to the cover by a glue

    Question: what glue to use to hold the battery to the cover?

    suwaid akbar -

    Any adhesive will do. I used a hot glue gun. You shouldn't need expert advice to figure that out. Use your head.

    tjt263 -

    The case around the volume control is also pretty thin.... I broke mine prying so avoid the pry there too.

    Also my back had glue at the bottom and I haven't seen mentioned

    kornerson -

  4. BTRZoDBr3OKdfuSe

    • Rimuovi le sei viti Phillips #00 da 4,0 mm che fissano il telaio intermedio al telefono.

    • Accertati di conservare tutte e sei le viti da 4,0 mm! Queste mantengono il telaio intermedio fermo e vicino alla scheda madre. I tre piccoli ganci a scatto sulla cover posteriore che la fissano al telaio assicurano che i connettori di antenna NFC e bobina di ricarica wireless facciano bene contatto con la scheda madre e funzionino al meglio.

    • Per sostituire lo schermo LCD e il digitizer, rimuovi, con lo stesso cacciavite, le altre quattro viti da 4,0 mm della cover della scheda figlia. Potresti dover forare del materiale adesivo trasparente per svitarle.

    I had a bit more success with the Phillips #000.

    Ross Light -

    Step 4 (removing the screws in the protecting plate) needs to happen before Step 2 ( removing the connectors)

    Esteban Valles -

    These were Y0 screws for me.

    Benjamin Hollway -

    Same here, Benjamin

    Ítalo Masserano -

    Me three on the Y-type screw heads.

    Jamoross -

    Same for me. I had more luck with the two screws in the middle with #000.

    Rewarp -

  5. 3BvbgCuAHbWMQxvD
    3BvbgCuAHbWMQxvD
    dFU2GMl6CVK2L61O

    • Rimuovi il telaio intermedio dal telefono.

    • Esamina il telaio intermedio e la cover posteriore e troverai tre piccoli ganci a scatto per il retro del telaio intermedio. Questi assicurano che i contatti delle antenne dell'NFC e della ricarica wireless si connettano con i rispettivi connettori a molla sulla scheda madre. Accertati che siano in buone condizioni.

    There's also some adhesive holding the motherboard cover plate in place, below the camera. Has to be pulled a little stronger than expected.

    tkatona -

  6. Oyiy1FAMsRBNFsVx
    Oyiy1FAMsRBNFsVx
    Ai1o2JTP6SWHes2S

    • Usa l'estremità piatta di uno spudger in nylon per scollegare il connettore della batteria.

  7. frVBkaKCOgoPsAYy
    frVBkaKCOgoPsAYy
    cq34GDWnpASPWTSV

    • Usa l'estremità piatta di uno spudger per scollegare il cavo a nastro della scheda figlia e allontanarlo dalla batteria.

  8. ZIeQQP3RVRHYx6Q3
    ZIeQQP3RVRHYx6Q3
    ZkXpmOus3fCXKTFm
    tSaGTMZDJD3XFcRO

    • Usa uno strumento di apertura in plastica per far leva sotto la batteria ed estrarla dal suo alloggiamento.

    • Potrebbe rendersi necessario l'uso di una pistola termica per applicare una modesta quantità di calore per ammorbidire l'adesivo sotto la batteria.

    • Non forare o piegare la batteria.

    • Se sostituirai la batteria, imballa la vecchia batetria e riciclala in modo responsabile in una location adatta.

    This part is very delicate. The adhesive is pretty solid and I did puncture the battery. It is dangerous and the battery should be replaced with a new one.

    Christophe De Wolf -

    Thanks Chris for the notice. I have added a warning on your advise. Do you think about any better way to unglue the battery?

    Gaetan -

    Like another user, I had already taken my cover off plenty of times prior to. The issue of course was removing the battery. I purchased the opening tools and spudger and used them but to no avail. I ended up using a flat tip screwdriver and got the battery out within seconds with no puncturing.

    gnewton16 -

    I'll second the flathead screwdriver. Tried different plastic tools only to damage both the battery and a spring connector on the phone. With the flathead screwdriver battery came out quite easily lifting from the bottom end. There is an adhesive tape holding the battery firmly in place that retains the adhesive surface after removing the battery, so the new battery should attach properly.

    Dennis Millner -

    Why do you need to remove the battery at all? Just replaced my rear camera without removing it. I mean, I realise that removing the power source would have been safer, but would it be enough just to detach the motherboard connector?

    eyusupov -

    This guide is about the REPLACEMENT of the battery, and for that it seems necessary to remove it first. ;-)

    biharikristof -

    Do you need to apply adhesive to the new battery to keep it in place?

    Ross Light -

    no there is generally glue remaining and it stays in place pretty good

    mmoodley10 -

    This was fantastic, thank you! I had never done anything like this before! You just saved me some money and also taught me something :D

    anagarciasebastia -

    to make Qi work, you have to press the cover really everywhere afterwards. The contacts for Qi are between th Nexus "S" and the camera. Sometimes the Qi loading needs some time to work - I assume the battery needs to expand after a few loading cycles...

    Apeiron -

    The first time I tried to replace the battery I ended up breaking off the tab on the new battery. It needs to be bent properly to fit into the socket on the phone. The second time, I connected the tab t the socket BEFORE placing the new battery into the area of the phone where it sits. Then I was able to use the plastic tool to correctly bend the connector.

    John Goldin -

    I have replaced the battery and after doing this there is a flashing red light. does this mean its just charging from empty or have I done something wrong? Do i need to press any buttons to make sure its charging properly? do i need to re open it up to check connections? what do i do? there is no mention of whether it should turn back on or what it should do/how long it will take to be up and running again.

    Bambipeach -

    I had the same "problem", though I had misplugged the battery. Just wait for a couple of minutes and your phone should start to charge. Also, I've been told to fully charge and discharge the battery 2-3 times before using it.

    Steve Simard -

    Be extremely careful while prying out the battery. I had damaged a Nexus 4 battery while trying to do this, and smoke started coming out. If you search youtube you can see how a punctured Li-ion battery can explode in seconds.

    Abhi B -

    Why not remove the battery by pulling on the small ribbon cable at the top?

    Matt Szczublewski -

    When you take out the battery, there are some sort of black tape (adhesive) around the inner circle of the empty battery chassis. I might have been too rough and taken the black tape out completely. Now with the newly replaced battery, Nexus 5 won't charge or power on. Does anyone know what the black tape is for? is it the reason or something else?

    Gracie -

    I found out that the heavy duty suction cup I bought to replace phone screens works quite effectively at removing the battery without bending or damaging it. Of course, this was being used on a battery that was itself a replacement of the original, so the adhesive may have weakened significantly.

    Rewarp -

  9. n2ATayK3owfLiG6U
    n2ATayK3owfLiG6U
    TJxKXUvK3cmasqMI

    • Usa l'estremità piatta di uno spudger per disconnettere il cavo dell'antenna di sinistra.

  10. Dmunk4EWt5kUWcpa
    Dmunk4EWt5kUWcpa
    hqx6GJNKrDWUoxHQ

    • Usa l'estremità piatta di uno spudger per disconnettere il cavo dell'antenna di destra.

    • In fase di rimontaggio questi connettori devono essere perfettamente inseriti. Se il collegamento delle antenne non è ripristinato correttamente, ne risentiranno la qualità della ricezione e delle chiamate.

  11. BtIZECIPuSFBFPPU
    BtIZECIPuSFBFPPU
    sLORMBgZOWOjEN3D

    • Usa l'estremità piatta di uno spudger per scollegare il cavo a nastro che connette la fotocamera posteriore alla scheda madre.

  12. 2vLGDUwYvSSfVU2i
    2vLGDUwYvSSfVU2i
    Cphxbju56EhIW4Ff

    • Usa l'estremità piatta di uno spudger per disconnettere il cavo a nastro della fotocamera anteriore.

  13. 5a2DDouuigCLtDrZ
    5a2DDouuigCLtDrZ
    tJcLaE5ufC3ckwqy

    • Solleva delicatamente la scheda madre verso l'alto per staccarla dal dispositivo.

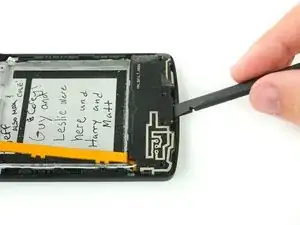

  14. lK1eLPPERuYHgDtP
    lK1eLPPERuYHgDtP
    5PoUaNuP6gS1lVdP
    Aa3mcJiIaslttcOF

    • Inserisci uno spudger nell'apertura tra la scheda figlia e l'alloggiamento in plastica.

    • Solleva la cover della scheda figlia verso l'alto per staccarla dal telaio.

    • Se Jeff, Max, Cole, Corey, Guy, Leslie, Harry e Matt sono già stati qui, accertati della sicurezza dalle intrusioni nel tuo telefono.

  15. EEFUKwFdrM4gakV6
    EEFUKwFdrM4gakV6
    ZXljglPQMTTX4OEh
    N5cZBnmthuZFxEeM

    • Usa l'estremità piatta di uno spudger in nylon per staccare dalla scheda figlia i connettori delle antenne bianca e nera.

    • In fase di rimontaggio questi connettori devono essere perfettamente inseriti. Se il collegamento delle antenne non è ripristinato correttamente, ne risentiranno la qualità della ricezione e delle chiamate.

  16. wb5bNsBpIqLeDopW
    wb5bNsBpIqLeDopW
    HnerPY6rNSKYXKBN

    • Usa l'estremità piatta di uno spudger in nylon per staccare dalla scheda figlia il connettore ZIF del digitizer.

  17. uWX5FfXk2NSoyxDj
    uWX5FfXk2NSoyxDj
    ClQKvet1XCR5hmNA
    JiOAtcT4lENWC6e4

    • Inserisci uno spudger in nylon in una delle aperture sotto la scheda figlia e fai leva per liberarla dal telaio.

    • Il telaio attorno alla porta micro USB è molto fragile: presta attenzione a non rompere questo piccolo ponticello in plastica.

    • Non staccare completamente la scheda figlia. Piegala delicatamente a fianco del telefono.

    I want to remove/replace the daughterboard/charging assembly, completely. The RH side appears to adhere to the chassis. What's the best method for separation?

    tjt263 -

  18. vj6NVxXvkPqFcIOT

    • Usa una pistola termica e applica con cautela del calore al pannello del digitizer per ammorbidire l'adesivo che lo fissa al telaio.

    • Mantieni la pistola termica a circa 20-25 cm dal dispositivo e applica il calore con movimenti alternati avanti-indietro.

  19. D2fHR6sSFGlQn3Ra
    D2fHR6sSFGlQn3Ra
    rjVx2ntasvMF6XL4

    • Inserisci l'estremità piatta di uno spudger in nylon sotto il pannello del digitizer. Con delicatezza, fai leva e stacca il pannello per liberarlo dall'adesivo.

    • Dopo aver usato la pistola termica, il telefono potrebbe essere rimasto ancora troppo caldo per poterlo toccare. Aspetta qualche istante per lasciarlo raffreddare, evitando così di scottarti le dita.

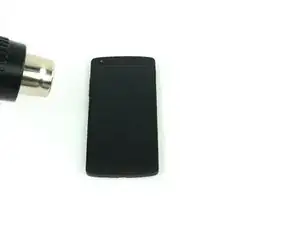

  20. sbv3hT5dyjbhDxio
    sbv3hT5dyjbhDxio
    55lTtbNqGMUFfdU3

    • Usa una pistola termica o un iOpener per ammorbidire l'adesivo lungo i bordi dello schermo.

  21. Ia1UnZhNGknWFmWZ
    Ia1UnZhNGknWFmWZ
    aRUFjIyiWUNLLkfH

    • Usa una ventosa per carichi elevati e tira con una certa forza lo schermo per staccarlo completamente dal telaio oppure quanto basta per creare una piccola fessura.

    • Il Nexus 5 adotta uno strato di adesivo molto sottile che non richiede troppa forza per essere staccato. Se necessario, applica ulteriore calore per ammorbidire l'adesivo dello schermo.

  22. 5SKJuyGeJom2YyaA
    5SKJuyGeJom2YyaA
    6CEbtvJFD3eIsFvI

    • Inserisci un plettro di apertura nella fessura tra lo schermo e il telaio.

    • Fai scorrere il plettro di apertura lungo i bordi dello schermo per rompere tutto l'adesivo rimasto e liberare il gruppo display.

  23. PKhBwCK3PNKGKPPW
    PKhBwCK3PNKGKPPW
    BNchx6vxvqbkgNYK
    T5M3kQJruiTCTgJW

    • Rimuovi con delicatezza il gruppo dello schermo LCD e del digitizer.

    • Fai passare, prestando attenzione, il cavo a nastro del digitizer attraverso il telaio.

    The crucial step to glue back the new screen is missing.

    Could you add an equally detailed description of this step ?

    Thanks !

    Anton -

    Thank you. We need this addressed it’s been 3 years.

    Sum Guy -

    I’ll second this request for a detailed description of gluing the new screen.

    Oscar Valdez -

    ^THIS!

    Oscar and Anton are on point.

    I hate your site comment filters and settings too, but just focus on not screwing things up and making pro right to repair people look like jackasses when we have corporate and possibly state sponsored efforts to undermined us already.

    Sum Guy -

    WHAT THE !&&* IS WRONG WITH YOU? Am I just suppose to follow the directions in reverse?!

    Sum Guy -

    I’ll make it easy on the mods, I did a two second google search to find the info and I am linking three videos here, here, and here.

    If you are a mod, make sure the guy in charge of writing these things takes a few minutes out of his day to finish what he started three years ago, and if that is too hard the videos are right here for him to watch and he can just copy what he sees.

    Sum Guy -

    Hello everyone. I proposed some edits to this guide to include the few critical steps consisting of: 1) Cleaning the frame; 2) Applying the screen adhesive; 3) Applying the screen. The remainder of the reassembly can be done quite easily by just following the instructions in reverse. I do not know how quickly my proposed edits will be included in the “Verified Guide”, but you can see browse them in the “unverified version” here. Any feedback over there is of course welcome.

    Patrick Finnerty -

Conclusione

Per rimontare il tuo dispositivo, segui queste istruzioni in ordine inverso.

Autore

Richard

Membro da: 07/02/17

29747 Reputazione

10 commenti

This is a nice guide to understand how to disassemble and assemble your Nexus 5. 95% can be done with this guide.

Tip: read the comments!

My own tips are:

1) Search for instructions how to use glue or double sided adhesive tape. It's a must if you want succesfully put everything back together

2) You need to transfer the speaker protection from the inside of the glass to the new glass

3) The same needs to be done with with a white rectangle. It has something to do with your LED-light at the bottom.

Saw these tips in this YouTube video https://youtu.be/jQS618ayL5w

Jeroen Meyer -

Thanks for the extra tips, Jeroen! These two steps can be found at 2:50 of the video for those who want to skip right to it. ;)

We do supply the tape as well: Tesa 61395 Tape

By the way, does the guy in this video remind anyone else of Thrawn from Star Wars Rebels (aka Lars Mikkelsen?)

Richard -

Hey, what size do I need for the tape? Is the mm size referring to width or thickness?

I assume it’s width and I need 1mm or 2mm to repair my Nexus 5, but which one?

Carsten Pfeifer -

I need a little help with this tutorial. I’ve bought a second hand N5 where someone replaced the screen, now the display lifts off slightly in the bottom left corner of the device. Pushing it back will only hold it in for a few minutes. Should I slide a tiny piece of double-sided adhesive tape underneath, or rather some modelmaking glue?

Ste Se -

The new screen is not adhered as the old one was.. not sure what I would use for that. Not terribly important for me since it sits 99% flush, and lives in an enclosed case, but the guide should probably mention this.

Kristen McWilliam -

there is no reason to fully disassemble your phone just to replace the screen all you have to do is pull off the back pannel unscrew the speaker/mic housing assembly then take it off, dissconnect the screen connector under that and lift out the little breakout board where all the connections to the phone go at this point pry off the bad screen and put in a new one plug it in and glue it down with something like rubber cement reassemble and done. I have done this about 50 times with my nexus 5. I refuse to be careful with my phone.

Christopher Deming -

note: do not use super glue to glue in your screen, you want something rubber cementy because it will hold your screen good but it can be peeled away, and any excess is easally removed. I personally use Loctite “flexable adhesive” for “ vinyl fabric & plastic”.

I like to put it under some slightly heavy books wile it drys

Christopher Deming -

oh and don’t forget your speaker grill for the phone speaker

Christopher Deming -

Is it possible to replace the digitizer and re-use the factory screen? The screen on my phone is perfect with no scratches or cracks and I would hate to replace it with some knock-off glass. My phone just randomly stopped responding to touches but is otherwise pretty mint for being so old.

Michael Guy -

Do NOT use the ifixit display adhesive to attempt this repair, not only are there no instructions, it is really easy to remove the aluminum foil which is responsible for the backlight. I nearly destroyed my new display digitizer trying to attempt this repair. Get some epoxy from home depot, don’t waste your time

Wes -
