Introduzione
Segui questa guida per sostituire un subwoofer o uno speaker destro rotto.
Strumenti
Ricambi
-
-
Rimuovi le dieci viti seguenti:
-
Tre viti con testa a croce Phillips #00 da 14,4 mm
-
Tre viti con testa a croce Phillips #00 da 3,5 mm
-
Quattro viti con testa a croce Phillips #00 da 3,5 mm con spallamento
-
-
-
Usa le dita per rimuovere il case inferiore dal corpo del MacBook, in prossimità della presa d'aria.
-
Rimuovi il case inferiore.
-
-
-
Usa l'estremità di uno spudger per rimuovere il connettore della batteria dal suo zoccolo sulla scheda logica.
-
-
-
Piega leggermente il cavo della batteria per allontanarlo dal connettore femmina sulla scheda logica, affinché non venga collegato accidentalmente durante le operazioni.
-
-
-
Utilizzare l'estremità piatta di un inseritore per scollegare il connettore del cavo piatto AirPort/Bluetooth dal connettore femmina sulla scheda logica.
-
-
-
Estrarre con attenzione il cavo della fotocamera fuori dal connettore sulla scheda logica.
-
Though not recommended by iFixit staff, some users opt to omit this step completely. For information on this, see the step comments.
-
-
-
Spostare con attenzione il cavo piatto AirPort/Bluetooth affinché non sia d'intralcio mentre si rimuove il cavo della fotocamera dall'adesivo che lo fissa al subwoofer e alla staffa AirPort/Bluetooth.
-
Rimuovere il cavo della fotocamera dalla parte inferiore dell'aletta di fissaggio presente nella staffa AirPort/Bluetooth.
-
-
-
Mediante la punta di un inseritore, scollegare con attenzione il connettore dell'antenna più vicino alla scheda logica dal rispettivo connettore femmina sulla scheda AirPort/Bluetooth.
-
Rimuovere il cavo dell'antenna dalla parte inferiore dell'aletta di fissaggio presente nella staffa AirPort/Bluetooth.
-
-
-
Rimuovere le cinque viti seguenti:
-
Due viti con testa a croce da 10,3 mm
-
Due viti con testa a croce da 3,1 mm
-
Una vite con testa a croce da 5 mm
-
-
-
Tirare il gruppo AirPort/Bluetooth e il subwoofer verso l'alto, in prossimità del centro della parte laterale dell'unità ottica, finché non ci sia sufficiente spazio fra i due.
-
Allontanare il gruppo AirPort/Bluetooth e il subwoofer dalla parte superiore dell'unità ottica.
-
-
-
Estrarre il cavo dell'altoparlante destro/subwoofer dalla parte inferiore dell'aletta di fissaggio in prossimità della parte laterale dell'unità ottica.
-
Tirare il cavo dell'altoparlante destro/subwoofer verso l'alto per scollegarlo dalla scheda logica.
-
-
-
Utilizzare l'estremità piatta di un inseritore per scollegare il connettore del cavo del disco rigido dal connettore femmina sulla scheda logica.
-
Piegare il connettore del cavo del disco rigido allontanandolo da quest'ultimo.
-
-
-
Utilizzare l'estremità piatta di un inseritore per scollegare il connettore dell'unità ottica dal connettore femmina sulla scheda logica.
-
-
-
Rimuovere le tre viti con testa a croce da 2,7 mm che fissano l'unità ottica al case superiore.
-
-
-
Tirare l'unità ottica verso l'alto, dal bordo più vicino al display e rimuoverlo dal case superiore.
-
-
-

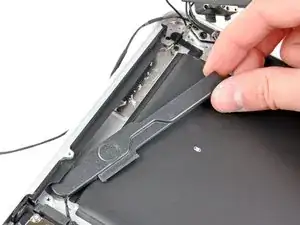

Usa uno strumento di apertura in plastica o un altro oggetto sottile per sollevare attentamente lo speaker destro dall'adesivo che lo fissa alla copertura superiore.
-
Fai leva lungo il bordo dello speaker destro finché non si separa dalla copertura superiore.
-
-
-

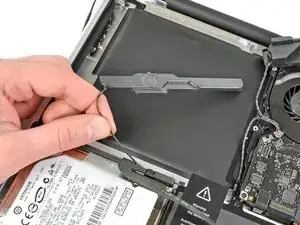

Solleva il cavo dello speaker destro lungo il bordo dell'apertura del lettore CD.
-
Libera il cavo dai ganci vicino al bordo della scheda madre.
-

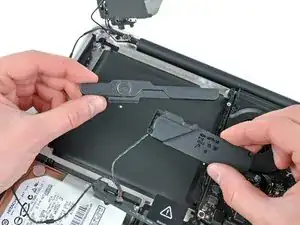

Rimuovi il gruppo dello speaker/subwoofer destro dalla copertura superiore.
-
Per rimontare il tuo dispositivo, segui le istruzioni in ordine inverso.
