ZTE Lever Power Button Replacement

Difficoltà

Moderate

Passi

11

Tempo Necessario

25 minuti

Introduzione

Follow this replacement guide to replace the power button on a ZTE Lever smartphone.

  1. c3JqaLTXpJpmEGhN

    • Remove the SD card and the Sim card from the device.

    • The Sim and SD cards are not shown here as our device did not come with them.

  2. ZUlMEHcKWY1BXqTM
    ZUlMEHcKWY1BXqTM
    Af5ZUELBMBXY2RMu

    • Use an iFixit opening tool to separate the back from the device.

  3. FIR2patmhFWAeDjW
    FIR2patmhFWAeDjW
    lbj3chyP52KxBshT

    • Remove the two 1.6mm Phillips #0 screws from the battery plug cover.

    • Remove the cover.

  4. 4C4IK22ZrvyQbYfv
    4C4IK22ZrvyQbYfv
    LUMR1PyO3JpVkGjb

    • Disconnect the battery cable from the motherboard with a plastic opening tool.

  5. bKBbOqRBaiuVDpfI

    • Use your hands, or a plastic opening tool, to pry the battery from the phone.

  6. GSeoxXwRNQYcYxs2

    • Remove the three 1.6mm Phillips #0 screws from the plastic cover on the motherboard.

  7. UfwVBcLXHwinrX3e
    UfwVBcLXHwinrX3e
    HU3uivDpTGktGNe2
    lOeQ5BlyIMQ6Es1o

    • Remove the top plastic motherboard cover using a plastic opening tool.

  8. M3OlJKLmUm3MMSAL
    M3OlJKLmUm3MMSAL
    fpIwNRMjfbNERAIc

    • Use a plastic opening tool to flip up the retaining flap on the volume ribbon cable ZIF socket.

  9. VDWIym5OxByDqOj6
    VDWIym5OxByDqOj6
    fxEoKPrstQTX6w1I

    • Peel up the volume button cable from the phone with hands, or plastic opening tool.

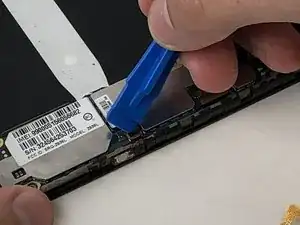

  10. wJhSNcqpNYJbPoBw

    • Disconnect the power button from the motherboard with a plastic opening tool.

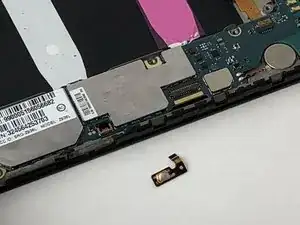

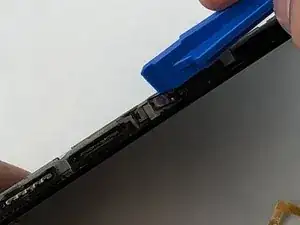

  11. p4UuFYnSYk5snSPh
    p4UuFYnSYk5snSPh
    bZLRcJgkyQwljaew

    • Peel the power button cable up from the phone with you hands, or a plastic opening tool.

Conclusione

To reassemble your device, follow these instructions in reverse order.
