Epson PowerLite Home Cinema 1040 Repair

If you are having issues with the Epson PowerLite Home Cinema 1040, please refer to the Troubleshooting Page.

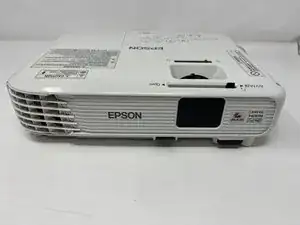

The Epson PowerLite Home Cinema 1040 was released in September 2015. It is a 1080p resolution projector that uses 3LCD technology, meaning it gives off brighter colors than most competitors. It is a fairly small and portable projector with a built-in speaker, 2 HDMI® ports with MHL® support, an RCA port, and a VGA port. This projector casts images with equal brightness in both color and white light. This projector can cast a 3000-lumen picture onto a screen up to 300 inches wide.

This 1080p resolution projector was released in September 2015 and discontinued in February 2018. It was followed by the Epson PowerLite Home Cinema 1060.

The Epson PowerLite Home Cinema 1040 can be identified by one of two model numbers: V11H772020 or H772A. The model number can be found at the top right corner of the large sticker located on the bottom of the projector near the bulb.

• Resolution: 1080 (1920x1080)
• Color: White
• Weight: 5.7 lb
• Color Brightness: 3,000 lumens
• White Brightness: 3,000 lumens

• Projection Lens: Optical Zoom/ Focus is Manual
• Projected distance: 30" - 300" at (2.85 ft - 36.02 ft)
• F-number: 1.5-1.71
• Aspect Ratio: Native: 16:10 (Widescreen)
• Projection System: 3LCD, 3-chip technology

Keystone Correction:

• Vertical: ±30 degrees (Auto)
• Horizontal: ±30 degrees (Slide bar)

Lamp Life:

• ECO mode: Up to 10,000 hours
• Normal mode: Up to 5,000 hours

For any additional questions, refer to these links:

• Epson PowerLite Home Cinema 1040 Epson Web Page
• Epson PowerLite Home Cinema 1040 Support Page
• Epson PowerLite Home Cinema 1040 Epson User Guide
• Epson Powerlite Home Cinema 1040 Epson Reviews
