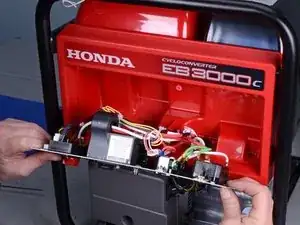

Control Box Opening Procedure
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Background and Identification
The Honda 3000 Watt Generator EB3000CK2A is a portable generator manufactured by Honda. It employs the Honda GX200 commercial engine. The generator is designed for construction and industry purposes, and Honda boasts a #1 rating by builders. This is due to the generator being reliable, long-lasting, portable, and relatively quiet.
The EB3000CK2A Honda Generator has a variety of applications, including powering air compressors, concrete vibrators, circular saws, bench grinders, and drills. The EB3000CK2A Honda Generator can operate for 9.4 hours at 50% load, meaning generator problems won’t be the reason to take a break from construction.

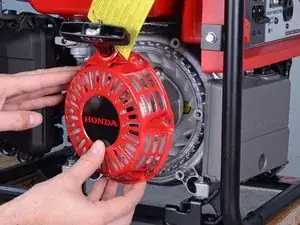

The EB3000CK2A Honda Generator has a rectangular housing that contains the Honda GX200 engine and a variety of other components, including a control panel, oil tank, fuel tank, air cleaner, fuel sediment cup, recoil starter, cycloconverter unit, muffler, spark plug, choke rod, etc. The unit has a black external frame with red, black, and gray interior components. The Honda logo is printed above the control panel.
Specifications
- Dimensions: 19.5 x 18 x 17 inches
- Weight: 71 pounds
- Power: 300 watts, 120 V
- Engine: Honda commercial OHV engine (Honda GX200)
- Engine Displacement: 196 cc
- Starting System: Recoil
- Fuel Tank Capacity: 2.6 gallons
- Noise Level: 65 decibels
