Introduzione
Aggiornamento del disco rigido per un maggiore spazio di archiviazione.
Strumenti
Ricambi
-
-

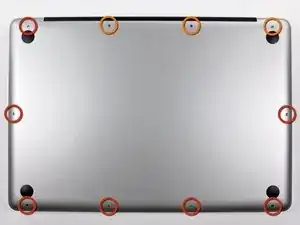

Rimuovi le seguenti 10 viti a croce Phillips che fissano il case inferiore a quello superiore:
-
Sette viti da 3 mm.
-
Tre viti da 13,5 mm.
-
-
-

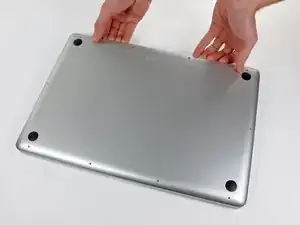

Usando entrambe le mani, solleva il case inferiore vicino alla griglia di aerazione per sbloccare le due clip che lo fissano al case superiore.
-

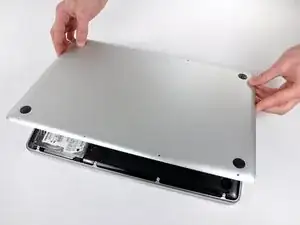

Rimuovi il case inferiore e mettilo da parte.
-
-
-

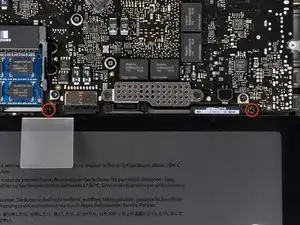

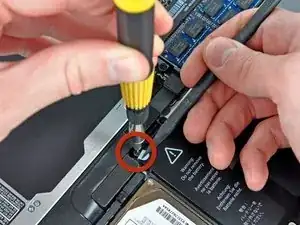

Usa la punta di uno spudger per piegare all'indietro l'aletta dell'adesivo con l'avviso di non rimuovere la batteria " Warning: Do not remove the battery" mentre rimuovi le viti Pentalobe a cinque punte celate al di sotto.
-
-
-

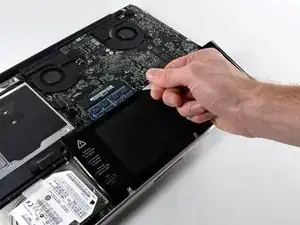

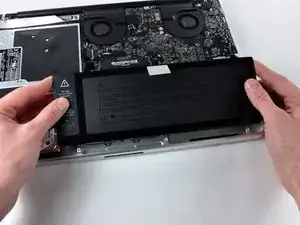

Solleva la batteria tirando la linguetta di plastica e falla scorrere lontano dal bordo lungo del case superiore.
-
-
-
Inclina la batteria all'indietro quanto basta per rendere accessibile il connettore del cavo della batteria.
-

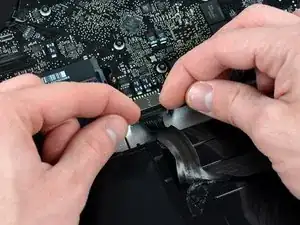

Tira via il connettore del cavo della batteria dallo zoccolo sulla scheda logica e rimuovi la batteria dal case superiore.
-
-
-

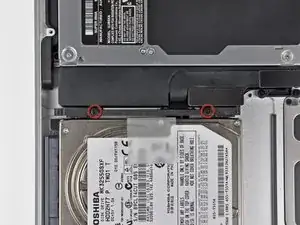

Rimuovere le due viti con testa a croce che fissano la staffa del disco rigido al case superiore.
-

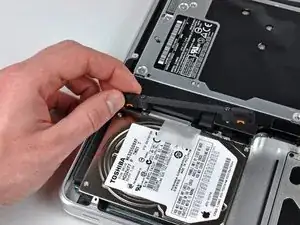

Sollevare la staffa di fissaggio fuori dal case superiore.
-
-
-

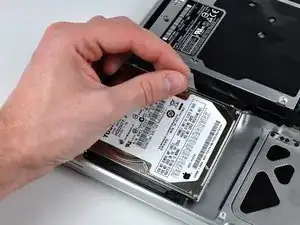

Sollevare il disco rigido dall'apposita linguetta ed estrarlo dal case, ricordando che è ancora collegato al computer tramite il cavo.
-
-
-

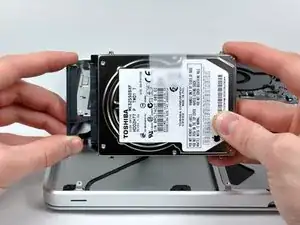

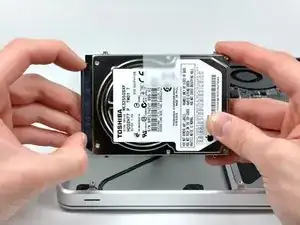

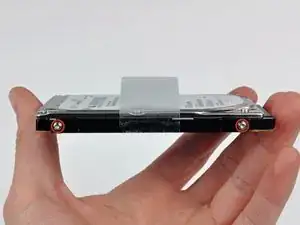

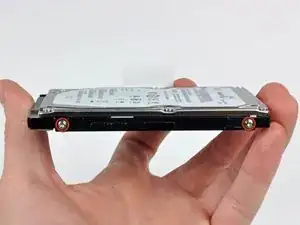

Rimuovi le due viti Torx T6 da ciascun lato del disco rigido, per un totale di quattro viti.
-
Per riassemblare il dispositivo, segui queste istruzioni in ordine inverso.
