Smontaggio LG G5

Scritto Da: Andrew Optimus Goldheart
Pubblicato: 01/06/16
  • Commenti: 107

Smontaggio LG G5

Pubblicato: 01/06/16

Smontaggio

Introduzione

Sono passati solo nove mesi ed LG ha già un nuovo capobranco: il G5. Dopo lo Smontaggio LG G4|smontaggio del G4|new_window=true] l'anno scorso, avevamo applaudito la LG che era rimasta fedelmente e risolutamente attaccata alla soluzione delle batterie rimovibile. Ma ci chiedevamo anche come avrebbero potuto sia mantenere l'accessibilità sia competere con la tendenza verso la monoscocca o unibody che dir si voglia.

La risposta oggi davanti a noi, sotto forma dell'LG G5: un telefono unibody con una batteria facilmente rimovibile. Smontiamolo e vediamo quali altri dolcetti e scherzetti nasconde all'interno.

Rimani aggiornato con le ultime notizie sugli smontaggi di iFixit! Seguici su Instagram, Twitter e Facebook!

  1. wuLnPUfsgFmOBMSk
    wuLnPUfsgFmOBMSk
    bxDVe2my2y2MpXBI

    • Siamo molto interessati al design del G5, ma all'interno si nasconde anche del potente hardware. Le specifiche prevedono:

    • Display multi-touch IPS "Quad HD" da 5,3 pollici con risoluzione 2560 x 1440 (554 ppi)

    • Processore Qualcomm Snapdragon 820 con GPU Adreno 530 e 4 GB di RAM

    • Doppia fotocamera posteriore (principale da 16 MP con stabilizzazione ottica OIS e grandangolare da 8 MP) e fotocamera anteriore da 8 MP

    • Memorizzazione interna da 32 GB, espandibile fino a 2 TB con scheda microSD

    • USB-C + 802.11 a/b/g/n/ac wi-fi + Bluetooth 4.2 + NFC + emettitore IR

    • Sensore di impronte digitali + accelerometro + giroscopio + sensore di prossimità + barometro

    • Android 6.0 Marshmallow

  2. qhTgVnm2NMaiAtuY
    qhTgVnm2NMaiAtuY
    BfTdCtMKLrnpC2iD

    • Un rapido confronto con l'LG G4 dell'anno scorso evidenzia l'esterno più liscio, arrotondato e più metallico del G5.

    • Quando messo di fronte (oppure sopra) al suo predecessore, il G5 sembra un po' più massiccio del G4. Quest'ultimo sembra anche più piacevole da tenere in mano e un po' più facile da impugnare.

    • In apparenza, la mossa di LG verso un design modulare e l'uso della lega di alluminio LM201 ha portato l'LG a tornare indietro rispetto al fattore di forma, lievemente più sottile, dell'anno scorso. Detto ciò, pensiamo che dentro ci siano delle belle sorprese.

    • È solo una nostra impressione, o l'LG5 somiglia parecchio a Johnny 5?

  3. Kb1UMmgCYtOQ5EuG
    Kb1UMmgCYtOQ5EuG
    kYjhthSs15QsK1T2
    ObfuQYOXmo6RcKEf

    • Ci fermiamo un attimo per apprezzare il piccolo remainder di LG che ricorda che il G5 ha una batteria super-rimovibile. Davvero brillante.

    • Premendo un comodissimo pulsante, facciamo scorrere fuori il modulo batteria del G5. Certo, rimuovere la batteria è ancora più facile rispetto al precedente top di gamma.

    • Le batterie sostituibili ci rendono felice. Hanno un ruolo importantissimo nel minimizzare la quantità di rifiuti speciali associata all'elettronica di consumo. E non va dimenticato che aggiungono la possibilità di portarsi dietro una batteria extra, evitando di rimanere a secco.

    • Dubitiamo che sentiremo mai raccontare di un G5 buttato via a causa di una batteria morta.

    Not only does the battery come out, but the charge port does too. If that ever breaks it will be quick to fix too.

    Gigabit87898 -

  4. kkoMRwUeoR1NiInF
    kkoMRwUeoR1NiInF
    ud3jOTsS3jCCHStq
    iLnX5iJGnOM1GAGO

    • Non vediamo l'ora di iniziare a tirar via cose, ma ci tratteniamo giusto il tempo di una scansione a raggi X. I nostri ingegnosi compari di Creative Electron ci mostrano un'anteprima di quello che affronteremo questa volta.

    • È la nostra vista a raggi X che ci inganna, oppure questo sembra molto un iPhone? Diremmo di sì, salvo naturalmente per la batteria rimovibile in un amen.

    • Una piccola copertura metallica al centro del telefono, la scheda madre a destra, la batteria nella parte inferiore sinistra: un telefono all'insegna del Feng Shui?

    • L'allineamento a raggi X conferma che il G5 è giusto a metà strada tra l'iPhone 6 (a sinistra) e il 6 Plus (a destra).

    • Sembra che quel modulo all'estremità sia più di un semplice supporto batterie e USB. È ora di provare ad aprire 'sto coso.

  5. mbh4jWXkgBnTfIIx
    mbh4jWXkgBnTfIIx
    uVThALmwEZLrTebc

    • Ci vuole una bella forza per tirar via la batteria del G5 dal suo modulo: è una cosa che difficilmente si può fare per sbaglio.

    • La batteria al litio-ioni da 3,85 V e 10,8 Wh del G5 fa registrare 2800 mAh alla bilancia, superando di un qualcosa la cella da 2750 mAh dell'iPhone 6s Plus...

    • Però si tratta di un leggero calo di capacità rispetto agli imponenti elementi da 3000 mAh trovati nel predecessore del G5 e nel recente Samsung Galaxy S7.

    • La nostra spiegazione? LG pensa che i suoi clienti trarranno vantaggio della batteria rimovibile per cambiarla sul campo in caso di necessità, quindi non serve un valore estremo di capacità.

  6. ZX33JWRCbGMEK4BU
    ZX33JWRCbGMEK4BU
    f2KarnTj3DcIhUaI
    fkYpmZF1CwZ22IMw

    • Ok, ma cosa c'è all'interno di questo stesso modulo?

    • Probabilmente magia.

    • E colla. Le coperture anteriore e posteriore del modulo sono molto ben incollate per tenerle al loro posto.

    • Aggiornamento Plasticgate 2016: questa piccola cover anteriore è in plastica, ma quella posteriore è certamente realizzata con un bell'alluminio.

    • L'apertura del modulo si fa scoprire alcune viti, della colla e una sorprendente quantità di cose interessanti e meritevoli della nostra attenzione.

    • Oltre a rendere la sostituzione della porta USB di una facilità mai vista finora, il piccolo modulo batteria contiene anche un altoparlante, delle antenne e molti contatti a molla.

  7. 6UUEunSOMiFrTcLv
    6UUEunSOMiFrTcLv
    SepPaFEFvUJN2sw1

    • Acquisito il fatto che abbiamo rimosso la batteria senza aver dovuto aprire il telefono, rivolgiamo la nostra attenzione alla scheda SIM.

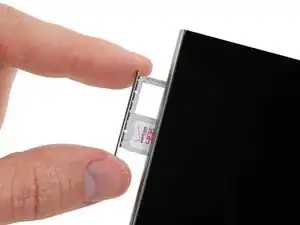

    • Un singolo vassoio accoglie sia la scheda SIM sia la microSD.

    • Benché il G5 non supporti la funzione adoptable storage di Android, LG resta fedele alla sua tradizione di integrare un supporto per memorie esterne nei suoi telefoni al top di gamma: un'altra vittoria per la longevità e, con tutta polarità, una netta riduzione nella produzione di rifiuti elettronici.

    • Certamente verrà il giorno in cui non basteranno più 2 TB di memoria nel tuo smartphone. Ma ora come ora, questo giorno sembra ancora abbastanza lontano.

    If someone wanted adoptable storage on the LG G5, it isn’t too hard to run adb commands: https://forum.xda-developers.com/showpos...

    labwolley -

  8. ZLqDHxJULGl6rlnt
    ZLqDHxJULGl6rlnt
    wi4GqvYxCQhoGGET
    acgcg2lSMDpbXvLM

    • Tolte solo due viti e fatte scattare alcune clip, solleviamo facilmente il display. Nessun fastidio, nessun adesivo.

    • È decisamente un'apertura del display di tipo iPhonesco, inteso nel miglior modo possibile. O almeno è molto simile a come la rimozione del display dell'iPhone era una volta, prima dell'irruzione di tutto quell'adesivo che ha fatto finire la festa.

    • La realtà è che, a parte quello che c'è all'interno, LG alla fine ha risolto la questione unibody modulare. Il display è montato senza apparenti giunzioni, dando all'insieme un aspetto di classe pur mantenendo l'accesso alla batteria. Speriamo che questo trend prenda piede.

  9. Che cosa c'è di meglio di una batteria rimovibile dall'utente? Perbacco, una batteria rimovibile dall'utente con un ammortizzatore meccanico.

    • Che cosa c'è di meglio di una batteria rimovibile dall'utente? Perbacco, una batteria rimovibile dall'utente con un ammortizzatore meccanico.

    • Questo aggeggio meccanico a molla aiuta la batteria del G5 a scivolare perfettamente nella sua area di parcheggio e quando la fai scattare in posizione fa sentire un piacevole clac tattile.

    My g5 battery wont fully go in. The chin wont fully click into place. Is this thing broken?

    Zhe Ghost D1 -

  10. sSbCL4f4TfdjeiDu
    sSbCL4f4TfdjeiDu
    yGYZyJKYKMVcXi2p
    jQs4qNlKMa6PekyL

    • Con il display fuori dalla circolazione e la batteria rimossa fin dall'inizio, lo chassis ha poco da nascondere: motore di vibrazione, jack cuffie e pulsanti sono tutto quello che resta. È ora di vuotare la vasca.

    • Una piastra metallica massiccia e molto ben incollata tiene il pulsante premuto contro il case e probabilmente aiuta a lasciare fuori acqua e polvere. (Ci ricorda anche un po' il logo bimetallico Apple).

    • Il sensore di impronte digitali del G5 è un po' diverso da quello che abbiamo trovato nel Nexus 5X prodotto dalla stessa LG, ma integra un set familiare di contatti a molla.

    What kind of adhesive should I use for the power button metal plate?

    Ethan Keltner -

  11. UrJ4YXshIMaLSIiD
    UrJ4YXshIMaLSIiD
    dRT4dTLasy3SVemX

    • Ed ecco che se ne esce una fotocamera anteriore e una (delle due) fotocamera posteriore: evviva la modularità!

    • Quella grande e brillante è la fotocamera posteriore primaria da 16 MP, dotata di un contorno extra per ospitare il meccanismo di stabilizzazione ottica dell'immagine.

    • La terza e ultima fotocamera, quella posteriore supplementare da 8 MP con il furbo obiettivo grandangolare, è intrappolata senza speranza sotto la scheda madre, quindi torneremo a occuparcene tra un momento.

  12. cTCsVwRELuZEVEFG
    cTCsVwRELuZEVEFG
    YcVWLaqqpUalEPNM
    LTYmCKdKeKHMjWrV

    • Tiriamo via la scheda madre e acchiappiamo l'ultima fotocamera per la classica foto di famiglia! Da sinistra a destra:

    • Come il G dell'anno scorso, il G5 adotta una fotocamera ƒ/1.8 da 16 MP, con un sensore immagine formato 1/2.6".

    • LG ci ha messo dentro anche una fotocamera grandangolare a 135° con apertura ƒ/2.4 e un sensore di immagine da 8 MP: la soluzione perfetta per le tue sequenze fotografiche con tigri che balzano.

    • A completare il trio, la minuscola fotocamera anteriore da 8 MP, in linea con il cattura-selfie dell'anno scorso.

    our tiger jumping. hahahaha

    Han Han -

  13. j1hRjrKTXNWsgvWa

    • Si è parlato molto della nuova lega di alluminio del G5, ma ora diamo un'occhiata al suo silicio:

    • 4 GB di RAM LPDDR4 Samsung K3RG2G20BM-MGCJ sopra il processore quad-core Qualcomm Snapdragon 820

    • 32 GB di Universal Flash Storage 2.0 MLC Samsung KLUBG4G1CE-B0B1

    • Controller NFC NXP 54802

    • IC Quick Charge 3.0 Qualcomm SMB1350

    • Trasmettitore Ultra-HD Analogix SlimPort ANX7816

    • Controller/Switch USB-C Analogix SlimPort ANX7418

    • Codec Audio Qualcomm WSA8815

    There is WCD9335 audio codec in near of NXP 54802 NFC Controller

    Han Han -

  14. meb2R2paOrbyw2Yc

    • Un'altra beneficiata di chip è sul retro della scheda madre:

    • Chip combinato 5G e Wi-Fi Broadcom BCM43455

    • Ricetrasmettitore LTE Qualcomm WTR3925

    • Amplificatore di potenza Multimode Multiband Avago ACPM-7788

    • Modulo amplificatore di potenza LTE Skyworks 77814-11

    • Switch RF Skyworks SKY13560

    • IC gestione alimentazione Qualcomm PM8996

    • IC gestione alimentazione Qualcomm PMI8996

    Concernant le dual sim version H860 est ce que c'est même carte mère . car j'ai un probleme de réseau.avec d'aure mobile je capte bien le signal contrairement a mon G5 où il affiche appel d'urgence ou pa de service surtou a l'intérieur de la maison

    Tou ghanou -

    How I can replace the SIM+microsd socket? Do I need a welder or is a clip "plug & play"?

    Vicent Aleixandre -

    Hello sir lg g5 H860 power ic problem . How to fix it.plz help.

    Suman biswas -

    Nice blog post.

    Usman IT -

  15. LKemkRm4yWJqBFZk

    • Come operazione finale, diamo un'occhiata più da vicino al display (prodotto da LG come è abbastanza ovvio). Il suo cavo integra chip e stampigliature; inoltre troviamo qui un altoparlante e una manciata di contatti.

    • Uno sguardo ravvicinato al cavo del display rivela che questo G5 in apparenza ha un nome: Alice.

    • Non andremo ancora più a fondo in questa tana da conigli; abbiamo un punteggio da assegnare!

    What are the contacts on each side of the ear speaker? I ordered a replacement screen and they are not included. They go below the plastic frame.

    Charles Holder -

    I also need this information!

    Daniel Berthelsen Wohlfart -

    I am missing the two that are on the right of the speaker, I can not tell if they are specific to network? Help please.

    steve -

    Same thing here. I am missing a contact in the replacement display, which is the terminal to a flatband cable buried in the displays plastic frame in the original. (Antenna ?) This contact connects to a pad on the back cover. But everything on my phone seems to be working fine, bluetooth, nfc, gps,wifi,cell. Any idea ? In the picture the contact is top/right close to the rim.

    dl7utx -

  16. KEVL1LUslTEBSoVO
    KEVL1LUslTEBSoVO
    pDrNSGAJYfWsm2SV

    • Punteggio di riparabilità dell'LG G5: 8 su 10 (10 è il più facile da riparare)

    • La batteria scorrevole, rimovibile dall'utente, comporta un enorme beneficio per la vita utile del telefono.

    • L'assenza di colla e l'uso limitato delle viti rendono relativamente semplice la procedura di apertura.

    • Le viti sono standard Phillips #00, quindi è probabile che tu abbia già lo strumento giusto nella tua cassetta degli attrezzi.

    • Molti componenti sono modulari, quindi la sostituzione delle parti e più facile ed economica.

    • Le cover del modulo sono incollate, rendendo le riparazioni un po' appiccicose, ma il modulo in se stesso semplifica di molto la procedura di sostituzione di una porta USB guasta.

    • Il gruppo display monoblocco deve essere sostituito se si rompe l'LCD oppure il vetro, aumentando i costi.
