Introduzione
Apple si è messa silenziosamente al lavoro per migliorare i suoi laptop di livello pro, rendendoli... più silenziosi. Risulta che abbiano migliorato le sue rumorose tastiere più di quanto abbiano fatto trapelare, cosa che porta a chiederci: che cos'altro c'è di nuovo? Tutto quel che ci serve per scoprirlo è una squadra di smontaggio e diverse migliaia di verdoni, leggi dollari. Prendi i tuoi migliori attrezzi e lanciamoci insieme nell'operazione: stiamo per smontare il MacBook Pro Touch Bar da 13" nella versione 2018.
Vuoi indagare sullo smontaggio di altri dispositivi? Seguici su Facebook, Instagram e Twitter per tutte le novità dal mondo degli smontaggi.
Strumenti
-
-
Prima di mettere sotto i ferri il paziente, affrontiamo lo specifico delle specifiche.
-
Display Retina da 13.3" retroilluminato a LED con True Tone, risoluzione di 2560 x 1600 resolution (227 dpi), gamut colore P3.
-
Intel Core i5 quad-core da 2.3 GHz (fino a 3,8 GHz con Turbo Boost) con Intel Iris Plus Graphics 655 integrata.
-
Coprocessore specifico Apple T2
-
8 GB di SDRAM LPDD3 da 2133 MHz
-
SSD da 256 GB su PCi-e
-
Wi-Fi 802.11ac e Bluetooth 5.0
-
Quattro porte Thunderbolt 3 (USB-C) che supportano la ricarica, DisplayPort, Thunderbolt, USB 3.1 Gen 2
-
-
-

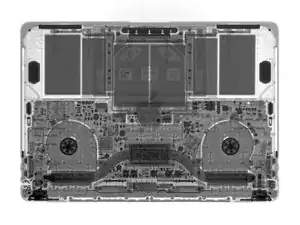

Allarme spoiler! Come sempre, ci piace usare un occhio da supereroe per analizzare le interiora della nostra vittima.
-

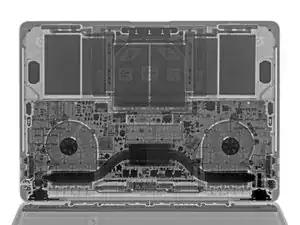

Queste immagini ai raggi X ti arrivano grazie ai nostri ingegnosi compari di Creative Electron.
-
State tranquillo, dobbiamo ancora farlo a pezzi. Aspettate a dirlo...
-
-
-

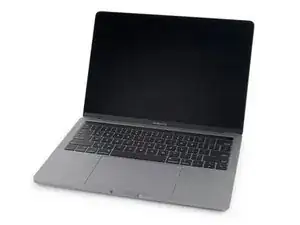

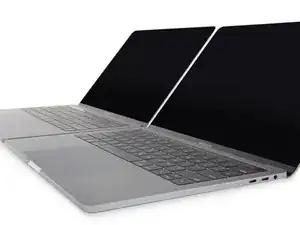

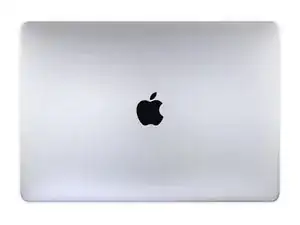

Abbiamo tirato fuori il MacBook Pro da 13" con Touch Bar dell'anno scorso per un rapido confronto. Se dovessimo giudicare un MacBook dalla sua carrozzeria, diremmo che è la stessa macchina.
-
Apple afferma che questa tastiera "buttefly" (a farfalla) è un po' più silenziosa, ma per il resto è immutata. Dopo aver picchiato sui tasti per un confronto diretto, abbiamo certamente percepito un tono più basso e meno secco, ma non è affatto facile notare una variazione in termini di decibel.
-

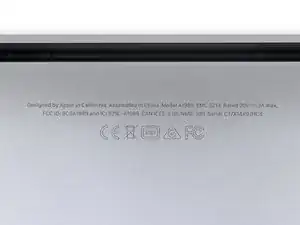

Il più grande cambiamento visto finora, il nuovo numero modello: A1989 ed EMC 3214.
-

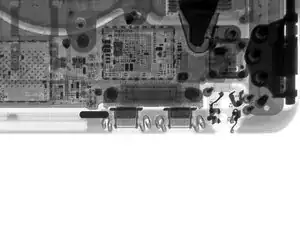

I raggi X mostrano anche il ritorno del jack cuffie modulare e ci consentono di dare una sbirciata all'hardware Thunderbolt. Questo ora viaggia a piena velocità su tutte le quattro porte, grazie in parte alle quattro corsie supplementari PCIe del processore Core di ottava generazione.
-
-
-

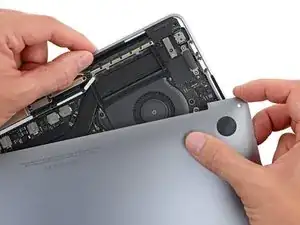

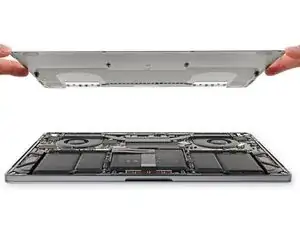

Il nostro smontaggio inizia sul serio: facciamo fuori un sestetto di viti pentalobe, passando per quella che ormai è una procedura di apertura molto familiare.
-

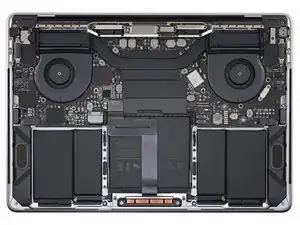

In base a una prima occhiata, le pareti interni sembrano molto simili a quelle del MacBook Pro dell'anno scorso... e dell'anno ancora precedente.
-
Dopo una seconda occhiata, decidiamo di guardare più da vicino e dare una terza occhiata.
-
-
-

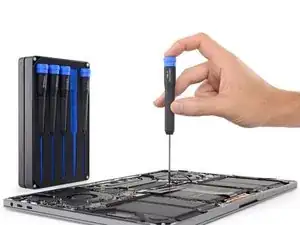

Disconnettiamo la batteria senza problemi: è tenuta giù da una vite Torx T5, quindi usiamo uno dei nostri Cacciaviti Pro Tech Specialty per averne facilmente ragione.
-

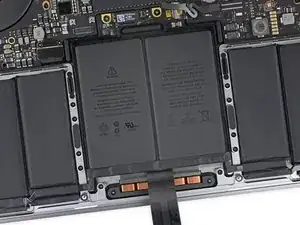

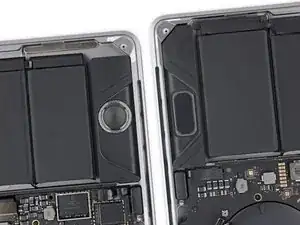

Con i suoi 58,0 Wh, questa batteria è parecchio più prestante di quella da 49,2 Wh che avevamo trovato nello smontaggio del nostro 13" Touch Bar originale.
-
Si scopre che questa botta di energia in più è ottenuta con una batteria un filo più grande, questa volta in configurazione a 6 celle invece di 5. E' anche più pesante: 232,7 grammi contro i 196,7 della vecchia batteria.
-
Ma il peso totale di questo MacBook Pro non è cambiato di una virgola. Non sappiamo con certezza quali parti siano state messe a dieta, ma sembra che Apple abbia tolto un po' di massa al case superiore.
-
Anche gli altoparlanti nuovi-e-migliorati (a destra) sono cresciuti: sono più lunghi e stretti per riempire tutto lo spazio rimasto e sono posizionati contro la scheda logica grazie al nuovo design del case superiore.
-
-
-
Un pezzo unico, in tema di riparazioni felici: il trackpad è sostituibile come sempre. Fate girare alcune viti Torx e verrà via subito.
-

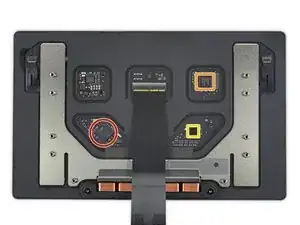

Un primo assaggio dei chip lo troviamo sotto il trackpad (il tutto appare virtualmente invariato rispetto alla prima uscita del 2016):
-
MCU Cortex-M3 ARM STMicroelectronics STM32F103VB
-
Controller Touch Broadcom BCM5976C1KUFBG
-
ADC Delta-Sigma a 6 canali e 24 bit Maxim Integrated MAX11291ENX
-

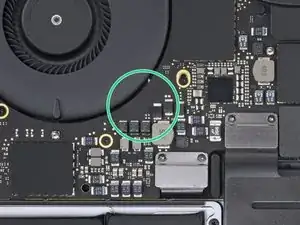

Nel frattempo, non possiamo non notare che la porta verso il nulla - che si è poi scoperto serviva al recupero dati - del modello precedente è misteriosamente assente.
-
-
-
Apple ha messo molta attenzione nel citare la sua ultima tastiera di terza generazione nel comunicato stampa. La conclamata silenziosità ci appare un concetto un po' debole, e sospettiamo che sotto ci sia dell'altro.
-

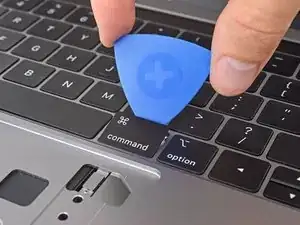

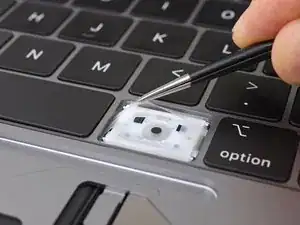

Dopo tre anni di esperienza con la rimozione delle cover dei tasti, siamo in grado di aprire il coperchio senza danneggiare le delicate clip; ed ecco una bella ricompensa.
-
Come potreste aver già sentito, qui sotto c'è una barriera in silicone nuova di zecca.
-
Questo ci spinge a un'ulteriore analisi. Faremo un'incursione più in profondità sulla situazione della tastiera più avanti, nel corso della settimana. Restate in contatto!
-
-
-

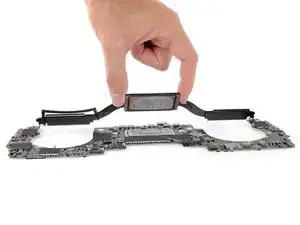

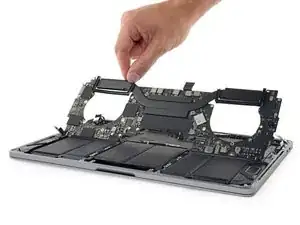

È ora di liberare questa scheda logica e di dare un'occhiata in giro!
-
Come di consueto, un dissipatore di aspetto relativamente modesto si occupa di raffreddare la CPU e la grafica integrata. Come contorno c'è la sovrabbondanza di pasta termica tipica di Apple.
-

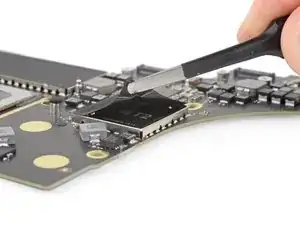

La nostra prima sbirciata alle parti in silicio ci fa scoprire il molto reclamizzato T2.
-
Già visto in precedenza nell'iMac Pro, il chip personalizzato T2 di Apple ha preso su di sé il carico di un notevole numero di funzioni. Ma noi ci aspettiamo di trovare molto altro silicio su questa scheda. Andiamolo a vedere!
-
-
-

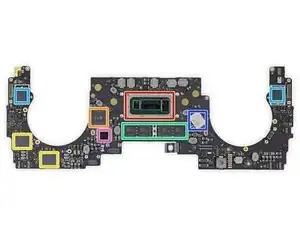

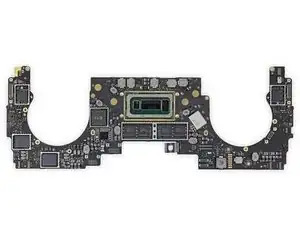

Ecco la solita scheda a forma di baffi a manubrio piena di chip.
-
CPU Intel Core di ottava generazione i5-8259U con Intel Iris Plus Graphics 655
-
Coprocessore Apple T2 APL1027 339S00533, disposto sopra a 1 GB di memoria LPDDR4 Micron MT53B256M32D1TG-062 XT:C
-
Toshiba TSB 3226 J86404 TWNA1 (probabilmente memoria flash da 2x 64 GB, 128 GB in totale da questo lato)
-
4x memoria LPDDR3 da 2133 Hz e 16 Gb SKhynix H9CCNNNBJTALAR-NVD (8 GB totali)
-
Controller Intel JHL7540 Thunderbolt 3
-
Modulo Wi-Fi/Bluetooth Apple/Universal Scientific Industrial (USI) 339S0042
-
338S00267-A0 (probabilmente un PMIC Apple)
-
-
-

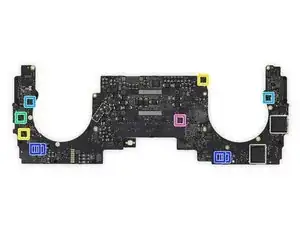

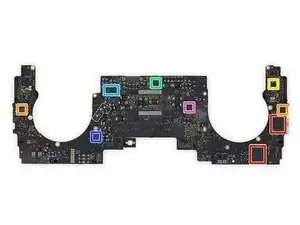

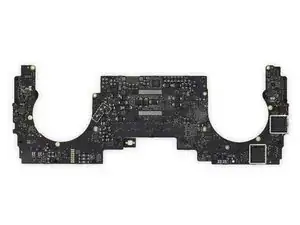

Rovesciamo il tutto per trovare dell'altro silicio:
-
2x memoria flash da 64 GB Toshiba TSB 3226 J86404 TWNA1 per 128 GB in totale da questo lato e 256 GB totali
-
2x Texas Instruments CD3215C00 83CFZST
-
Codec audio Cirrus Logic CS42L83A
-
Controller Intersil ISL95828AHRTZ PWM
-
2x multiplexer della porta del display NXP Semiconductor CBTL06142F
-
Buck controller sincrono Texas Instruments TPS51980A
-
Modulo NFC sicuro NXP Semiconductor PN80V
-
-
-
L'identificazione degli IC continua:
-
ON Semiconductor FDMF5808A, FDMF5804 e Vishay SIC532 power stage
-
Gestione dell'alimentazione Apple 338S00438 ?
-
Accelerometro Bosch Sensortec BMA282 e sensore della temperatura remota/locale Texas Instruments TMP464 a cinque canali
-
Interruttore Diodes Incorporated PI3USB32 dual SPST USB 2.0
-
Memoria flash Winbond W25Q80DV 8 Mb serial NOR
-
Amplificatore audio Texas Instruments TASxxxx
-
Gestione dell'alimentazione della memoria DDR Texas Instruments TPS51916
-
-
-
E, servito come dessert, ecco nientemeno che un nuovo caricabatterie USB-C!
-

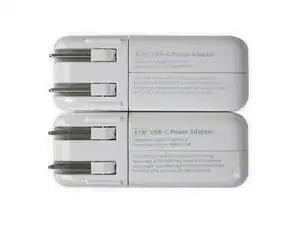

L'alimentatore a corrente alternata incluso con questo MacBook Pro da 13" in effetti ha il nuovo numero modello A1947 (invece di A1718, dispositivo in basso), quindi è ora di attivare il cutter a ultrasuoni per saperne di più.
-

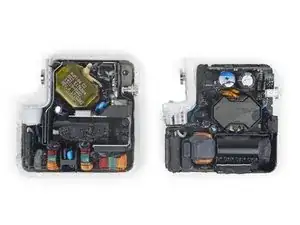

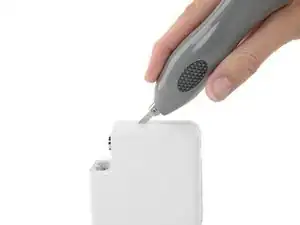

Dopo aver scavato faticosamente attraverso strati e riempitivi gommati quali non abbiamo mai visto dentro uno di questi cosi, riusciamo ad arrivare alle parti interne.
-
Rispetto a quanto richiesto da questa unità, l'apertura dell'alimentatore precedente (a sinistra) era stato una passeggiata, ma sembra che questo modello abbia beneficiato di parti interne ridisegnate, di una schermatura supplementare e di tanta schiuma gommata per una migliore resistenza agli urti.
-
Detto ciò, Apple ha anche sostituito la porta USB-C in alluminio con una in plastica...
-
-
-

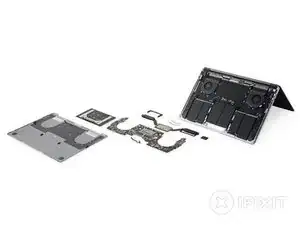

Ecco che cos'è rimasto dopo che il MacBook Pro 2018 ha rivelato i suoi segreti, tra i quali ricordiamo:
-
Una batteria più grande che ha ristretto gli altoparlanti, imponendo a questi una forma più stretta e allungata.
-
Una tastiera addobbata con una sottile barriera di silicone, soluzione che potrebbe riguardare la sola insonorizzazione, ma che è in linea con i brevetti Apple per la protezione da agenti esterni.
-
Inoltre, c'è un sistema di gestione termica che sembra invariato, nonostante la potenza più elevata sotto il cofano.
-
Aggiornamento smontaggio: volevamo andare un po' più in profondità nella nuova tastiera, perciò abbiamo fatto dei test e poi ne abbiamo fatto un intero, specifico, smontaggio. Guardalo!
-
-
-
Il MacBook Pro da 13" con Touch Bar modello 2018 si è guadagnato un 1 su 10 nella nostra scala di riparabilità (10 è il più facile da riparare):
-
Si può rimuovere il trackpad senza aver prima tolto la batteria.
-
Il processore, la RAM e anche la memoria flash sono saldati alla scheda logica. Riparazioni e aggiornamenti possono essere considerati (come minimo) per nulla pratici.
-
Il gruppo superiore del case, che comprende la tastiera, la batteria e gli altoparlanti, è incollato insieme. Questo rende impraticabile la sostituzione separata di tutti questi componenti.
-
Il sensore Touch ID funziona anche da pulsante di accensione ed è accoppiato con il chip T2 sulla scheda logica. La riparazione di un interruttore guasto può richiedere l'aiuto diretto di Apple oppure una nuova scheda logica.
-
53 commenti
RAID 0 SSD? From Samsung?
Hi Peter,
The “SSD”/flash memory is made by Toshiba.
Not in this series.
Keep in mind the T2 is a flash controller, so Apple is side stepping the PCIe/NVMe issue of the SSD instead using raw flash chips which are interleaved simular to how memory is done. The T2 presents the PCIe/NVMe interface to rest of the system.
In truth it’s like RAID, but it’s not! It’s something newer! As it’s soldered to the logic board Apple can get away with this.
Dan -
To elaborate on what Dan said, the T2 chip includes Apple’s own NVMe PCIe SSD controller, which they developed in house. Like most SSD controllers, it uses multiple channels (maybe 8 in this case?) to address the NAND flash dies and increase performance through parallelism. Both the T2 and the NAND flash packages are soldered directly to the logic board. It is also likely that the drive can tolerate the failure of individual blocks and pages, or perhaps even whole NAND dies by using parity data.
This is a different concept than RAID though, which employs Redundant Arrays of Independent Drives to increase availability and in some cases performance. RAID 0 in particular ditches the redundant bit and stripes across an array of independent drives purely for increased performance. Apple decided to put the NAND flash packages for the iMac Pro on a pair of removable modules, however they were in no way independent drives. There was still only a single SSD controller located in the T2 chip on the logic board.
The T2 processor should not be NAND Flash controller here. T2 is more like a RAID controller. Refer to https://duo.com/blog/apple-imac-pro-and-... The Toshiba chip here could be a PCIe/NVMe SSD in BGA chip package(like the one in the iPhone/iPad). The physical interface between T2 and Toshiba chip could be PCIe interface. T2 processor is also used to replace TI’s SMC controller.
JJ Wu -
@JJ Wu, The SSD controller is in the T2. To quote Apple: “Introducing the Apple T2 chip, our second-generation custom Mac silicon. By redesigning and integrating several controllers found in other Mac systems — like the system management controller, image signal processor, audio controller, and SSD controller — T2 delivers new capabilities to the Mac.”
The notion that the iMac Pro used independent drives in RAID 0 is a widely held misconception that is entirely inaccurate. Look at the packages on the modules. They are commodity multi-chip NAND packages that connect to the SSD controller in the T2 using a typical NAND bus architecture. This is essentially the same SSD as in the iMac Pro but the NAND packages are on the logic board instead of on independent modules.
@repoman27 i talked to Apple store employee. The SSD module used in the Apple iMac Pro can be replaced by other PCIe SSD(Apple does not recommend doing that) and the employee said it is PCIe interface which means it can not be typical NAND interface.
This is an example of BGA SSD on M.2 module https://www.anandtech.com/show/12819/the...
JJ Wu -
@JJ Wu The SSD in the iMac, Mac Pro, MacBook Air, and MacBook Pro (Late 2013 - 2015) is a PCIe SSD with a proprietary form factor and connector. If you have installed macOS 10.13 High Sierra or later, the firmware will be updated to unofficially support 3rd party NVMe PCIe SSDs. Then you can use an adapter to physically convert from Apple’s proprietary interface to M.2 2280 or whatever and replace the drive. Third party solutions emulating Apple’s form factor and connector are also available for these models.
That is not at all the case for the *iMac Pro*. No adapter exists because the NAND flash modules are not independent drives and are not connected to the T2 via PCIe. Look at the iFixit teardown of the iMac Pro. Try searching for an adapter or third party SSD upgrade solution. You will not find one.
Data recovery from a failed logic board is probably handled by the T2 chip, since it serves as the flash controller. If the T2 chip is toasted, the contents of the flash memory are probably beyond recovery, since the T2 almost certainly uses a hardware key as part of the encryption scheme. No idea about how service techs would communicate with the T2 on an otherwise failed board. Maybe via an existing bus connector?
Intel JHL7540 Thunderbolt 3 Controller? The new Titan Ridge controller? Does that mean these MacBook Pros support DisplayPort 1.4?
Wow, new TB3 controller, really? Does that mean these 13-inch notebooks now have full-speed on all four TB3 ports?
That was already confirmed, yes. The new 13-inch MacBooks have full-speed on all four TB3 ports (as fas as I know, the previous generation didn’t not because of the controllers, but because the Intel CPU itself only had 12 PCIe lanes, which weren’t enough to have full-speed on all 4 ports). But I haven’t seen the DisplayPort 1.4 support mentioned anywhere, which is why I presumed that Apple didn’t update the controllers to the Titan Ridge generation.
Seems like it!
Sepand -
Ok, it seems I was too optimistic. According to Anandtech:
It's also worth noting that since the DP 1.4 spec is not supported by Intel's iGPUs, Intel-powered notebooks and desktops looking to take advantage of Titan Ridge's DP 1.4 functionality will have to use dGPUs to drive their TB3 controllers. This will somewhat increase the complexity of these designs, since previously most vendors only needed to route the iGPU to the TB3 controllers.
So it's certain that the 13-inch MacBook Pro does not actually support DisplayPort 1.4, because the integrated Intel GPU does not support it (and you cannot add a dGPU to the 13-inch MacBook Pro). As for the 15-inch MacBook Pro, it remains a possibility, but I don't think that Apple did in fact decide to use the dGPU to drive the Titan Ridge controller, which means that the 15-inch MacBook Pro doesn't support it either, I presume.
External displays are always driven by the discrete GPU on the 15-inch, so there is still hope there. I believe the internal display is connected to the Intel integrated GPU via eDP to allow graphics switching, but 4 DisplayPort main links from the AMD GPU feed the two Thunderbolt controllers.
