Sostituire lo schermo di un Google Pixel 2

Scritto Da: Adam O'Camb
  • Commenti: 57
Sostituire lo schermo di un Google Pixel 2

Difficoltà

Moderato

Passi

18

Tempo Necessario

30 minuti - 1 ora

Introduzione

Usa questa guida per sostituire uno schermo rotto o guasto, incluso il digitizer, del tuo Google Pixel 2. Se la parte sostitutiva non comprende l'adesivo, ti servirà della nuova colla per poter sigillare il telefono. Inoltre possono esserci delle piccole parti da trasferire dal display originale a quello di ricambio. Ispeziona con cura entrambi gli schermi per accertati che tutti i componenti siano trasferiti dal vecchio al nuovo display.

  1. wAO2rliBKNjRPNFp
    wAO2rliBKNjRPNFp
    sOF3jgMKtXwTw3QE

    • Se il vetro del tuo schermo è crepato, applica del nastro adesivo su di esso per evitare di farti male e impedire che la rottura si espanda. In questo modo si realizza anche una superficie liscia che permette alla ventosa di aderire.

    • Applica una ventosa il più vicino possibile al lato con il pulsante del volume del telefono, appena prima della curva del bordo.

    • La ventosa non può aderire bene sulla parte curva del vetro.

    My screen is severly cracked. I would recommend clear packaging tape as it is wide enough to accomodate the suction cup. Thinner cellophane tape won’t seal properly.

    John Tippitt -

    Does the Google Pixel 2 have be powered off before removing the digitizer screen? Its not mentioned in this article...

    Will the phone be damaged if the power is still on when disconnecting the broken screen?

    Alex -

    Replacing the battery in my Pixel 2 was successful because I read the comments. They are invaluable in this endeavor.

    David Castro -

    Suggest procedure revision:

    Step 1: Read all steps and associated comments before proceeding.

    Step 2: Ensure they supplied you with the right F$%^ING TOOLS in the kit before proceeding.

    I'm F$%^ED because any store around me that might have this T4 Torx bit is already closed and my screen is already off. My kit came with a T2 Torx bit which is not used anywhere in this entire process.

    Jens Davidsen -

    I bought one of the kits and it had everything needed to change the battery except the alcohol, including spudgers, screwdriver, torx (2 sizes), tweezer, alcohol dispenser, glue strips and die-cut glue card that fit the phone case perfectly. I followed these instructions and read the comments. Applied alcohol and patience, took my time and got the job done without any damage to the phone. Thank you ifixit!

    Jeffrey Price -

  2. avTQkVCTMJZevgJY
    avTQkVCTMJZevgJY
    dJrwweYej11ijuYM
    txYtFqoGDv4UxBDE

    • Tira la ventosa con una trazione decisa e costante e inserisci un plettro di apertura tra il pannello frontale e la cover posteriore.

    • Non inserire il plettro più di 1.5 mm, altrimenti rischierai di danneggiare il pannello OLED.

    • Questa operazione richiede parecchia forza e pazienza. Se hai dei problemi a eseguirla, cerca di far oscillare la ventosa e lo schermo per indebolire l'adesivo oppure applica del calore con un iOpener, una pistola termica o un asciugacapelli.

    • Il pannello dello schermo è fragile. Se hai intenzione di riutilizzare il tuo display, assicurati di inserire gli strumenti non più di quanto serva a separare l'adesivo. Inserendoli a maggiore profondità potresti danneggiare il pannello OLED sotto il vetro.

    They cannot emphasize enough how careful you need to be when separating the screen. The iOpener does not work well enough to prevent breakage (opinion). I spent a majority of the hour and forty five minutes replacing my battery on removing the screen, i.e. reheating the iOpener, warming the device, slowly, with multiple passes, separating the adhesive. Use a heat gun or blow dryer.

    Devin McMillen -

    How many passes do I need? I do have a heatgun but I’m afraid to discolor or damage the screen. Anyone know the best temp before stopping to seperate the screen?

    Sen Lin -

    try the alcohol as instructed instead of heat. “Do not heat your phone. If needed, you can use a dropper or syringe to inject isopropyl alcohol (90+%) around the edges of the back cover to weaken the adhesive.  “

    Rogerio Sa -

    Make sure to remove the adhesive under the top and bottom speakers to make it much easier to remove the screen.

    Chibi Chica -

    Isopropyl alcohol works well to loosen the adhesive. However - GO SLOW. Slide the pick a bit, then apply some isopropyl alcohol into the gap where you’re sliding toward. Wait a moment, then slide a bit more. Move very slowly, particularly around the corners!

    Raquel Smith -

    Any idea on what to do when the suction cup pops off of the screen before there’s enough clearance to slide the pick in?

    Douglas Leenhouts -

    I used a hairdryer to weaken the adhesive. If you place your finger in the path of the hairdryer you’ll have a good idea of when too much heat has been applied (when your skin becomes unhappy at the temperature). BE VERY GENTLE. I cracked my screen because I didn’t weaken the adhesive enough. I also chipped(dog eared) the corner of the OLED screen underneath with one of the plastic tools. Don’t stick it in too far. As the guide says, use the flat edge or the pick to help control this.

    Alex Lawson -

    I did the 90% alcohol and the iOpener. Took a while but finally got the screen off. As others have mentioned, there is lots of adhesive around the top and bottom speaker openings. I ended up reaching in with a small brush and more alcohol to get it. I used a tooth pick to break the final adhesive.

    I also had a set of dental tools and a set of magnifying goggles (I’m a model railroader) which helped greatly.

    John Reagan -

    Like others have said, THIS STEP IS THE MOST DANGEROUS!!! You must be extremely gentle (no real force should be necessary to separate the screen from the glue) with the screen and take your time. (IMO if it takes you less than 30 mins to get the screen loose, your going too hard at it). Two suggestions from my successful battery replacement that I can give, use alcohol instead of heat (seems to work better with this phone) and start with a much thinner plastic tool that is also flexible (I used a metro card from the NYC MTA). This will allow you to get at the tiny gap without using any significant force and then get some alcohol into the gap by dripping it down the thin plastic tool. Honestly, IFIXIT should make a small thin rectangular card to use for this with lines around it for measurements…

    Aleksandr Demidenko -

    The first pry to get the pick inside the edge of the screen needs A LOT OF HEAT and a very firm pull, and just as someone else mentioned, the iOpener did not work well, instead, a regular hair dryer proved more beneficial in applying a controlled amount of heat until its almost too hot to touch. Then, once the pick is inside 99% isopropyl alcohol worked wonders, use a syringe or dropper to apple some at the edge, wait for about 15 seconds and move the pick centimetre by centimetre. Make sure to not insert it more than 2mm at the sides. I took more than an hour just to get the screen off.

    A Sid -

    As an experienced (1) screen remover, I’d recommend that if you don’t plan to change your screen, change your plans. You will be less disappointed that way. I managed to get mine for just over $10 with shipping and test it first (weak Battery). Pixel 3’s (Not 3a or XL) sure look a lot better now. They have removable backs. My pixel 1st gen was a cheap lesson. Looking for another cheap one to try alcohol on.

    Scott Graham -

    Used a hairdryer on medium heat (very warm but not burning hot), suction cup, and applied isopropyl alcohol into crack made when applying pressure. Rinse and repeat until loosened enough to get a pick in. Took many attempts. Don't try to force the pick in, as you could chip the edge of the thin glass of screen this way. The suction cup pressure and weakened adhesive should do the work. Once the pick gets it, you can work a little faster but did the same basic steps minus needing the suction cup anymore, working around the edges. Good lighting is a must to see the crack forming.

    Arthur Kay -

    I have to disagree with folks who said this is the longest step of the whole process...for me...the longest step was having to drive around and find a T4 Torx bit because this kit came with a T2 Torx which proved absolutely USELESS...

    The screen came off very easily with the liberal application of 90% Isopropyl Alcohol. Took around 15min to get the screen off and I hardly had to use picks except for the top and bottom.

    That Torx bit though... F$%^ED ME

    Jens Davidsen -

  3. RSYXSBeeSGreK1tU
    RSYXSBeeSGreK1tU
    rJRrccJKxCssQRxL

    • Nei passi successivi, è richiesta una particolare attenzione ad alcune zone per evitare di danneggiare il telefono:

    • Non inserire il plettro per più di 9 mm nel bordo inferiore del telefono. Se il plettro entrasse in contatto con la parte curvata del pannello OLED, lo schermo potrebbe danneggiarsi.

    • Nell'angolo superiore sinistro, limitati a dei tagli molto superficiali: infilando l'attrezzo molto all'interno potresti danneggiare la fotocamera anteriore.

    • Inserire lo strumento di apertura per più di 1,5 mm sui lati del dispositivo o per più di 9 mm dai bordi superiore e inferiore può causare danni permanenti allo schermo.

    This is inaccurate. The Pixel 2 phone’s back comes in two parts: a plastic main section and a glass back upper section. Only the glass section is required to be removed to replace the camera. Once the glass back is removed, the camera can easily be replaced without removing the motherboard, battery, or any other components. What is picture here looks like the original Google Pixel Phone.

    hunter alden -

    Firstly, I disagree with hunter’s comment above - my Pixel 2 looked identical to this when I had it opened up.

    Secondly, the whole thing about 1.5mm at the sides - literally scared the cr*p out of me when I started this as it’s such a tiny margin - but what this doesn’t say is that you can see these limits on your phone - just turn the screen on and it’s where the display ends - the digitiser starts there and is a couple of mm deep - hence the need to be careful. You can also see it (though less obviously) when you have the screen off - the jet black part at the edge is where the adhesive is - just make sure you don’t push in past there. It’s not like you can’t make very gentle contact with the digitiser when clearing the adhesive - I believe it’s just any kind of real pressure which will render the screen useless.

    Dave Watts -

    I think it would be helpful to highlight the adhesive patches around the microphone/speaker areas and that you do need to project your pick in quite a distance to break this adhesive. I think simply creating a highlighted tracing of all of the adhesive areas would be helpful and pretty simple to do. It is shown to some extent, but in my opinion it could be more clear. In all of the prefaced concerns for digging too deep, I spent extra time and effort carefully prying upward and cracked my screen and OLED rendering my phone useless. Eventually I decided to probe more deeply toward the mic/speaker and broke things loose which allowed me to remove the screen easily.

    Matt Escher -

    Yes your right. I didn't e that and I disassembly the scree from it's digitiser layer. If i would know in advanced the adhesive borders it wouldn't happened.

    Ronen Stolarski -

    I took my time but a few times I slipped in more than I wanted. No harm. The bottom is the more tricky. The adhesive around the bottom opening goes right up against the ribbon cable for the screen. I got the edges unglued with alcohol & iOpener. I then gently pried the screen away and reached in with a small brush and more alcohol. I then used a toothpick to break the last pieces of adhesive.

    John Reagan -

    Besides the adhesive at the edges, there are 2 rectangular shaped adhesive patches at the top (around the speaker) and bottom (around the microphone). These are pretty thick, but can be easily chipped away with the pick. You start to see these as you gently lift the screen upwards with the suction cup and peer inside (use a flashlight). I did not need to use a heat gun or blow dryer. Just the pick and some isopropyl alcohol.

    Hasan Akhter -

    Use isopropyl alcohol with a syringe at the top and bottom speaker to weaken the adhesive, gently pull apart (about 2mm) and use a finer piece of plastic (like a milky file plastic sheet) to cut through the adhesive at the speakers, but still do not take the screen off completely yet! After extensively reading about failed attempts to get the screen off (instances where people damaged the OLED underneath) one thing is in common: few devices have little adhesive underneath the ribbon cable as well, which people failed to notice and while separating the screen and in turn, damaged the OLED because of the pull from the ribbon cable. Thanks to having this information beforehand I found the same issue in my phone after I separated the screen (not completely) from the frame, I used a piece of finer sheet of plastic to cut the adhesive holding the ribbon cable. You will have to be extremely patient and take your time.

    A Sid -

    Word of warning - it is incredibly easy to slip and damage the ribbon cable at the back of the screen (where it folds over on the left in the image)! I accidentally did this removing the screen on my phone and it killed the touch functionality.

    Joshua -

    i spent probably 3 hours on this step only last night, incredibly difficult. turned out that the OLED itself was glued to the midframe which made it extra hard (and ended up breaking the screen in the process. I did buy the phone refurbished so I don't think they are all glued this way but it is definitely worth knowing.

    Sally Bascombe -

    Using 91% isopropyl alcohol worked way better than applying heat. Was applying heat for 20 minutes with no luck to get the initial opening. IPA did the job in 2 minutes. I would be cautious with how much alcohol you are dropping. Do not be too generous as some have mentioned and just drop along the edges at incremental distances. The alcohol will dissolve the grey foam in the picture with X marks and flatten it. Not that big of a deal but if you are picky about not damaging anything in the process you should be careful about it.

    Bhavesh P -

  4. EMmUoacoYJBggeoq
    EMmUoacoYJBggeoq
    aNShcRN3lT1gILvU

    • Nei passi successivi, per il taglio usa uno dei tre lati del plettro di apertura, invece di una delle punte, per evitare di andare troppo in profondità.

    • Fai scorrere il plettro di apertura verso l'alto lungo il lato destro del telefono per staccare la colla dello schermo.

    • Fai molta attenzione ai bordi laterali, che sono profondi solo 1,5 mm.

  5. 2ZereWB1RyT1fDqM
    2ZereWB1RyT1fDqM
    QheOxYBPND2qTmEW
    ABqclJOsvBrYbSRi

    • Fai scorrere il plettro di apertura attorno all'angolo superiore destro e lungo il bordo superiore del telefono.

    Leaving one pick inserted at each corner will help prevent it from sticking back.

    A Sid -

  6. CSIHJiCWeWNvyTYT
    CSIHJiCWeWNvyTYT
    6nflAeiavcU2ayr4
    WjQhcowbgPGBLQPx

    • Fai scorrere il plettro attorno all'angolo superiore sinistro del telefono e verso il basso lungo il bordo sinistro.

  7. tO5kFjHUNBjm4AsA
    tO5kFjHUNBjm4AsA
    WJIBfKgTsge5j4Yi
    FSAYTUP5IIkJH4Mo

    • Fai scorrere il plettro attorno all'angolo inferiore sinistro e attorno al bordo più basso del telefono. Tieni lo strumento poco angolato e distante dallo schermo per evitare danni agli angoli dell'OLED.

    • Fai molta attenzione a non inserire lo strumento di apertura per più di 9 mm per evitare danni al pannello OLED.

  8. JqE263rlSCiGMMPx
    JqE263rlSCiGMMPx
    ybiQ4Z6SU44i4TXK

    • Inserisci di nuovo il plettro nel bordo superiore del telefono e fai leva per sollevare delicatamente lo schermo.

    • Se il display non si solleva facilmente, esegui delle ulteriori azioni di distacco per scollare l'adesivo rimasto. La colla vicina all'altoparlante superiore ha uno spessore maggiore rispetto ad altre zone.

    • Non cercare di staccare del tutto lo schermo già in questa fase, perché è ancora connesso alla scheda madre da dei fragili cavi a nastro.

    This for me was by far the hardest step. What this guide fails to say is just how much adhesive you’ll encounter - mine was heaving with the stuff - so I wouldn’t attempt this fix without the rubbing alcohol, and I would be prepared to spend 30 mins on this - the images above make it look like as soon as you can get the pick in and around the whole phone the display will come off - this wasn’t true on mine, and I put a small crack in the top of my screen as I applied a little pressure to lever the top - the edges were ok, but there was so much adhesive at the top and bottom - right down and around the speaker grills - that I used scissors to cut the remaining strands as I managed to lift the screen higher enough! Don’t be shy with the rubbing alcohol, it really helps - and you really need to feel all sides loosen properly before you attempt to lever - but if you’re patient, it’ll be ok.

    Dave Watts -

    agree, way more adhesive at top and bottom than guide implies. go really slow on sides with thin plastic but top and bottom speaker needs a bigger dig

    Erik Sorensen -

  9. AWBi6gyoZBNSFCVg
    AWBi6gyoZBNSFCVg
    2YNgAiW26hAJxtF2

    • Disponi delicatamente lo schermo sopra il case posteriore, come mostrato nell'immagine, evitando di forzare o strappare il cavo a nastro del display.

    • Rimuovi le quattro viti Torx T5 da 4,0 mm che fissano la staffa del cavo del display.

    • Durante questa riparazione, tieni traccia di ogni vite ed assicurati di riavvitarla esattamente dove era.

    I cannot imagine how much easier this project would be if they provided the bit for this screw and the others of the same size. The torx bit included in my kit is a 2mm - entirely useless here. Only other bits are Philips...also pretty useless...

    Jens Davidsen -

  10. HuntXSUMrTQOPvUT

    • Rimuovi la staffa del cavo del display.

  11. htMtx16FFYrRZWZB
    htMtx16FFYrRZWZB
    nbBnajSgXNRgYwgn

    • Usa l'estremità a punta di uno spudger per sollevare il connettore del cavo del display e staccarlo dal suo zoccolo sulla scheda madre.

    • Evita di toccare la scheda madre con la punta dello spudger. Le componenti attorno alla presa sono fragili.

    • Per riattaccare connettori a pressione come questo, allinealo con cura e premi su uno dei lati finché non senti il clic dell'aggancio, quindi ripeti l'operazione dalla parte opposta. Non premere nel centro del connettore: se fosse disallineato i pin si potrebbero piegare e ne risulterebbero danni permanenti.

    • Se una parte qualsiasi del tuo schermo non risponde al tocco dopo la riparazione, infila di nuovo questo connettore, accertandoti che si agganci completamente nella sua posizione e che nello zoccolo non ci siano polvere o altro materiale indesiderato.

    • In fase di rimontaggio, fermati qui per sostituire l'adesivo attorno ai bordi del display.

    Wow, I think I damaged my motherboard on this step. It would be helpful if there was a warning in this step to avoid doing that! Now my pixel 2 is reduced to a cool paperweight with a static display.

    Zach Laporte -

    Yep, there’s a small surface mounted component below the connector that is super easy to dislodge from the circuit board. Shown in this YouTube video - https://www.youtube.com/watch?v=0BEpgqpI.... Unfortunately, the part is smaller than a grain of sand, so not really practical for the average fixer to put back on the board.

    jlyonsmith -

    I also knocked the tiny chip off of the board while removing the ribbon cable in this step. Use the spudger exactly how it’s shown in the photos.

    John Ware -

    A spudger is the wrong tool to remove the video connector. You cannot see where you are poking with that tool and I wound up dislodging one of the surface mounted devices hidden by the connector and ruining the phone. I also broke a ground path near the corner of the middle frame that is not mentioned in this repair procedure. Watch this YouTube before you begin disassembly: https://www.youtube.com/watch?v=yKULr67Z...

    jamesdrobinson -

    None of the tools provided in the repair kit seemed slim enough to fit the space required to pry this up. I ended up using a thin / flimsy plastic health care card to get under and pry up. It popped up with enough pressure.

    Arthur Kay -

  12. IqnjxPkUZpfKRIZt
    IqnjxPkUZpfKRIZt
    ZViI262FF1N4t6RN

    • Se il tuo display di ricambio non è dotato di griglie degli altoparlanti installate o del supporto della fotocamera anteriore, rimuovi con attenzione queste parti dal tuo vecchio schermo. Segui la parte restante della guida per installarle sul display nuovo.

    • Per rimuovere il supporto della fotocamera, applica del calore e poi usa una sottile lama metallica per far leva e staccare la staffa dal vecchio schermo.

    • La griglia dell'altoparlante è composta da due strati: la griglia metallica e una parte sottostante di sottile tessuto spugnoso. Usa delle pinzette per staccare in un blocco solo i due strati dal vecchio schermo. Fai del tuo meglio per non separarli durante l'operazione.

    • Prima di applicare l'adesivo dello schermo, ricordati di installare le griglie e la guarnizione.

    • Taglia due angoli di un foglio adesivo pretagliato in modo che ognuno dei lati sia lungo meno di 12 mm, oppure taglia quattro strisce di biadesivo da 12 mm.

    • Le strisce adesive dovrebbero essere larghe al massimo 1 mm.

    • Applica le strisce adesive ai bordi della faccia piatta della staffa della fotocamera anteriore. Alla fine, dovrebbe esserci dell'adesivo su tutti i quattro bordi del supporto della fotocamera.

    • Premi delicatamente l'adesivo nella sua posizione con un dito o uno spudger.

  13. 4VymQDCpFCGlhslL
    4VymQDCpFCGlhslL
    EdeG4gPKiQ5JiYsY

    • Disponi la staffa della fotocamera nel suo alloggiamento attorno alla fotocamera anteriore.

    • Accertati che l'angolo arrotondato della staffa sia vicino all'angolo superiore sinistro del telefono. Se il supporto non si dispone a filo della fotocamera, significa che è posizionato in modo errato.

    • Stacca la protezione delle strisce adesive.

    As mentioned elsewhere, directly underneath the camera there is a tiny patch of conductive metal-mesh tape - not shown in this picture. It seems to connect the midframe to some other part. It might not be essential? I accidentally loosened it, and use two strips of adhesive tape on top of it, slightly overlapping, to bring it back to its place.

    arne -

  14. 1YKieaJ2DokwQ6OO

    • Usa il dito o l'estremità piatta di uno spudger per ricollegare il connettore del cavo del display del nuovo schermo.

    • Per riattaccare connettori a pressione come questo, allineali con cura in posizione e premili a una estremità finché non senti lo scatto del bloccaggio, quindi ripeti l'operazione dall'altro lato. Non premere in centro perché, se il connettore non è ben allineato, potresti causare danni permanenti.

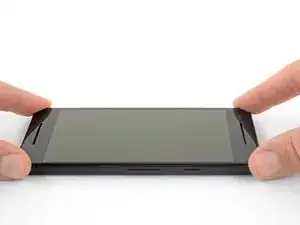

  15. IN514G6DbxFqMXIl
    IN514G6DbxFqMXIl
    mOA3NCgaiN3uqYfU

    • Nel corso di questo passo, this foray temporaneamente il nuovo schermo per allinearlo correttamente con la staffa della fotocamera anteriore mentre fai aderire la staffa stessa allo schermo.

    • Prima di iniziare questo passo, accertati che non ci sia più alcuna traccia del vecchio adesivo. Non è ancora il momento di richiudere il telefono.

    • Allinea con molta cura il bordo inferiore del tuo nuovo schermo con il bordo inferiore della scocca del telefono.

    • Disponi il bordo inferiore dello schermo nella scocca e, usando il bordo come cerniera, abbassa la parte restante del telefono verificando che sia allineata con il case.

    • Cala lo schermo sulla scocca e premi in corrispondenza del foro della fotocamera anteriore per essere sicuro che il supporto della fotocamera aderisca allo schermo.

    • Alza di nuovo lo schermo e toglilo dalla scocca, controllando che la staffa della fotocamera si sia incollata bene al gruppo display.

    • Disconnetti il cavo del display.

  16. dnF5tfYXpbQBC4T2
    dnF5tfYXpbQBC4T2
    LMpWKB4sPjnMsfOc
    e3OJgsh2Oy2NLUIX

    • Taglia una striscia di biadesivo larga 1 mm e lunga 30 mm.

    • Disponi la striscia adesiva sul nuovo display sotto il bordo superiore della cavità dell'altoparlante voce in modo che sia centrato trasversalmente rispetto alla fessura e che ne sfiori il bordo superiore.

    • La striscia adesiva deve essere disposta il più vicino possibile al bordo della fessura ma senza coprirla in alcun modo.

    • Premi in posizione la striscia adesiva sul display con un dito o uno spudger.

    • Ripeti questo passo per applicare una seconda identica striscia adesiva lungo il bordo inferiore della fessura dell'altoparlante.

    • Stacca il rivestimento protettivo da entrambe le strisce adesive.

  17. SgMqRqhpiCwYKECb

    • Appoggia, senza premerla, la griglia dell'altoparlante nella sua fessura, in modo che la parte curva sia in corrispondenza della fessura e il lato piatto verso l'esterno dello schermo.

    • Prima di premere la griglia sull'adesivo, accertati che sia centrata e disposta correttamente nella cavità.

  18. GiBgINAdqqUrFnKf

    • Usa l'estremità piatta di uno spudger o il dito per premere i bordi della griglia dell'altoparlante sulle strisce adesive.

    • Ripeti i due passi precedenti per installare la griglia dell'altoparlante inferiore.

Conclusione

Confronta il pezzo sostituito con quello originale, potresti dover trasferire componenti rimasti sulla vecchia parte o rimuovere adesivi sul retro del componente nuovo prima di installarlo.

Per rimontare il dispositivo, segui queste istruzioni in ordine inverso.

Porta i tuoi rifiuti elettronici a un riciclatore certificato R2 o e-Stewards.

La riparazione non è andata secondo i piani? Vai sulla nostra comunità Risposte per trovare aiuto nella risoluzione dei problemi.

Autore

Adam O'Camb

Membro da: 11/04/15

195052 Reputazione

19 commenti

I removed my screen to change the battery but unfortunately I wasn’t careful enough and nicked the display on one of the corners resulting in a dead screen now.

I can replace the screen np, but I was wondering, I should be able to still connect my phone to my PC to check it is still working right? Because I have it connected now but there seems to be no power at all and my phone isn’t connecting to my PC to do a full backup. I have double checked all connections and held the power button in to try start it up or will it not start up if the screen is broken?

Leon Cope -

Have you gotten any further? I was doing a battery replacement and while removing the screen it cracked. Since I didn’t have a spare screen, I reassembled the phone with the cracked screen and saw some flashes of light but was dark. Upon attaching a replacement screen I get nothing on screen but can feel the vibration of the phone restarting. Tried a second replacement screen but no different.

Erik Karlin -

I needed to back up my files and pictures from my Pixel 2 to my PC with a dead screen just yesterday. I used the “squeeze” feature and asked the Google assistant to “turn on talkback.” This allows you to blindly navigate the screen (providing the touch functions still work). You can then use this feature combined with the Google assistant and fingerprint reader to open the navigation bar and change the PC connection from “charge only” to PTP. This will allow you to transfer your files. Hope this helps.

Sarah J. -

I recommend using a playing card instead of the plastic guitar pick to cut the adhesive once you get the side pried up a bit. It took just a moment for my hand to slip and the pick went too far in and chipped the corner of the OLED display. I also was trying to avoid using heat, but using even just a little of the low setting on my Harbor Freight heat gun really helped soften the adhesive up.

Chase Nachtmann -

This sounds like a great idea! I just put a pack of old playing cards in my repair kit. I destroyed my OLED display with a pick too. Hopefully next time I remember to use the playing cards and don’t mess this up.

Gabriel Staples -

I have replaced my screen with a new one but now the touch screen function doesn’t work. I can view the screen just can’t tap or select anything. does anyone have any advice? I have already detached and reattached the display cable connector but I’m still having the same issue.

Edward Aboagye -

I’m having the same issue. Did you find a fix?

Ryan Moeggenberg -

Try doing a hard reset. On my screen once I reset it the touch started to work.

Drew Busmire -

I replaced both front and back screens and the rear lens cover on my Pixel 2.

Pretty easy going once the glass is removed.

I highly suggest buying the repair kit and not using a guitar pick unless you’re at least a semi-pro at this. Guitar picks come in an array of different thicknesses and some edges are quite sharp .

Thanks !

Genevieve Hewitt -

Any hints for applying the tesa tape around the edge of the phone without any folds? This seems like you only get one shot at it. How hard do you have to press the screen in place, assuming that’s the last step? Does it click/snap into place? It seems like there are some steps that are implied after Step 18, would be nice to know what those are.

Douglas Leenhouts -

No click or snap. The screen should just fit in perfectly, resting on the adhesive. It’s hard to not get any folds in the adhesive, I failed at this. In the end, I used a razor to cut out the folds and made all the adhesive flat again.

Alex Lawson -

My replacement screen came with a blue plastic on the back, which I removed. However, there was also a black sticker underneath that, which really wanted to come off with the blue piece. I couldn’t tell if the black film/sticker should stay on or if it should be removed. The original didn’t seem to have that, but there were other non-insignificant differences between the two which made me not really trust that comparison as an indication of what I should do.

I left it on in the end, but the screen doesn’t really want to sit down flush. I’m wondering if this thin film is part of the problem since every tenth of a millimeter matters with these things.

Raquel Smith -

I needed to remove my screen to replace the camera module (Common Pixel 2 camera problem which was solved by replacing the camera module) and I did not heed the caution warnings as well as I thought I did. BE VERY CAREFUL. These screens are damaged very very easier. Do not stick the pick in too far. Perhaps use playing cards as some youtube videos show. I know it’s a pain but USE A HAIRDRYER or other heat source, it softens the screen and speaker adehsive and makes things much easier and safer. Also, watch some youtube teardown videos. The proper tools from iFixit will help you a bunch. Don’t skimp on the tools like I did the first time around (regrets). All in all this job isn’t that hard. You just need to take your time and get it right.

Alex Lawson -

I totally agree! Destroyed my OLED screen 10 minutes into the repair as I tried to remove the screen so I could replace the battery. I have now bought ~$100 of tools from iFixit (got them on Amazon for faster shipping) and hope to get this right. The iOpener heating tool looks REALLY useful!—much better than a heat gun, as it uses conduction instead of convection, and can target just where you want to apply the heat!

Gabriel Staples -

Question.

Ordered a full kit, screen and OLED display. Removed the old screen and oled easy. Plugged my new oled panel in and its just pixelated, like old CRTV’s. Is the screen dead on arrival? I was very careful placing the new oled panel in the phone, careful to align the pins on the connecter and it went in very easy. Should I contact ifixit for another oled panel?

Christopher Carson -

Same thing that happened to Christopher Carson happened to me. New OLED display is pixelated. I’ve worked with these delicate connectors in the past and I was very careful (e.g. discharged static). Appears to be damaged in some way. Not sure I would recommend this repair on such an old device at this time. Not worth the gamble.

ndipatri -

FYI: I have a Google Pixel 2... not 2XL...

Does the phone have be powered off before removing the digitizer screen? Its not mentioned in this article...


Will the phone be damaged if the power is still on when disconnecting the broken screen?

Alex -

Same issue as Christopher Carson and ndipatri - Anyone have a sense if this is an OLED failure or the the connector has been damaged?

Daniel Sweeney -

Photo showing screen after replacement: https://drive.google.com/file/d/1O80ZVxY...

Daniel Sweeney -
