Introduzione
Usa questa guida per ridare vita con una nuova batteria al tuo iPhone 7 Plus con una nuova batteria. Se la tua batteria è gonfia, prendi adeguate precauzioni.
Questa guida ti spiega come rimuovere il gruppo display, allo scopo di prevenire danni ai cavi del display. Se ti senti sicuro della tua capacità di rimuovere la batteria senza sforzare i cavi del display, puoi saltare i passi relativi alla rimozione del display.
Per prestazioni ottimali dopo aver eseguito la procedura, calibra la tua batteria appena installata: caricala al 100% e poi mantienila sotto carica per almeno altre due ore. Quindi usa il telefono finché non si spegne a causa della batteria esaurita. Per finire, carica la batteria ininterrottamente fino al 100%.
Strumenti
Ricambi
-
-
Spegni il tuo iPhone prima di iniziare lo smontaggio.
-

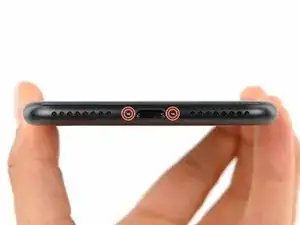

Rimuovi le due viti pentalobe da 3,4 mm sul lato inferiore dell'iPhone.
-
-
-
I prossimi tre passaggi ti spiegherano come utilizzare l'Anti-Clamp, uno strumento che abbiamo studiato per rendere la procedura di apertura più facile. Se non stai usando l'Anti-Clamp, salta questi tre passaggi e continua con un metodo alternativo.
-

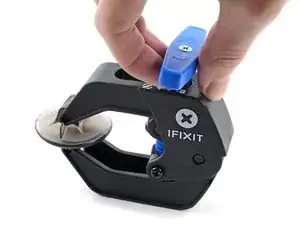

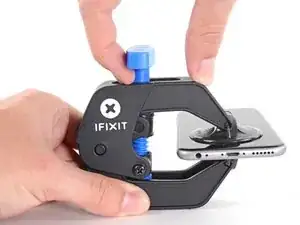

Tira la manopola blu verso la cerniera per disattivare la modalità di apertura.
-

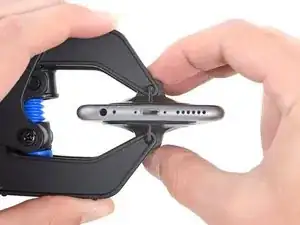

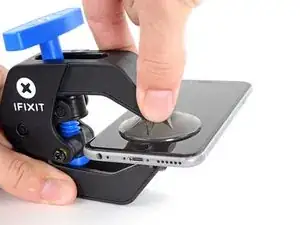

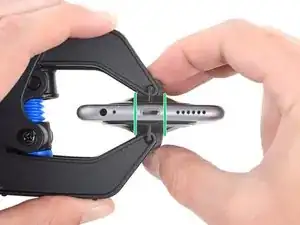

Posiziona la ventosa vicino al bordo inferiore dello schermo: una davanti e una dietro.
-
Spingi sulle ventose in modo tale che possano fare presa sull'area desiderata.
-
-
-
Tira la manopola blu in avanti per bloccare i bracci.
-

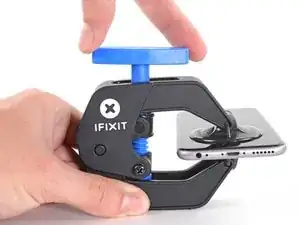

Gira la manopola in senso orario di 360 gradi o fino a quando le ventose iniziano ad allungarsi.
-
Assicurati che le ventose siano allineate fra loro. Se dovessero iniziare a scivolare, allenta leggermente le ventose e riallinea i braccetti.
-
-
-

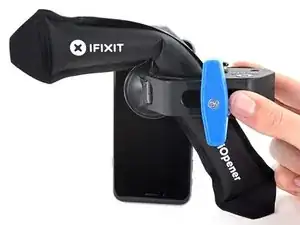

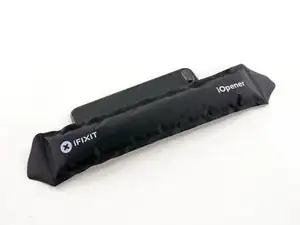

Scalda un iOpener e infilalo tra i bracci dell'Anti-Clamp.
-

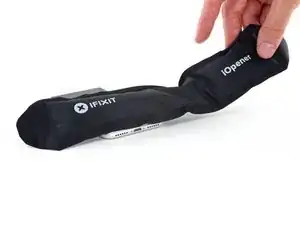

Piega l'iOpener in modo che poggi sul bordo inferiore dell'iPhone.
-
Attendi un minuto per dare all'adesivo una possibilità di staccarsi e formare una fessura di apertura.
-

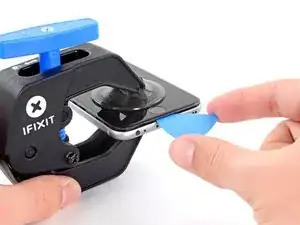

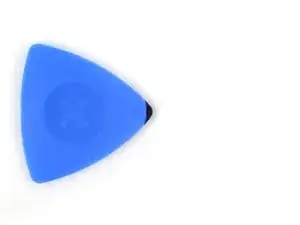

Inserisci il plettro di apertura nella fessura.
-
Salta i tre passaggi successivi.
-
-
-
Il riscaldamento del bordo inferiore dell'iPhone aiuta ad ammorbidire l'adesivo che blocca il display, semplificando l'apertura.
-
Usa un asciugacapelli oppure prepara un iOpener e applicalo per circa 90 secondi al bordo inferiore dell'iPhone per ammorbidire l'adesivo sottostante.
-
-
-

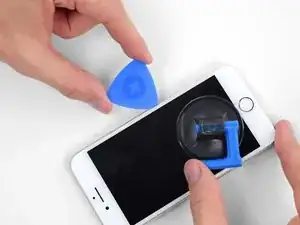

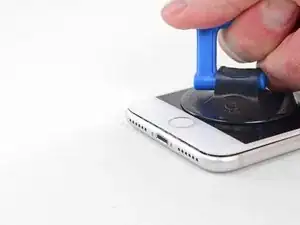

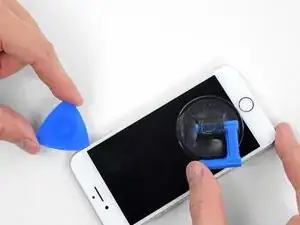

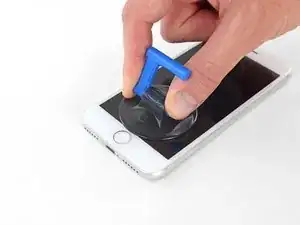

Applica una ventosa nella metà inferiore del pannello frontale, appena sopra il pulsante home.
-
-
-

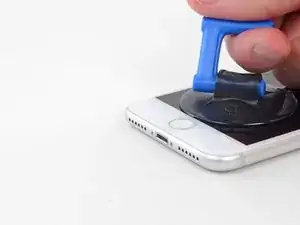

Tira la ventosa applicando una tensione forte e costante fino a creare una piccola fessura tra il gruppo dello schermo e la scocca.
-

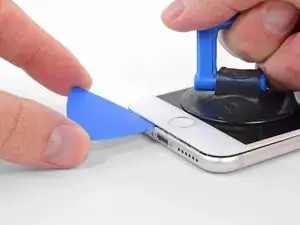

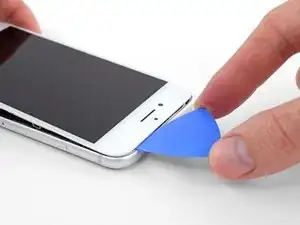

Inserisci nella fessura un plettro di apertura.
-
-
-

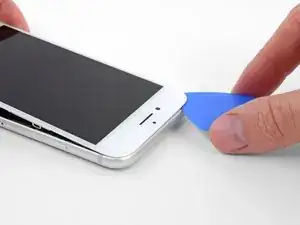

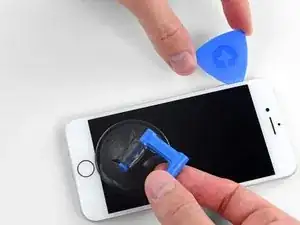

Fai scorrere il tuo attrezzo lungo il bordo sinistro del telefono, spostandoti verso i pulsanti del controllo volume e l'interruttore della modalità silenziosa, per rompere l'adesivo che tiene in posizione il display.
-
Fermati vicino all'angolo superiore sinistro del display.
-
-
-

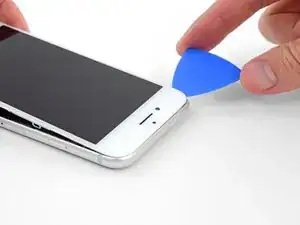

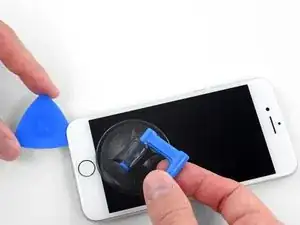

Inserisci nuovamente il tuo attrezzo nell'angolo inferiore destro dell'iPhone e fallo scorrere attorno all'angolo e lungo il lato destro del telefono per separare l'adesivo.
-
-
-

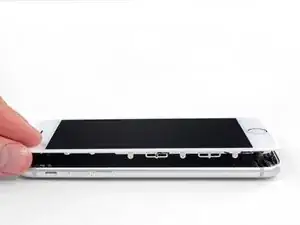

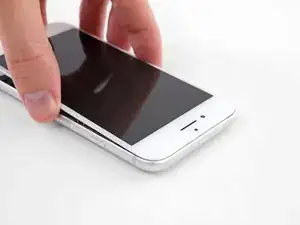

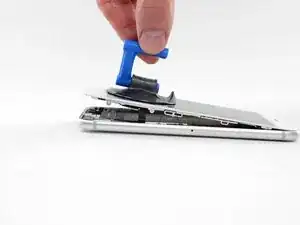

Tira dolcemente la ventosa per sollevare il lato inferiore del display.
-

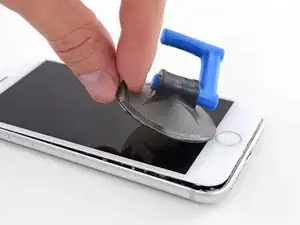

Tira la linguetta per staccare la ventosa dal pannello anteriore.
-
-
-

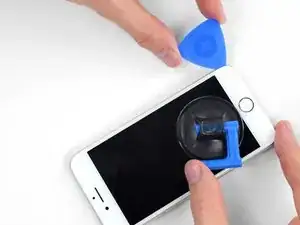

Fai scorrere uno strumento di apertura sotto il display attorno all'angolo superiore sinistro e lungo il bordo superiore del telefono per allentare l'adesivo rimasto.
-
-
-

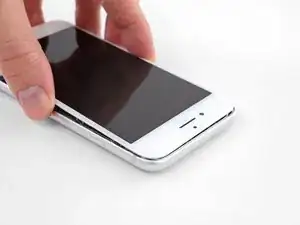

Fai scorrere lievemente il gruppo display verso il basso (allontanandolo dal bordo superiore del telefono) per liberarlo dalle clip che lo collegano al case posteriore.
-
-
-

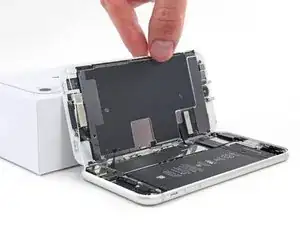

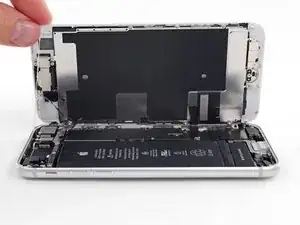

Apri l'iPhone sollevando il display dal lato sinistro, come per sollevare la copertina posteriore di un libro.
-
Appoggia il display contro qualche tipo di supporto per mantenerlo aperto mentre lavori sul telefono.
-
-
-

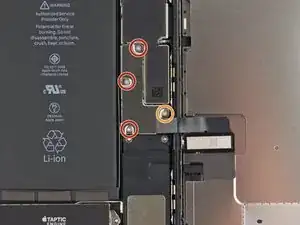

Rimuovi le seguenti quattro viti tri-wing Y000 che fissano la staffa inferiore del cavo del display alla scheda logica:
-
Tre viti da 1,2 mm
-
Una vite da 2,6 mm
-
-
-

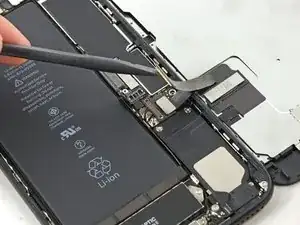

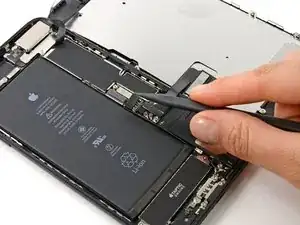

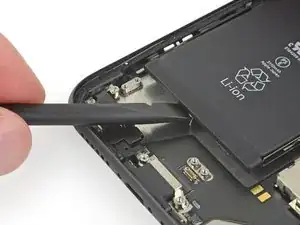

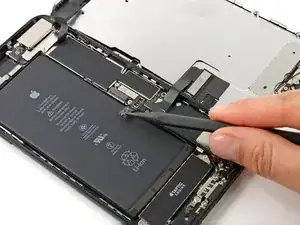

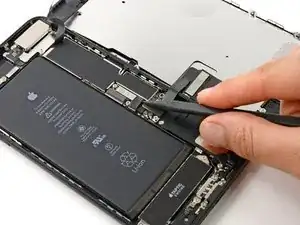

Usa l'estremità a punta di uno spudger per sollevare il connettore della batteria dal suo zoccolino sulla scheda logica.
-
-
-

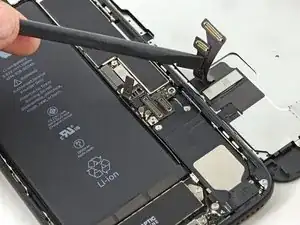

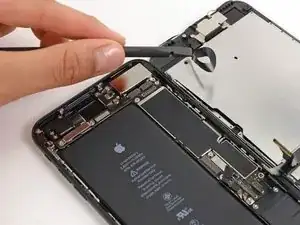

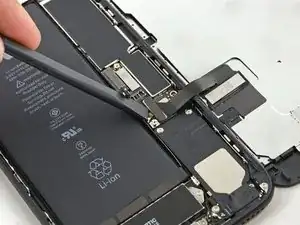

Usa l'estremità piatta di uno spudger oppure un'unghia per disconnettere i due connettori inferiori del display sollevandoli verso l'alto dai loro zoccolini sulla scheda logica.
-
-
-

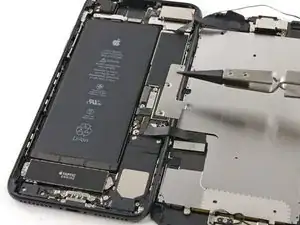

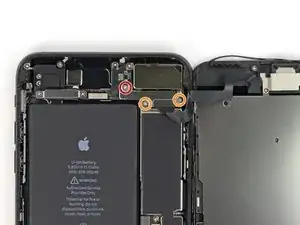

Rimuovi le tre viti tri-wing Y000 che fissano la staffa sopra il connettore del gruppo sensore del pannello anteriore:
-
Una vite da 1,3 mm
-
Due viti da 1,0 mm
-

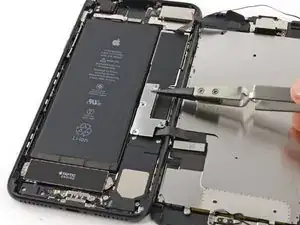

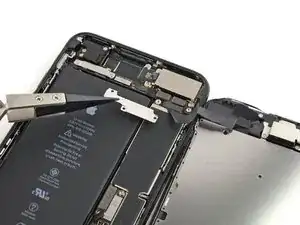

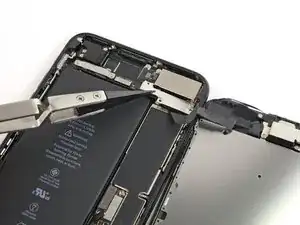

Rimuovi la staffa.
-
-
-

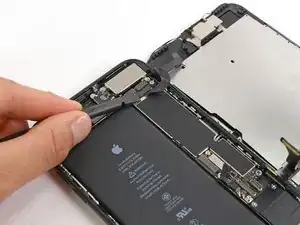

Disconnetti il connettore del gruppo sensore del pannello anteriore dal suo zoccolino sulla scheda logica.
-
-
-

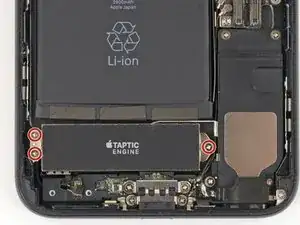

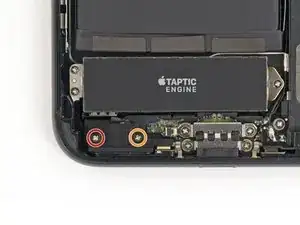

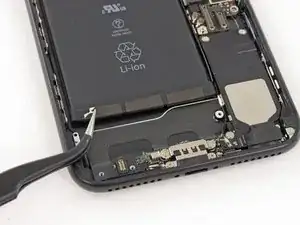

Rimuovi le seguenti due viti Phillips che fissano lo sfiato barometrico al case posteriore:
-
Una vite da 2,9 mm
-
Una vite da 2,1 mm
-
-
-

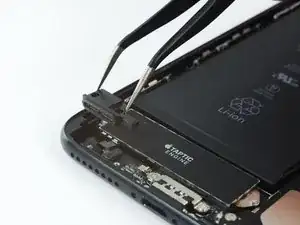

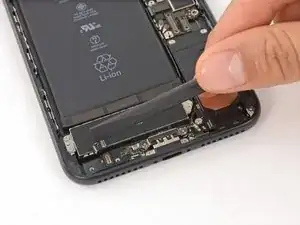

Spingere delicatamente lo sfiato barometrico in direzione del Taptic Engine in modo da separare l'adesivo che lo fissa al bordo inferiore dell'iPhone.
-
-
-

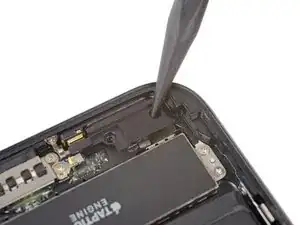

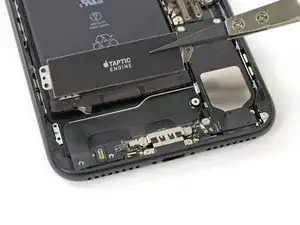

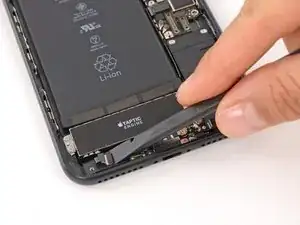

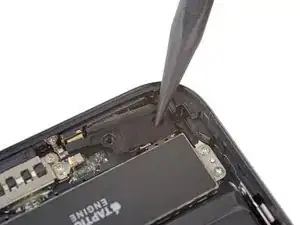

Usa l'estremità piatta di uno spudger per disconnettere il connettore del Taptic Engine dal suo zoccolino sulla scheda logica.
-
-
-

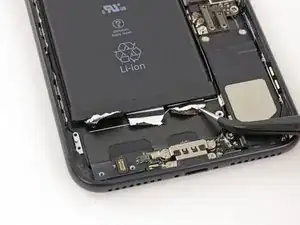

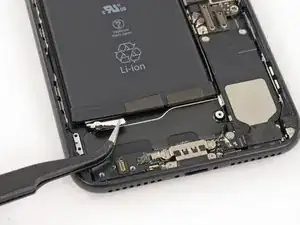

Stacca le tre strisce adesive sul lato inferiore della batteria e orientale in direzione opposta.
-
-
-

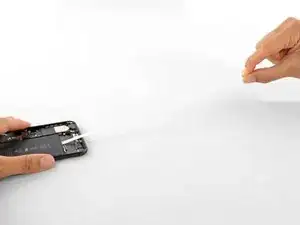

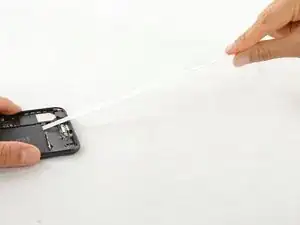

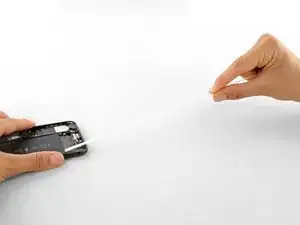

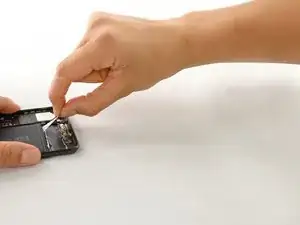

Tira lentamente una striscia adesiva della batteria verso il lato inferiore dell'iPhone.
-

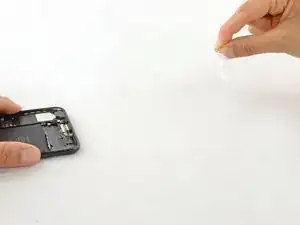

Tira senza pause, mantenendo una tensione costante sulla striscia finché questa viene fuori da sotto la batteria e il case posteriore. Per risultati ottimali, tira la striscia a un angolo inferiore a 60°.
-
-
-
Ripeti il passo precedente per la seconda e terza striscia.
-
Se hai rimosso con successo tutte le strisce adesive, salta il prossimo passo.
-
Altrimenti, se una delle strisce adesive si è rotta sotto la batteria e non può essere recuperata, continua con il prossimo passo.
-
-
-

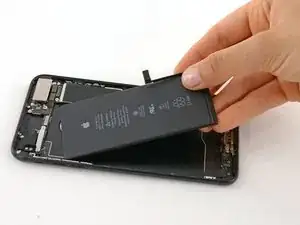

Rimuovi la batteria.
-
Incolla la batteria, scollegala dalla scheda e procedi con il riassemblaggio.
-
Confronta la tua nuova parte con quella da sostituire: prima dell'installazione potrebbe essere necessario trasferire eventuali componenti rimaste o rimuovere protezioni adesive dalla nuova batteria.
Per rimontare il tuo dispositivo, segui queste istruzioni in ordine inverso.
Porta i tuoi rifiuti elettronici a un riciclatore certificato R2 o e-Stewards.
La riparazione non è andata come previsto? Prova con qualche soluzione di base ai problemi dopo una riparazione o cerca sulla nostra comunità Risposte per trovare aiuto.
