Sostituzione schermo Google Pixel 3a

Scritto Da: Arthur Shi
  • Commenti: 92
Sostituzione schermo Google Pixel 3a

Difficoltà

Moderato

Passi

13

Tempo Necessario

30 minuti - 2 ore

Introduzione

Questa guida di riparazione è stata redatta dallo staff di iFixit ma non è stata approvata da Google. Leggi di più sulle nostre guide di riparazione qui.

Il tuo Pixel ha lo schermo crepato o rotto? Segui questa guida per sostituirlo!

Il pannello dello schermo del Pixel 3a, privo di rinforzi, è fragile. Se devi riutilizzare il display, presta una particolare attenzione agli avvisi relativi alla procedura di apertura.

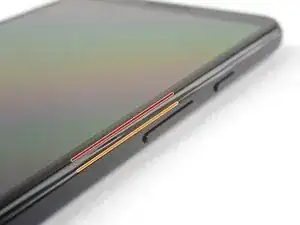

  1. UYLZJkTCPKIULQqg
    UYLZJkTCPKIULQqg

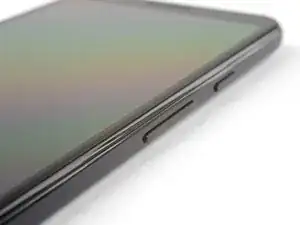

    sLKr2jdAKWhyf1lS
    rqLvMH3flk6RFDWV

    • Fai caso alle due fessure di giunzione attorno al perimetro del telefono:

    • Giunzione dello schermo: questa fessura separa il display del resto del telefono. E' qui che dovrai agire.

    • Giunzione della scocca: qui la scocca di plastica si unisce alla cover posteriore. È tenuta in posizione da viti. Non agire su questa giunzione.

    • Prima di iniziare a infilare gli attrezzi nella fessura, prendi nota delle seguenti aree sullo schermo:

    • Cavo flessibile dello schermo: in questo punto, non entrare a una profondità maggiore di quanto indicato per non danneggiare il cavo stesso.

    • Perimetro dell'adesivo: infilare il plettro senza angolarlo oltre questo stretto perimetro significa danneggiare il display.

    Power is off, but does the battery need to be disconnect to safely do this replacement?

    mplishka -

    Da ich keinen iopener ( dachte das wäre alles dabei wie auf der bstellvorschau!!!) habe ich eine Wärmflasche auf das Handy gelegt ..behutsam und nicht zu heiß. Besonders an Kopf und fußende war das Display ziemlich fest...befolgt man die Anweisungen genau ist es eigentlich kein Problem das Display vom Rahmen zu lösen, jedoch bin ich der Meinung, dass hier schon ein gewisses Maß an motorischer Vertrautheit mit der Materie bestehen sollte, da wie gesagt oben und unten doch ein tieferes eingreifen in den Rahmen unter das Display nötig ist...

    Ralph S. aus Neumünster

    Ralph S -

    You definitely want to use the iOpener on all sides as you make your way around the screen. The adhesive on my device was quite strong!

    My screen was cracked in the corner and it was a real pain in the neck to get the little bits and pieces out of the corner. I don't know if this step is easier with an intact screen, but it was definitely the most difficult step on the repair for me.

    Simon Stone -

  2. kOMOAsYMaVlLnIYw

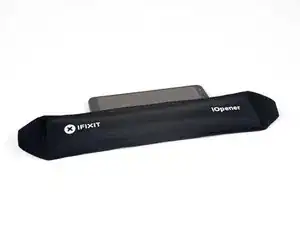

    • Scalda un iOpener e applicalo sul bordo destro del display per un minuto.

    • Puoi anche saltare questo passo, se vuoi, perché l'adesivo dello schermo del Pixel 3a non è molto tenace. Il riscaldamento, però, riduce il rischio di rompere lo schermo.

    I used a washcloth soaked with hot water and sealed in a plastic bag instead of the iOpener for this step, and it worked great.

    E. Dunham -

    My screen was cracked diagonally. Heating with iOpener helped at the top and bottom edges to weaken the adhesive.

    Károly Varga -

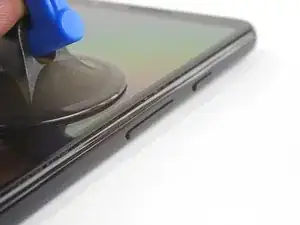

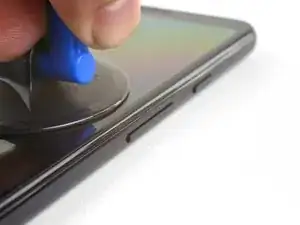

  3. i1VAm1KlVh2tBbff
    i1VAm1KlVh2tBbff
    Mq3cR1WegRxaZItu
    UQV6s6vJigNk1VVT

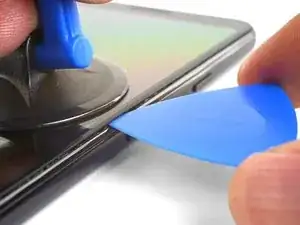

    • Disponi una ventosa vicino al bordo destro dello schermo.

    • Tira la ventosa con forza abbastanza elevata e costante.

    • Inserisci un plettro di apertura nella fessura per non più di 1 mm.

  4. nT1rWFhmDPUKyTnu
    nT1rWFhmDPUKyTnu
    pKRFx5PKkAHK3DIU

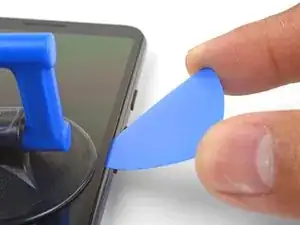

    mppctEFPhMHpfsaI

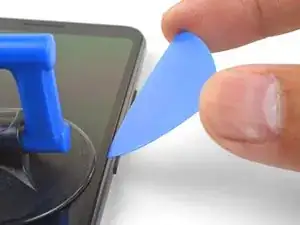

    • Questo passo mostra come inserire il plettro senza danneggiare il pannello OLED. Seguilo prima di tagliare la colla dei lati lunghi del telefono.

    • Con il plettro infilato a una profondità di 1 mm, ruota l'attrezzo verso l'alto facendogli raggiungere un angolo elevato.

    • Mantenendo questo angolo, spingi delicatamente il plettro nella fessura per circa 6 mm. Il plettro dovrebbe infilarsi al di sotto del pannello OLED.

    • Fermati se senti che la punta del plettro trova un ostacolo. Il plettro potrebbe essere finito contro il bordo del pannello OLED. Angola di nuovo il plettro e prova di nuovo.

    If you don’t have picks, you can also use the corner of an old gift card, though it may be necessary to shave it a bit thinner with a knife so it fits the gap better.

    E. Dunham -

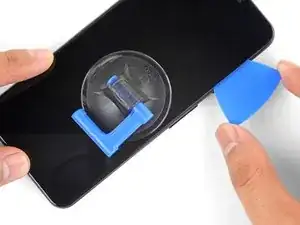

  5. WoQdhZ5ekrhLtqRY
    WoQdhZ5ekrhLtqRY

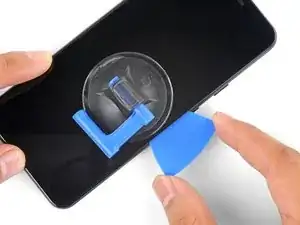

    W11csdZiT2jUR2UJ
    ZXKPkOXWYIngKQga

    • Fai scorrere il plettro lungo il bordo destro, tagliando l'adesivo.

    • Non inserire il plettro per più di 6 mm per non danneggiare il cavo flessibile dello schermo.

    • Lascia il plettro in posizione per impedire che la colla possa attaccarsi di nuovo.

    Don’t make my mistake and read ahead. 6mm may be too close for comfort! 8mm is definitely too far and caused me to damage. Also be sure to read the right manual! I have an XL and it notes 5mm.

    Miguel Higgins-Moy -

    Fortunately my old screen was beyond repair, But be super careful around the bottom I managed to sever the ribbon cable to the digitizer.

    Stephen Hammons -

    I broke my screen here. The adhesive in my case was quite strong on the top and bottom.

    Mario Flores -

    This is by far the hardest part of the entire replacement. I ruined my screen doing this, you might as well buy a new screen at the same time as you buy your battery. I just barely rubbed the edges of my screen and it turned the edge of my screen purple. This eventually migrated to the entire screen causing the whole thing to be purple/black.

    Ross Lancaster -

    Hard to not make a mistake here. It's more like 1/8". It's difficult to keep the pick at a steep angle at all times on left and right sides.

    Won Choi -

    I've repaired many iPhones, and never had any issues. The screens always remained intact. But with the Pixel, I completely destroyed the screen. The only thing it showed after booting up was a purple line... The adhesive is very strong and it's nearly impossible to separate the screen without damaging it. You should order a new screen before you attempt to change the battery, just in case.

    Philipp -

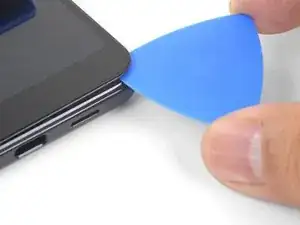

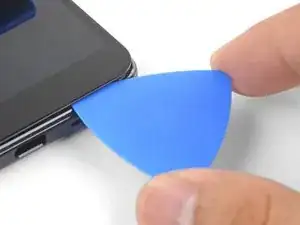

  6. RrOoEGutj3bVnmxB
    RrOoEGutj3bVnmxB
    26JTeECcBV4a1D3h

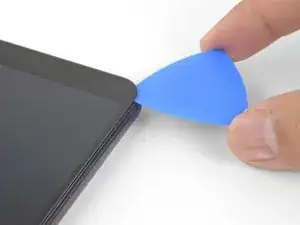

    eER1QHa3BSo3E4gj

    • Mentre tagli la colla attorno al bordo inferiore del telefono, non inserire il plettro per oltre 6 mm.

    • Fai scorrere il plettro attorno all'angolo inferiore destro per tagliare tutto l'adesivo.

    • Se nell'angolo rilevi una resistenza al taglio, applica nella zona un iOpener riscaldato per un minuto e quindi prova di nuovo.

    • Continua a tagliare lungo il bordo inferiore del telefono e attorno all'angolo sinistro.

    Heating bottom of the screen and going very slowly is key here. The adhesive was stronger than expected, and I cracked the glass while going around this first corner.

    Jerome C -

    My screen was already cracked diagonally, so going around the corners was especially hard. Starting from each side was not so risky as I first thought because side adhesive is really thin. However top and bottom needed some more lifting force from the pick. More heating helped at the top and bottom edges.

    Károly Varga -

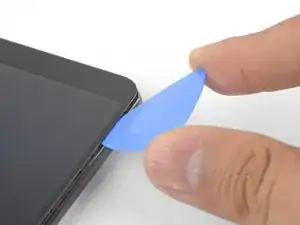

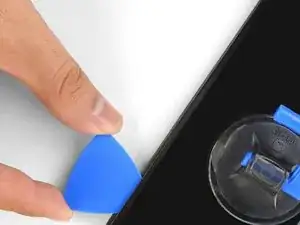

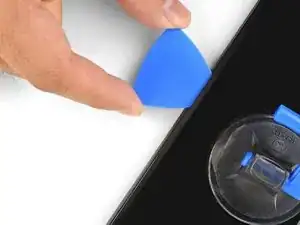

  7. NPKYImIn6ahmqWff
    NPKYImIn6ahmqWff
    3LQTJQOCtclJoMOP
    Iun2OAM2kt2jqsFa

    • Taglia attraverso tutto il lato sinistro del telefono, ricordandoti di angolare correttamente il plettro perché passi sotto il pannello OLED e di non inserire la punta più di 6 mm.

    • Per angolare il plettro in modo che passi sotto il pannello OLED, inserisci la punta per meno di 1 mm, angola verso l'alto lo strumento e poi spingilo dentro per 6 mm.

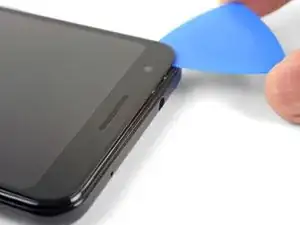

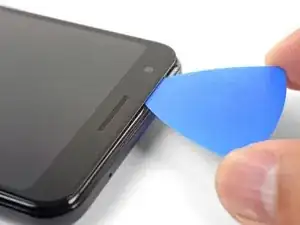

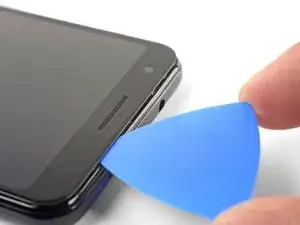

  8. OdHxSWOTKxjIRZTo
    OdHxSWOTKxjIRZTo
    JVOygjVn1eFAL2mI
    VSOfpVBWHKuTF2AV

    • Taglia lungo il bordo superiore mentre mantieni inserito il plettro a una profondità inferiore a 8 mm.

    There is a LOT more adhesive at the top than anywhere else on the phone! It’s like there’s 2 lines of adhesive, one along the edge of the case and one along the edge of the screen, and it’s filled in between them wherever the speaker camera aren’t. I needed to heat and pry several times to get the top loose. Fortunately, there’s little risk of hitting a cable near the top (look ahead to the step where you lift the screen off to see where all the cables go!)

    E. Dunham -

    I found that applying the iOpener across the top edge of the glass for about 30 seconds at this step helped soften the adhesive significantly. My front camera was replaced only a few months ago by uBreakiFix and the display adhesive subsequently let go on the entire right edge, bottom, and part of the left side shortly after the new front camera failed. Only the top was still securely stuck.

    Reid Solberg -

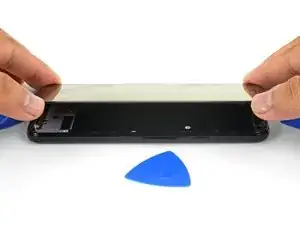

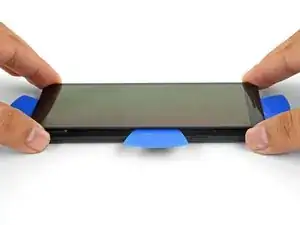

  9. XTsNwEiy5QswHVMb
    XTsNwEiy5QswHVMb
    RdpgIiTntnUQteQW

    • Una volta che hai tagliato lungo tutti i bordi, apri delicatamente lo schermo a libro, sollevandolo dal bordo destro.

    • Non rimuovere lo schermo. È ancora collegato al telefono da un cavo flessibile vicino al bordo sinistro.

    • Usa un plettro di apertura per tagliare, prestando molta attenzione, tutto l'adesivo rimasto.

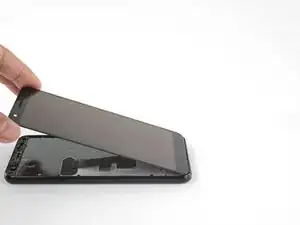

  10. 1TCaAfShYJjQxYYd
    1TCaAfShYJjQxYYd
    bJQqUYJcpfnCJZCN
    cc3XMNsGRmuCcRPZ

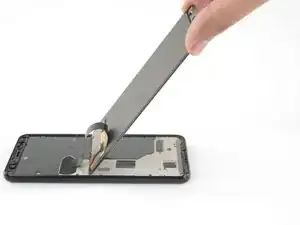

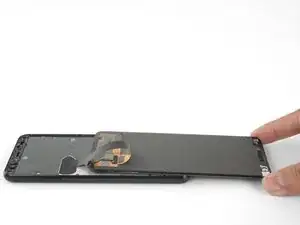

    • Una volta staccato tutto l'adesivo, ribalta lo schermo, sempre collegato dal cavo, portandolo sopra il telefono con il vetro rivolto verso il basso. Il cavo flessibile del display deve rimanere con una curvatura piuttosto ampia.

    Hi, could you help me with one clarification?

    What does the small “metal patch” in the middle of the display ribbon do?

    Does it prevent the phone from starting while disconnected?

    Thank you for your time!

    oliver schirmer -

    Hi Oliver,

    I think the patch you’re referring to helps with either EM shielding or heat dissipation. It should not prevent the phone from starting.

    Arthur Shi -

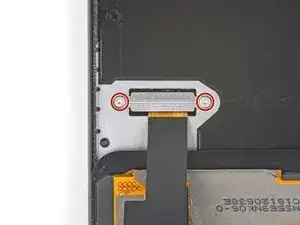

  11. tHK6Pmg16eiUvJgL
    tHK6Pmg16eiUvJgL
    tnkCikUCkDWAfKlu
    v5vVIOJkOgNtIZ2m

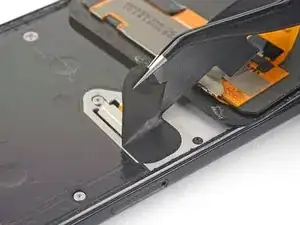

    • Stacca con delicatezza il nastro nero che copre la staffa del connettore dello schermo.

    • Se è ancora in buone condizioni, puoi riutilizzare questo nastro in fase di rimontaggio. In caso contrario, sostituiscilo con un pezzo di nastro isolante.

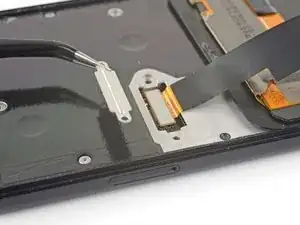

    • Rimuovi le due viti Torx T3 da 4,4 mm che fissano la staffa del connettore dello schermo.

    • Rimuovi la staffa del connettore dello schermo.

    This may be a silly question but how are you able to tell whether the tape is in good condition? Is it based off of how sticky it is after you remove it?

    Sylvia -

    That is a fair question! If the tape is in one piece and is relatively sticky, it can probably be used again.

    Arthur Shi -

    Oops! I forgot to put any tape back. Does this tape have a critical purpose, in other words should I go to the trouble to pry the screen back off and tape it?

    elyze -

    The tape does not serve a critical purpose. If you have already re-sealed your phone, I wouldn’t worry about it.

    Arthur Shi -

    Les vis sont des T4 et non des T3

    Gaëtan PERRIER -

    Bonjour Gaëtan ! Merci pour la remarque. En fait, il y a toujours une certaine tolérance entre le tournevis et la tête de vis. Donc il se peut que la taille supérieure ou inférieure soit plus “confortable” au cas par cas. Bonne réparation !

    Claire Miesch -

    Bonjour,

    Pouvez-vous me conseiller un bon kit de réparation pour mon Google Pixel 3A?

    J'ai peur de me faire arnaquer en achetant un mauvais écran de basse qualité .

    mailsecoursd -

    In 2023, (along with the USB-C port and screen adhesive) this repair kit includes a new piece of black tape to cover the connector bracket.

    nelson -

    Do you sell the 2 4.4mm t3 screws and the screen connector bracket. Or know where I can get it thanks

    Brett Bellesbach -

  12. 1LpxCoCGOb2YFKyK
    1LpxCoCGOb2YFKyK
    KisWpfFOvn3u35XK

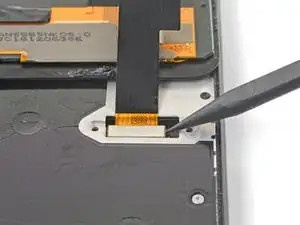

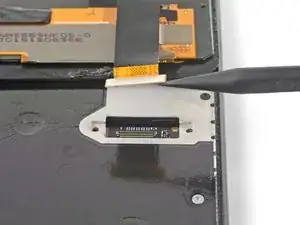

    • Usa la punta di uno spudger per sollevare e disconnettere il cavo flessibile dello schermo.

    • Quando scolleghi dei connettori come questo, stai attento a non interferire con i piccoli componenti sulla superficie che circonda lo zoccolo.

    • Per riconnettere i connettori a pressione come questo, allineali con cura e premili da un lato finché non senti il clic di bloccaggio, quindi ripeti l'operazione dall'altro lato. Non premere in centro. Se il connettore non è perfettamente allineato, i pin possono piegarsi, provocando danni permanenti.

    I had accidentally pressed the power button and the phone was on when connecting the new screen and that broke the board! So make sure the phone is off.

    Diako Mardanbegi -

    hey man think I've just done the same thing :(

    how did you fix it? did it need a new motherboard?

    Ben Willshaw -

    is it okay if I forgot to add the black tape on the connector area???

    Harry Banda -

    When reassembling, before reattaching the connector for the screen flex cable is the time to align the screen cover adhesive sheet onto the perimeter of the plastic mid-frame. Even if one is using the Tesa tape, I suspect aligning it along the edge of the mid-frame would be simpler without the screen and its flex cable obstructing your efforts.

    nelson -

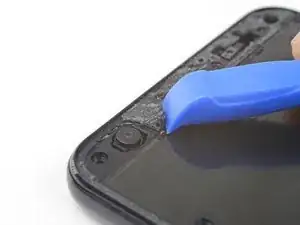

  13. ODdQHEZ2HSon1SkQ
    ODdQHEZ2HSon1SkQ
    DFtWMRU1kdamp2pa

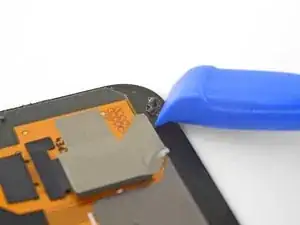

    HAesK3jdCOvXdKZd

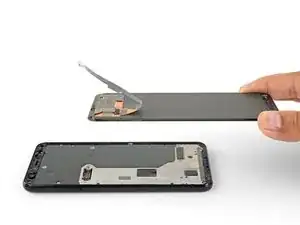

    • Rimuovi lo schermo.

    • Confronta attentamente il tuo schermo sostitutivo con quello originale. Può essere necessario trasferire alcuni componenti (come la griglia dello speaker) nel nuovo schermo.

    • Per rimontare lo schermo:

    • Segui questa guida se stai usando degli adesivi pretagliati.

    • Se invece stai usando del nastro biadesivo come il nastro Tesa, segui questa guida.

    • Durante la procedura di avvio dopo il rimontaggio, lo schermo attraverserà una fase di calibratura. Non toccare lo schermo durante questa fase, in quanto potrebbe causare una calibrazione errata del touch e generare problemi.

    There is a blue plastic tape covering the digitizer and when I try to take it off it rips out something more than just the tape I think it’s pulling the magnet too

    Darien Suarez -

    i had a little plastic piece around the camera (seems to just be a spacer) that i moved to the new screen. had to pry it up with a pick cuz it was stuck down good.

    elyze -

    actually to clarify- i didn’t move the little camera spacer to the new screen- i placed it around the camera on the phone, where there was a little indent for it, and stuck it down with a bit of tesa strip, then applied more tesa strips around the edge of the phone before finally reconnecting and replacing the screen. the little plastic bit i encountered needs to be precisely placed around the camera so would not be a good idea to just stick it to the screen when reinstalling!

    elyze -

    Thanks team! I was able to replace my broken screen with no issues!

    Instead of cutout adhesives or tesa tape, I used B-7000. Painless.

    Appreciate the screen and instructions!

    Jessica Hale -

    Bonjour,

    Pouvez-vous me conseiller un bon kit de réparation pour mon Google Pixel 3A?

    J'ai peur de me faire arnaquer en achetant un mauvais écran de basse qualité .

    Hello . Can you advice me a site where i Can buy a quality screen replacement pack for my Google Pixel 3A?

    There's a lot of rip off on internet and id like to get a good pack and a quality screen .

    Bichette Laterreur -

    Hello! We currently sell a replacement screen. However, I’m not sure if it is available yet internationally.

    Arthur Shi -

    I have a quick question, so I haven’t done anything yet because I only just ordered my repair kit, but is it possible to replace the battery without having to replace the display ?

    Braeden -

    Hi Braeden!

    Yes, it is definitely possible to replace the battery without replacing the display. With that said, the initial entry steps can be pretty tricky. Before you begin, look very closely over the display to see if you can see any micro-fractures. If you see any, you will most likely crack the screen when you try to remove it. Take your time and apply a heated iOpener often. Good luck!

    Arthur Shi -

    I forgot to order the tape when getting my replacement USB port, so I ended up putting the screen back on without any tape and using regular clear tape on the outside of the phone to keep the screen from falling off. It’s less waterproof, but it’ll do the job until the right part arrives.

    E. Dunham -

    Speaker mesh appeared to already be in place on my replacement screen, so I did not transfer this over from my old screen. That was a huge mistake, sounds were garbled above about 30% volume. Make sure you do this part!

    Evan Heisman -

    Shall I place the adhesive onto the screen or onto the body when placing the new screen? It is not clear from the guides.

    HoundRock -

    I tried the replacement after watching this and many other videos. I purchased a working Pixel 3a and removed it to put onto my old Pixel 3a. The screen is not turning on on either devices now, old or new. The device is turning on because I can feel vibrations. What do you think the problem is?

    InnLing Eng -

Conclusione

Se il tuo Pixel non si accende dopo aver sostituito lo schermo, c'è la possibilità che il tuo dispositivo si sia silenziosamente acceso quando hai riconnesso la batteria. Tieni premuto il pulsante di accensione per un paio di secondi finché il telefono non vibra. Ricconnetti lo schermo e riprova.

Per rimontare il dispositivo, segui queste istruzioni in ordine inverso.

Porta i tuoi rifiuti elettronici a un riciclatore certificato R2 o e-Stewards.
