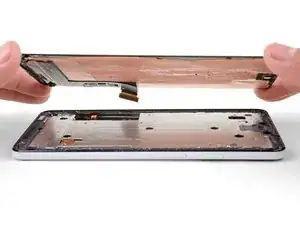

Screen Assembly

Screen Assembly

 en

Strumenti

Questi sono alcuni strumenti di uso comune usati per lavorare su questo dispositivo. Potrebbe non essere necessario ogni strumento per ogni procedura.

Background

Announced on October 9, 2018, and released on October 18, 2018, the Google Pixel 3 XL is Google's third generation, now with wireless charging and a notched display.

The Google Pixel 3 XL comes with the Android 9 Pie operating system. Some of the features of the phone include Active Edge which launches Google Assistant when the phone is squeezed, USB Type-C quick charging, and free unlimited storage for media taken on the phone.

Identification

Pixel 3 XL can be identified by its model number G013C. The larger of Google's flagship smartphones, it features a 6.3-inch OLED display with 523 ppi. Its brightly colored power button, rear-mounted fingerprint sensor, and glass backing with a partial matte finish are all key identifiers.

Technical Specifications

CPU: Qualcomm Snapdragon 845

Memory: 4 GB LPDDR4x RAM

Storage: 64 GB or 128 GB

Display:

  • 6.3 inches diagonal with radiused corners
  • QHD+ (2960 x 1440 resolution) OLED at 523 ppi
  • Corning Gorilla Glass 5
  • 18:9 aspect ratio

Cameras:

  • Main Camera: 12.2 megapixel, f/1.8 aperture, 1.4μm pixels, autofocus with dual pixel phase detection AF, OIS
  • Dual Front Cameras:
    • 8 megapixel, f/1.8 aperture, wide angle, phase detection AF
    • 8 megapixel, f/2.2 aperture, ultra-wide angle, fixed focus

Ports and Connectivity:

  • Wi-Fi 2.4G + 5GHz 802.11 a/b/g/n/ac 2x2 MIMO
  • Bluetooth 5.0 + LE
  • NFC
  • GPS + GLONASS
  • Supports up to CAT 16 (800Mbps DL / 75Mbps UL), 3x DL CA, 4x4 MIMO, 256-QAM DL and 64-QAM UL depending on carrier support
  • USB Type-C
  • USB 3.1 Gen 1 (10.0 Gb/s)
  • Single Nano SIM or eSIM
  • Wireless charging

Battery: 3,430 mAh battery

Dimensions:

  • Size: 158 x 76.7 x 7.9 mm (6.22 x 3.02 x 0.31 in)
  • Weight: 184 g (6.49 oz)
